Tulie

Description:

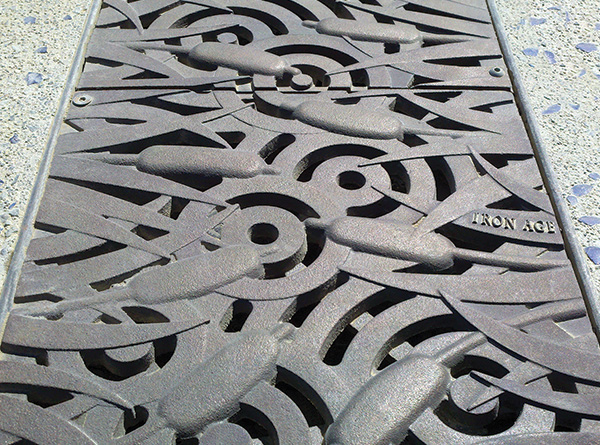

Named for the sculpted reeds and rushes overlaying our signature Oblio pattern, Tulie grates bring a natural, botanical appeal to any built environment.





Size Options:
Similar Products:

Detailed Specifications:

Name / Design Tulie 12" Wide, 23'-9" CLR
Product ID TUR12-20I9924
Dimensions 11.88" x 19.87" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 20
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Tulie 12" Wide, 30'-0" CLR
Product ID TUR12-20I9930
Dimensions 11.88" x 20.20" x .75"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 23.97
Free Drain Area 10.56%
Gallons Per Minute (GPM) 32.64
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

Photo Gallery:

?????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

Tulie 12″ x 20″ radiused grate pictured in our baked on oil finish, arrayed with various radii. Project: Philip S Raine Rest Area, Tipton, CA. (Shown 10 years after installation.)


Download photo
Tulie 12in (3) E

Tulie 12″ x 20″ radiused grate pictured in our baked-on oil finish, arrayed with various radii. Project: Philip S Raine Rest Area, Tipton, CA. (Shown newly installed.)


Download photo
Tulie 12in (4) E

Tulie 12″ x 20″ radiused grate pictured in our baked-on oil finish, arrayed with various radii. Project: Philip S Raine Rest Area, Tipton, CA. (Shown newly installed.)


Download photo
Tulie 12in (2) E

Tulie 12″ x 20″ radiused grate pictured in our baked-on oil finish, arrayed with various radii. Project: Philip S Raine Rest Area, Tipton, CA. (Shown newly installed.)


Download photo
Tulie 12in (5) E

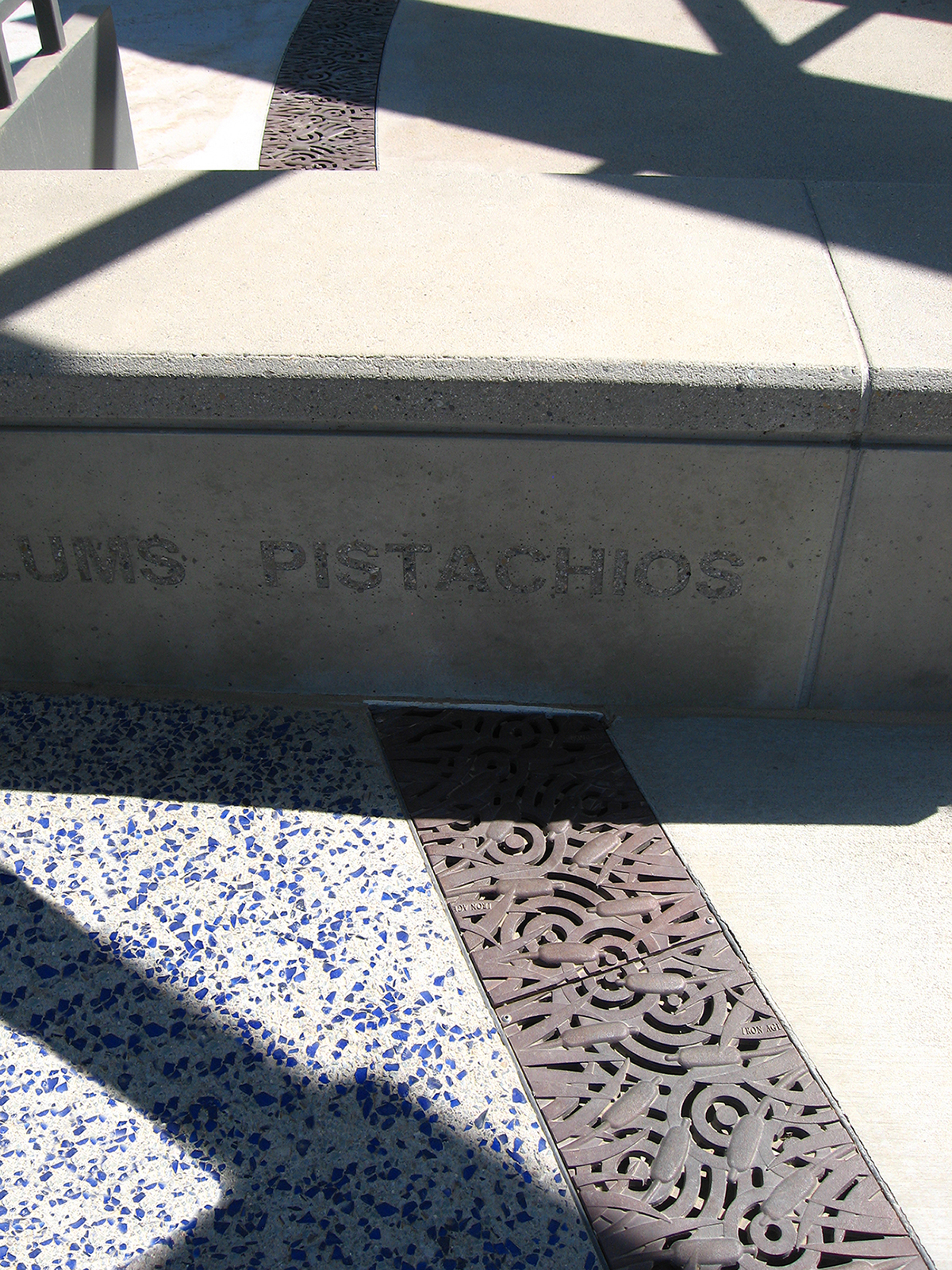

Tulie 12″ x 20″ radiused grate pictured in our baked-on oil finish, arrayed with various radii. Project: Philip S Raine Rest Area, Tipton, CA. (Shown newly installed.)


Download photo
Tulie 12in (6) E

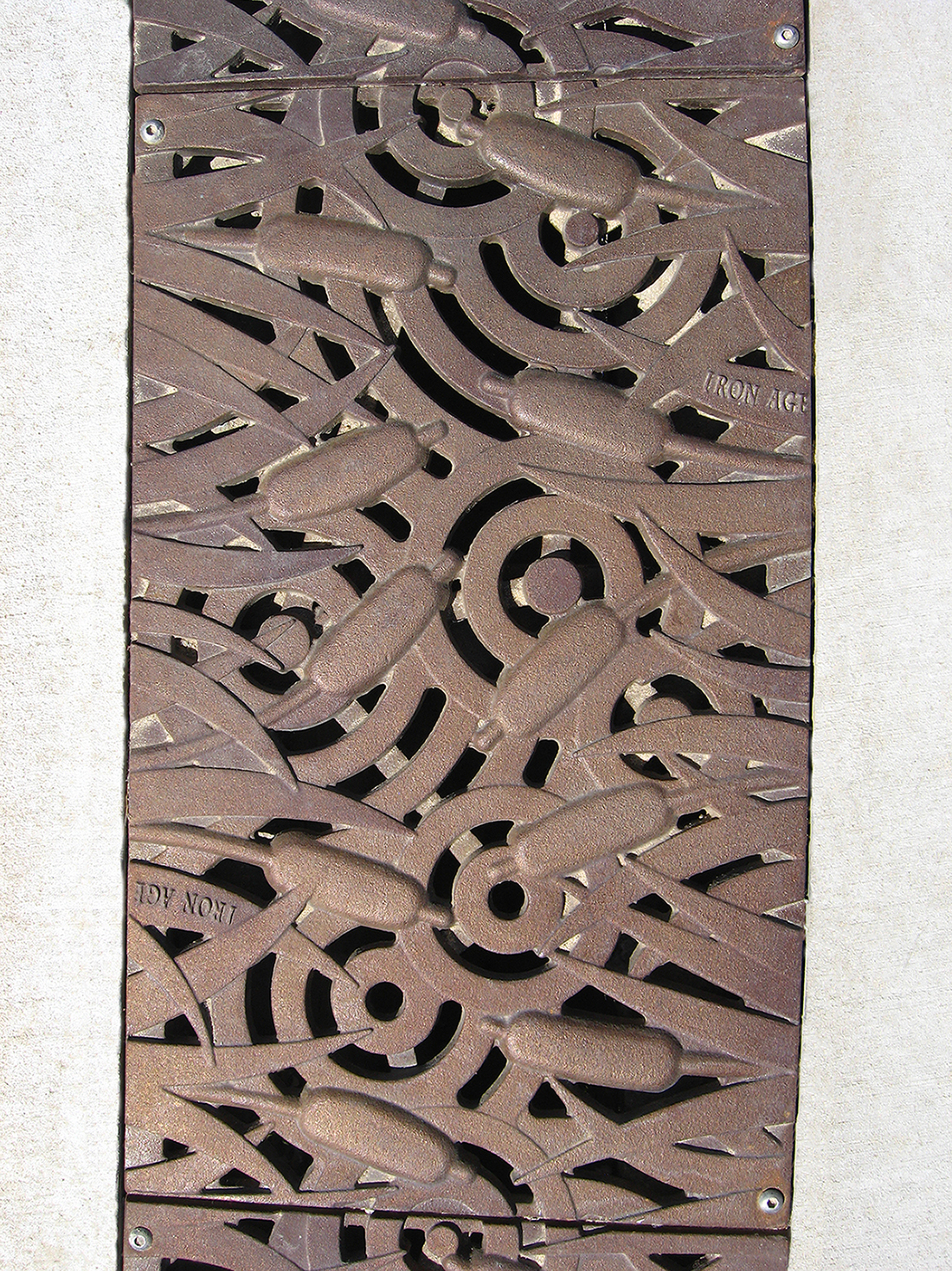

Tulie 12″ x 20″ radiused grate pictured in our baked-on oil finish, arrayed with various radii. Project: Philip S Raine Rest Area, Tipton, CA. (Shown newly installed.)


Download photo
Tulie 12in E

Tulie 12″ x 20″ radiused grate pictured in our baked-on oil finish, arrayed with various radii. Project: Philip S Raine Rest Area, Tipton, CA. (Shown newly installed.)


Download photo
