Greek Key

Description:

Greek Key was the most important symbol in Ancient Greece, representing infinity or the eternal flow of life. Our take on this classical motif showcases the stunning dimension and depth characteristic of all our cast metal products.



Size Options:
Similar Products:

Detailed Specifications:

Name / Design Greek Key 5" x 20"
Product ID GA5-20I21
Dimensions 4.81" x 19.44" x .81"
Drain Manufacturer
ABT®
ACO™
MEA®
Fits ABT® PolyDrain®
ACO™ K100, K100S, KS100
MEA® 1000 Series
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 11
Free Drain Area 17%
Gallons Per Minute (GPM) 21.27
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-007-080
Name / Design Greek Key 9" x 20"
Product ID GM9-20I22
Dimensions 8.78" x 19.61" x .75"
Drain Manufacturer
MEA®
Fits MEA® EN2000
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 20.07
Free Drain Area 20.62%
Gallons Per Minute (GPM) 27.02
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-247-085

Photo Gallery:

Raw cast iron trench grate in Greek Key pattern from Iron Age Designs. Installed in residential driveway.

Greek Key 5″ x 20″ trench grate, raw cast iron. PROJECT: Residential driveway. LOCATION: Seattle, WA.


Download photo
Raw cast iron trench grate in Greek Key pattern from Iron Age Designs. Installed in residential driveway.

Greek Key 5″ x 20″ trench grate, raw cast iron. PROJECT: Residential driveway. LOCATION: Seattle, WA.


Download photo

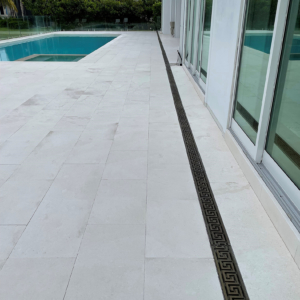

Decorative cast bronze trench grate in Greek Key pattern installed on pool patio

Greek Key 5″ x 20″ trench grate, raw cast bronze. PROJECT: Residential pool deck.


Download photo
Decorative cast bronze trench grate in Greek Key pattern installed on pool patio

Greek Key 5″ x 20″ trench grate, raw cast bronze. PROJECT: Residential pool deck.


Download photo
OLYMPUS DIGITAL CAMERA

Greek Key 5″ x 20″ trench grate, raw cast ductile iron. PROJECT: Church Plaza. LOCATION: Seattle Washington.


Download photo
OLYMPUS DIGITAL CAMERA

Greek Key 5″ x 20″ trench grate, raw cast ductile iron. PROJECT: Church Plaza. LOCATION: Seattle Washington.


Download photo
greek-key-5-x-20-e

Greek Key 5″ x 20″ trench grate, raw cast ductile iron.


Download photo
greek-key-5-x-20-wo-e

Greek Key 5″ x 20″ trench grate, cast ductile iron with our baked on oil finish.


Download photo
Picture 22

Greek Key 9″ x 20″ trench grate, raw cast ductile iron. Pictured in the compatible drain body MEA D400/E600, sold by others.


Download photo
