Carbochon

Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Carbochon 3" x 14"
Product ID	CN3-14I01
Dimensions	2.81" x 14.09" x .28"
Drain Manufacturer	NDS®
Fits	NDS® Mini-Channel
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	3
Free Drain Area	25%
Gallons Per Minute (GPM)	13.76
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 1-970-774

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

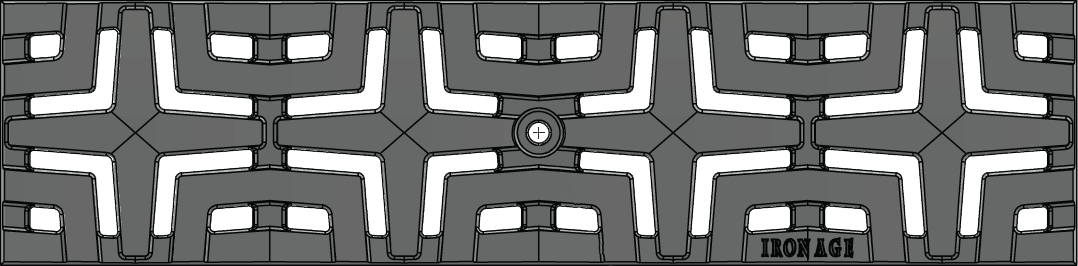

Name / Design	Carbochon 5" x 20"
Product ID	CAA5-20I21
Dimensions	4.81" x 19.56" x .81"
Drain Manufacturer	ABT® ACO™ MEA®
Fits	ABT® PolyDrain® ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	11.56
Free Drain Area	19.7%
Gallons Per Minute (GPM)	24.25
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-007-335

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Carbochon 8" x 20"
Product ID	CN8-20I04
Dimensions	7.88" x 19.63" x .81"
Drain Manufacturer	NDS®
Fits	NDS® 8" Pro Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	17.64
Free Drain Area	15.86%
Gallons Per Minute (GPM)	32.11
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-159-699

Photo Gallery:

Carbochon 3″x 14″ trench grate, raw cast ductile iron, newly installed.

Download photo

Carbochon 3″x14″ trench grate, raw cast ductile iron, newly installed.

Download photo

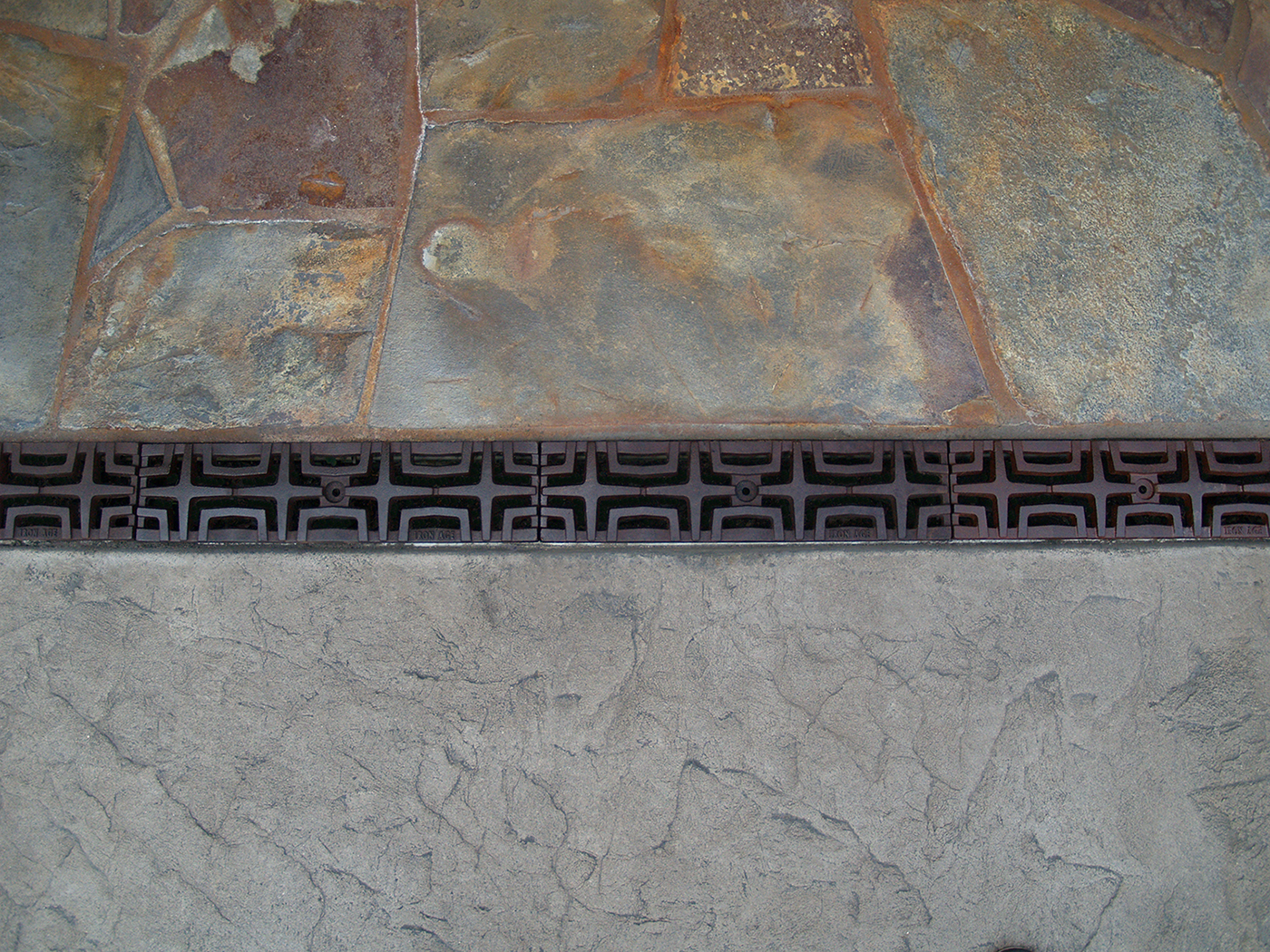

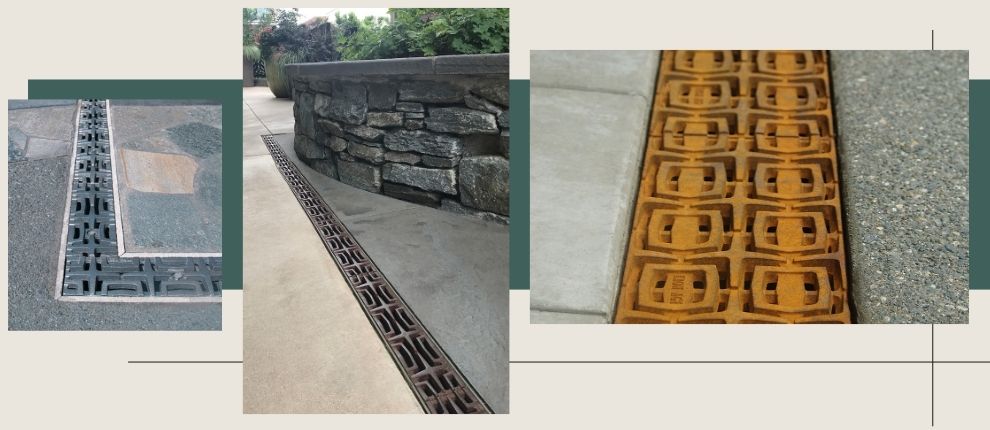

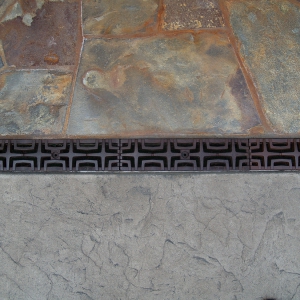

Decorative cast iron trench grate in Carbochon pattern, installed in pavers.

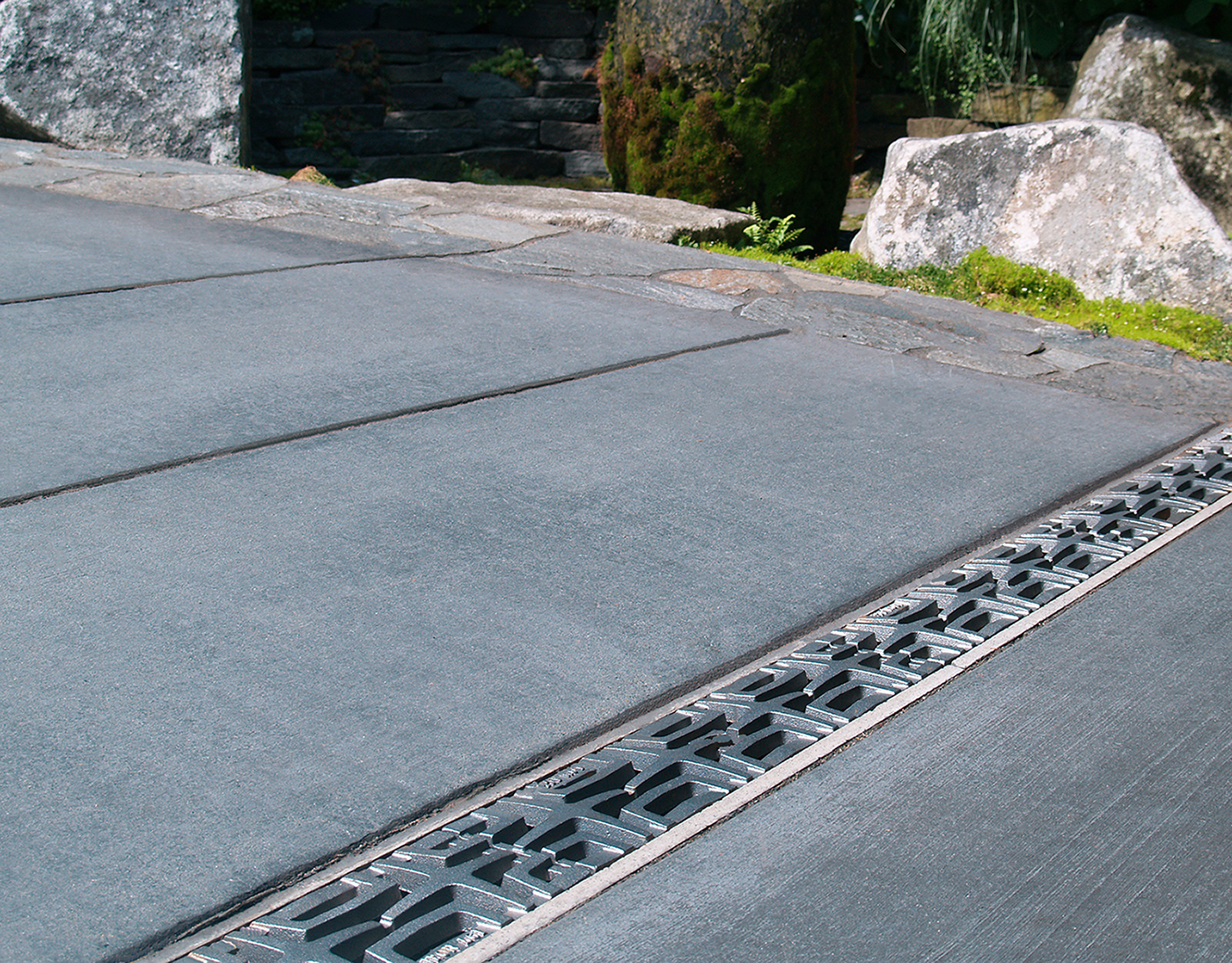

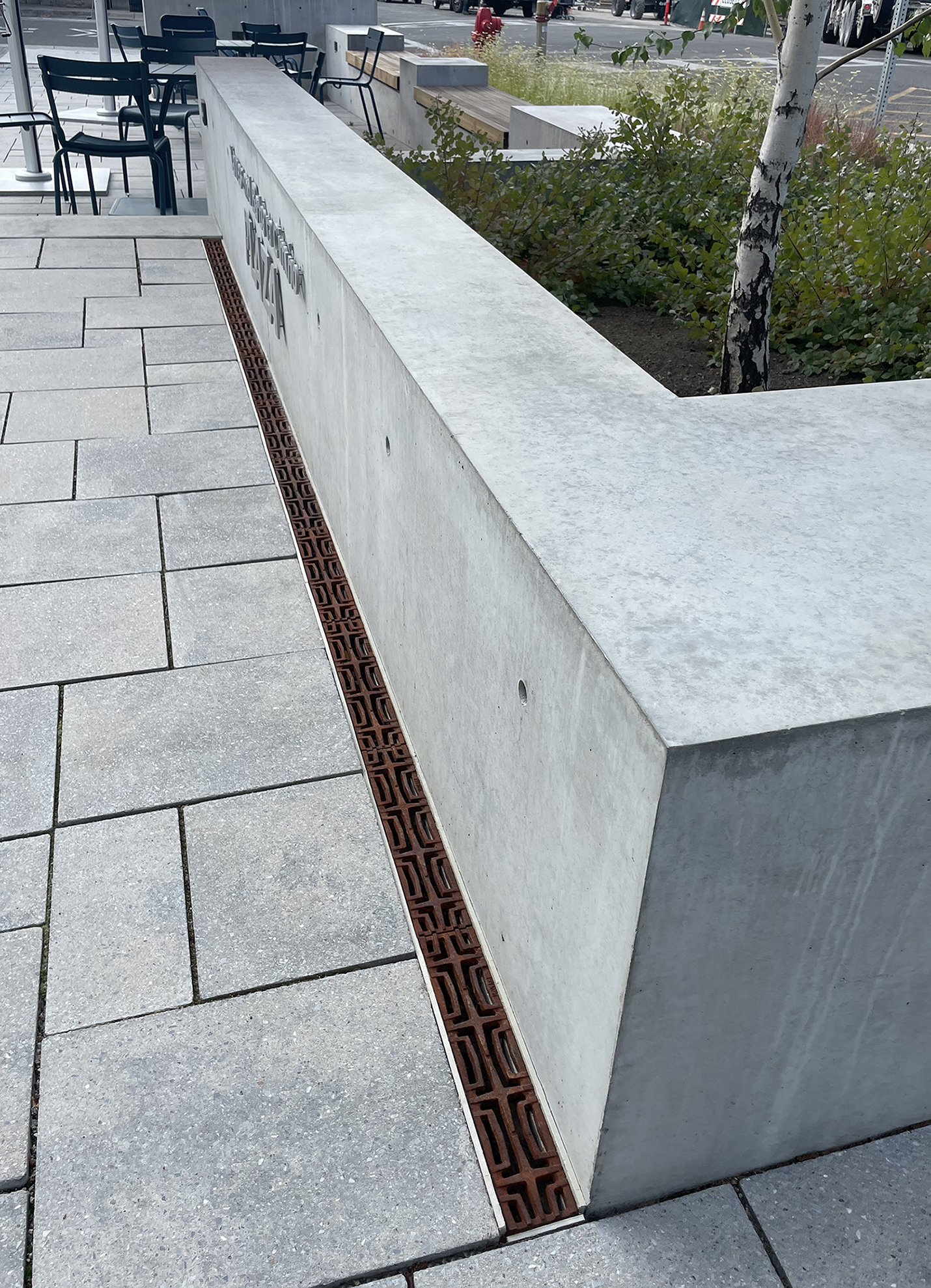

Carbochon 5″ x 20″ trench grate, raw cast ductile iron. DESIGN: Landwork Studio LLC. PROJECT: The Community Library. LOCATION: Ketchum, ID.

Download photo

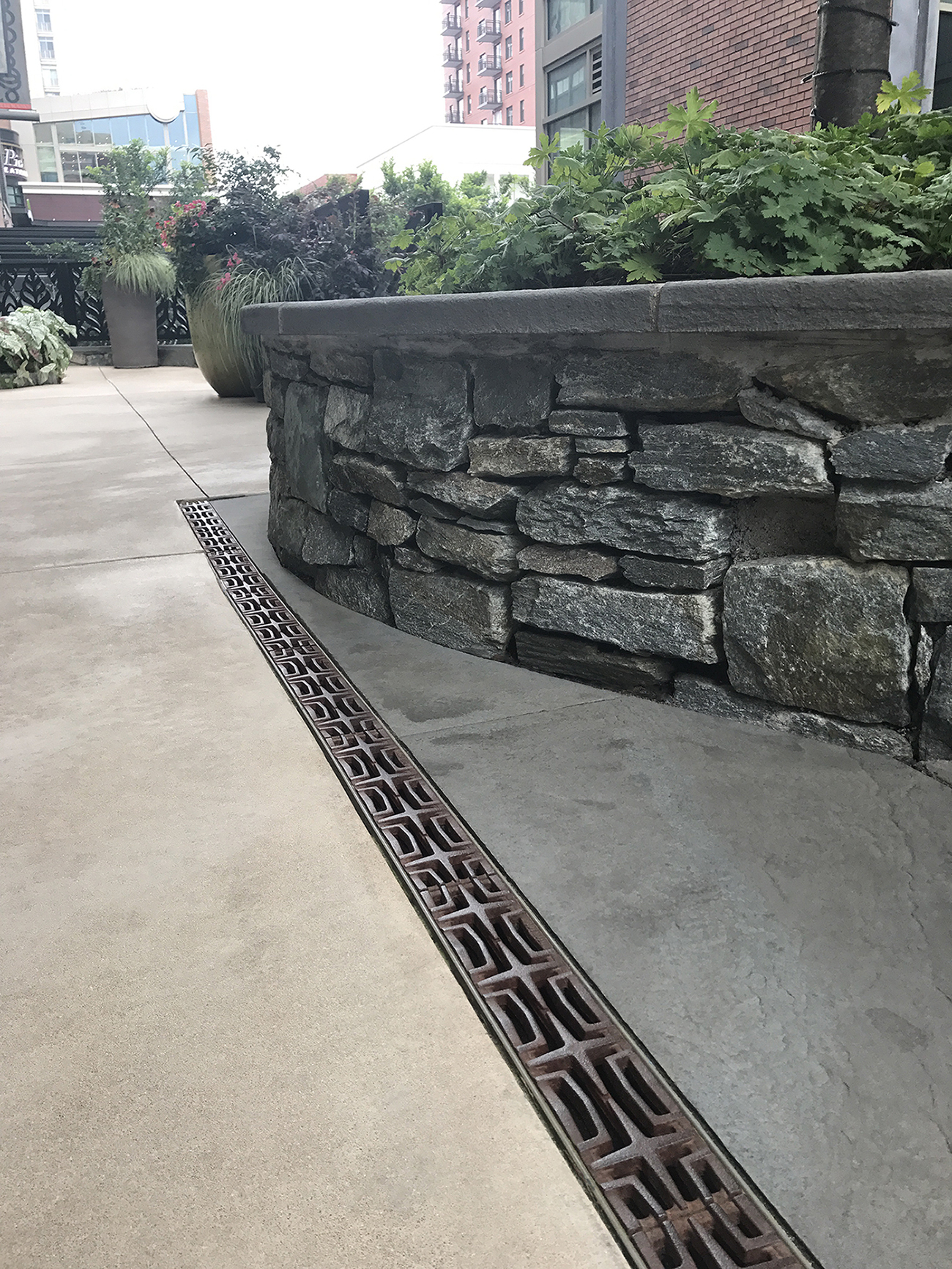

Carbochon 5″ x 20″ trench grate, cast ductile iron with baked-on-oil Finish. DESIGN: Clinton + Ries Landscape Architects. PROJECT: Pike & Rose. LOCATION: North Bethesda, MD.

Download photo

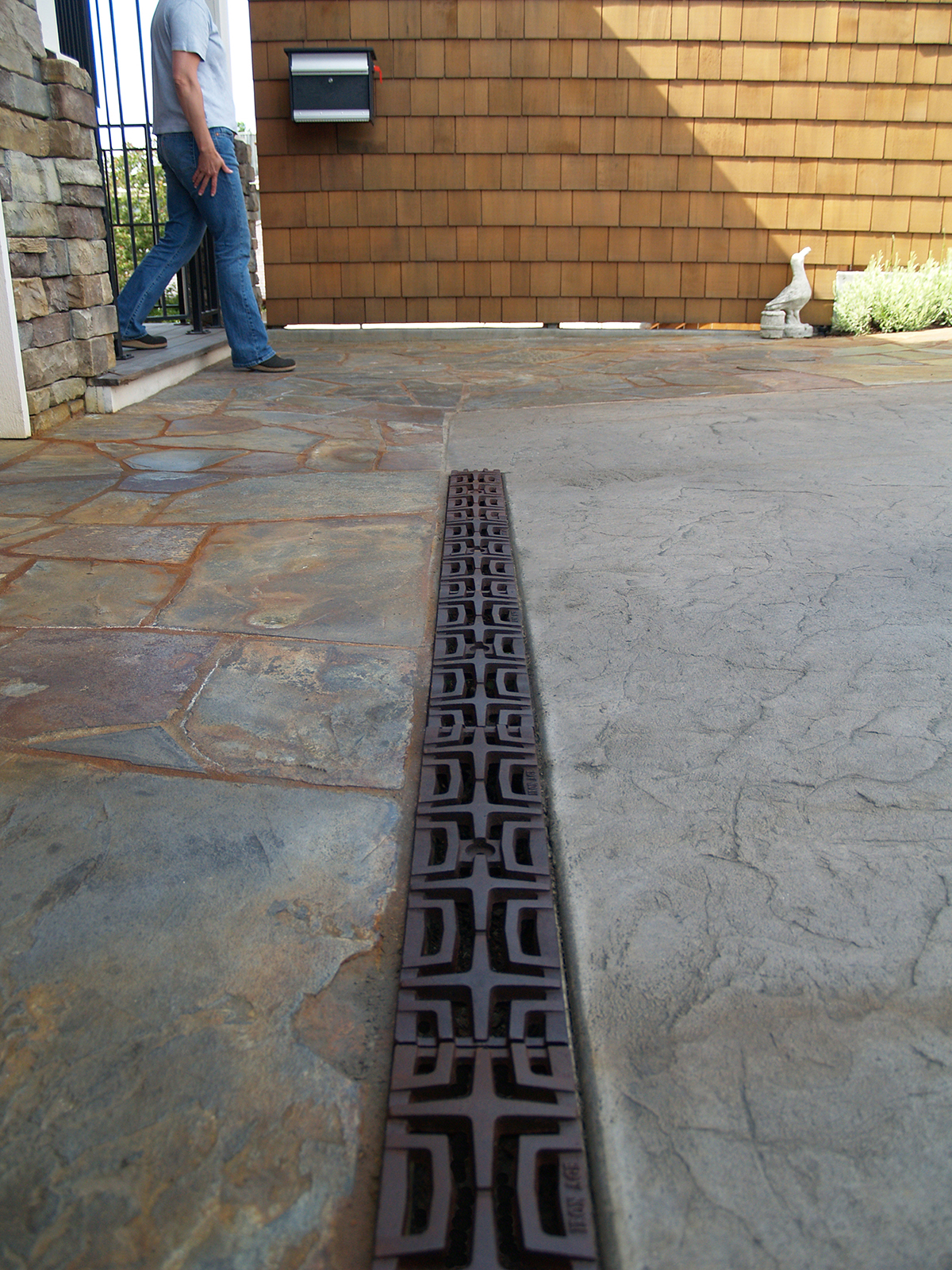

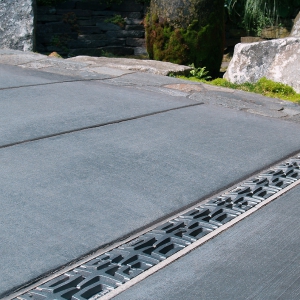

Decorative cast iron trench grate in Carbochon pattern, installed in concrete driveway.

Carbochon 5″ x 20″ trench grate. Raw cast ductile iron. Shown 15 years after installation. (New installation photos are below). PROJECT: Canlis Restaurant. LOCATION: Seattle, WA.

Download photo

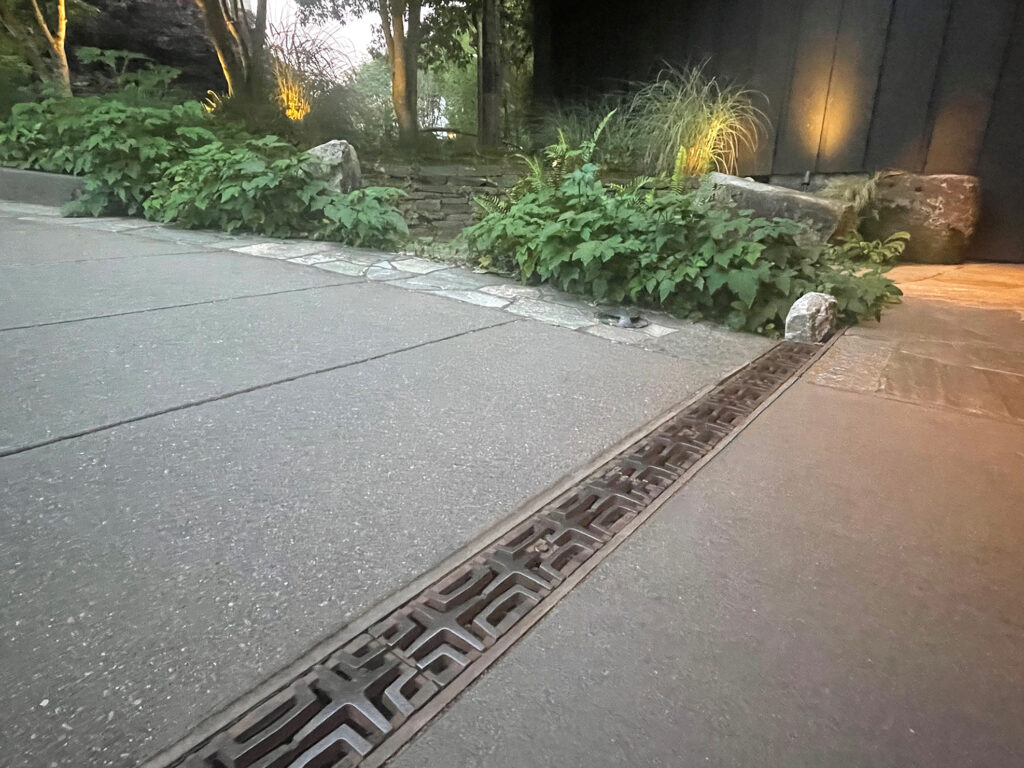

Carbochon 5″ x 20″ trench grate. Raw cast ductile iron. Shown newly installed. (Previous photo taken 15 years after installation.). PROJECT: Canlis Restaurant. LOCATION: Seattle, WA.

Download photo

Carbochon 5″ x 20″ trench grate. Raw cast ductile iron. Shown newly installed. PROJECT: Canlis Restaurant. LOCATION: Seattle, WA.

Download photo

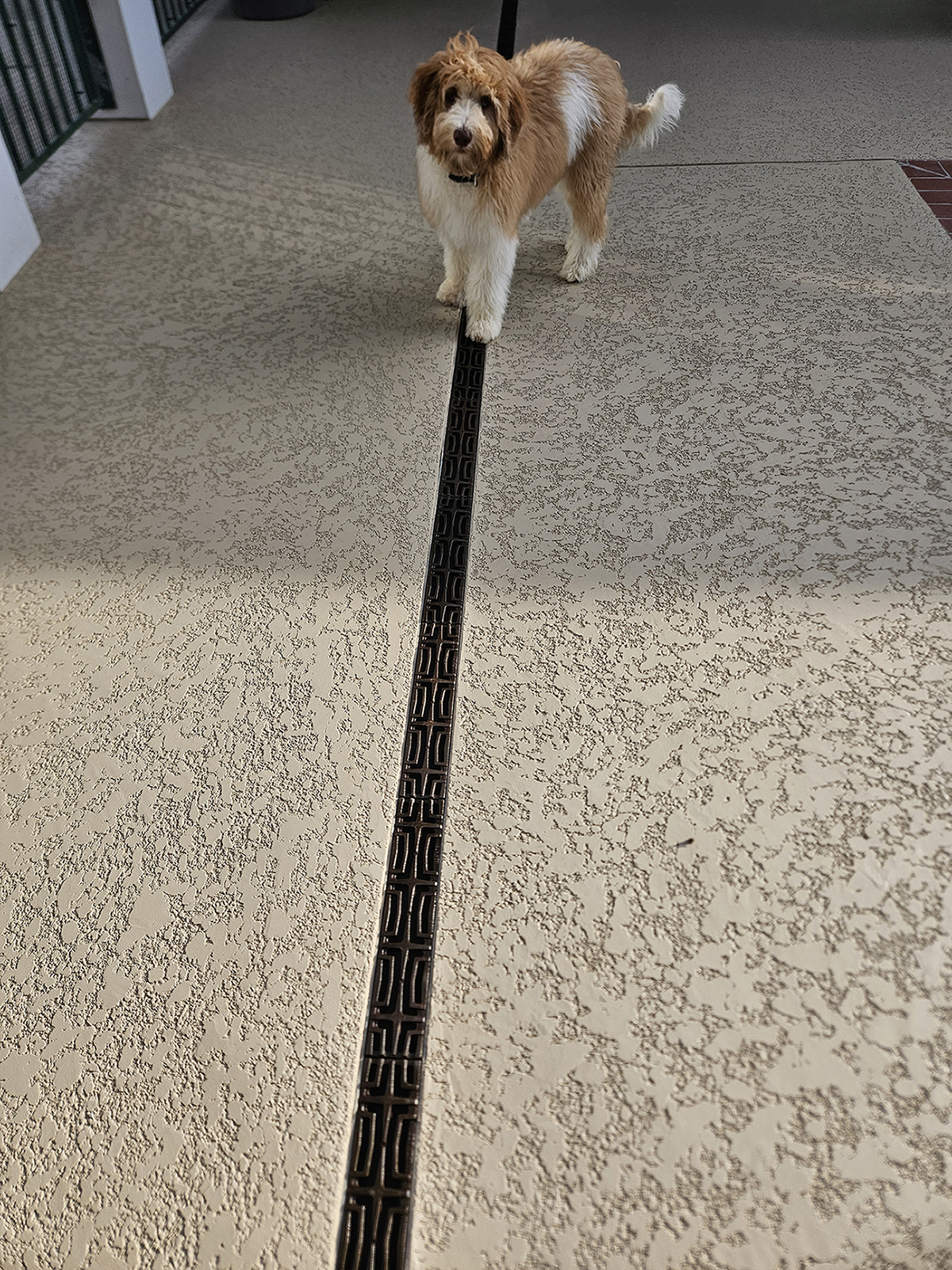

Carbochon 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. PROJECT: Residential Pool Deck. LOCATION: Beaumont, TX.

Download photo

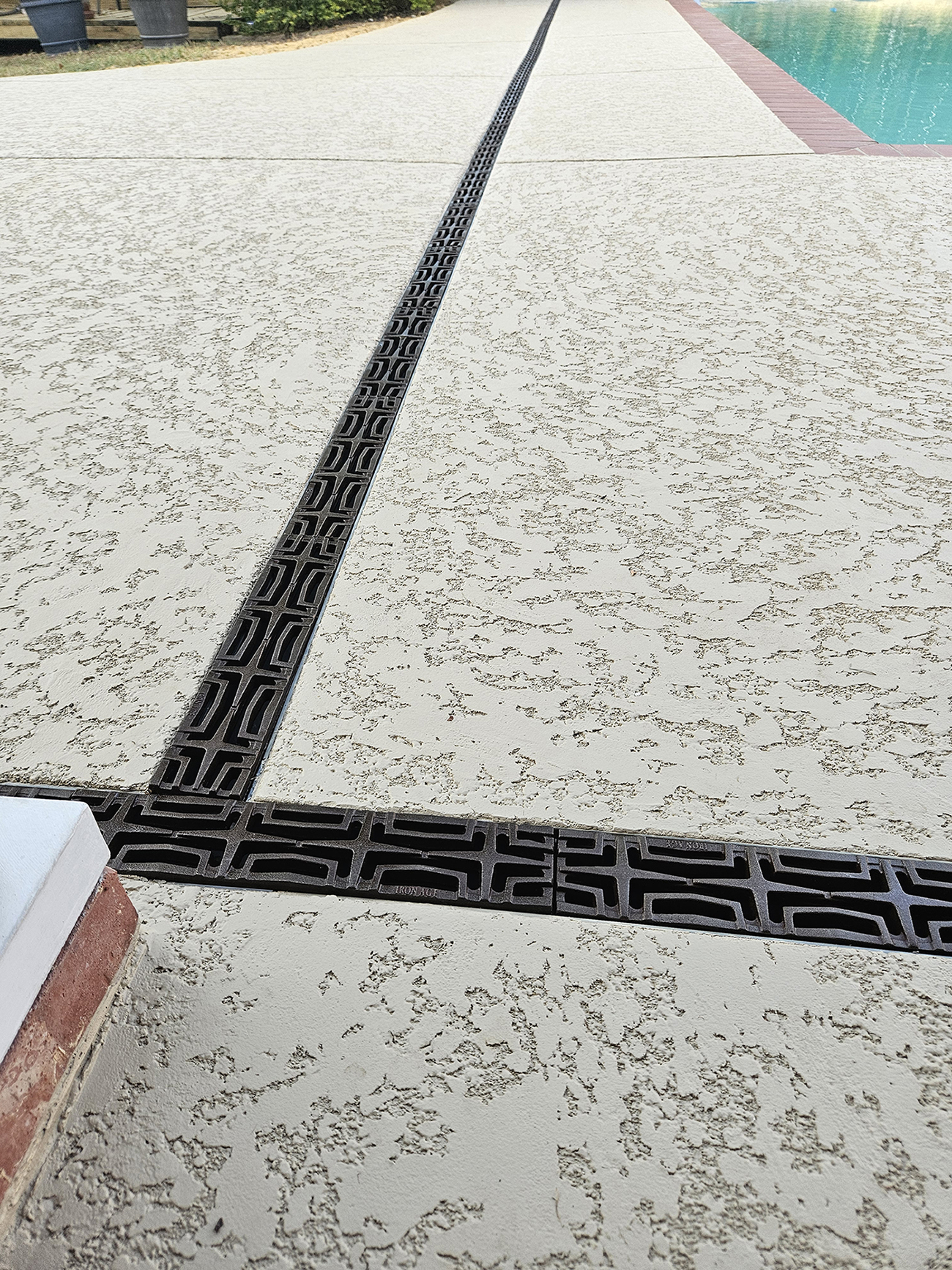

Carbochon 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. PROJECT: Residential Pool Deck. LOCATION: Beaumont, TX.

Download photo

Carbochon 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. PROJECT: Residential Pool Deck. LOCATION: Beaumont, TX.

Download photo

Carbochon 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. Project Location: Seattle, WA.

Download photo

Carbochon 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. Project Location: Seattle, WA.

Download photo

Carbochon 5″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. Project Location: Seattle, WA.

Download photo

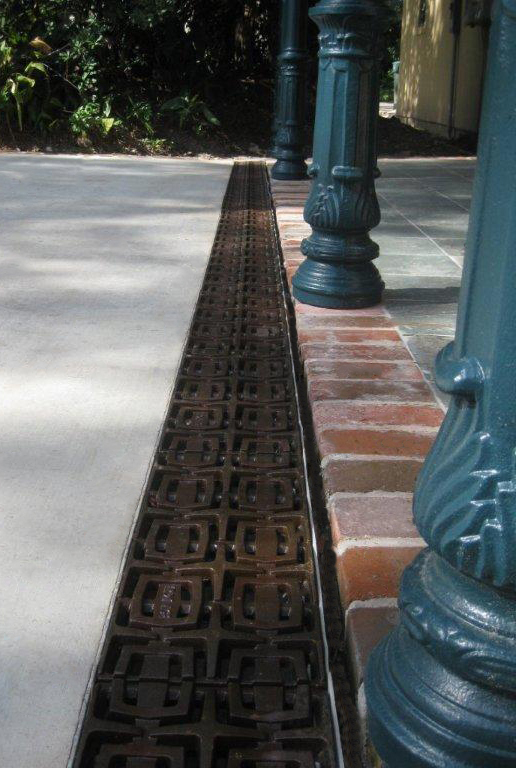

Carbochon 8″ x 20″ trench grate, cast ductile iron with baked-on-oil finish. Project Location: Residence, Beaumont, TX.

Download photo

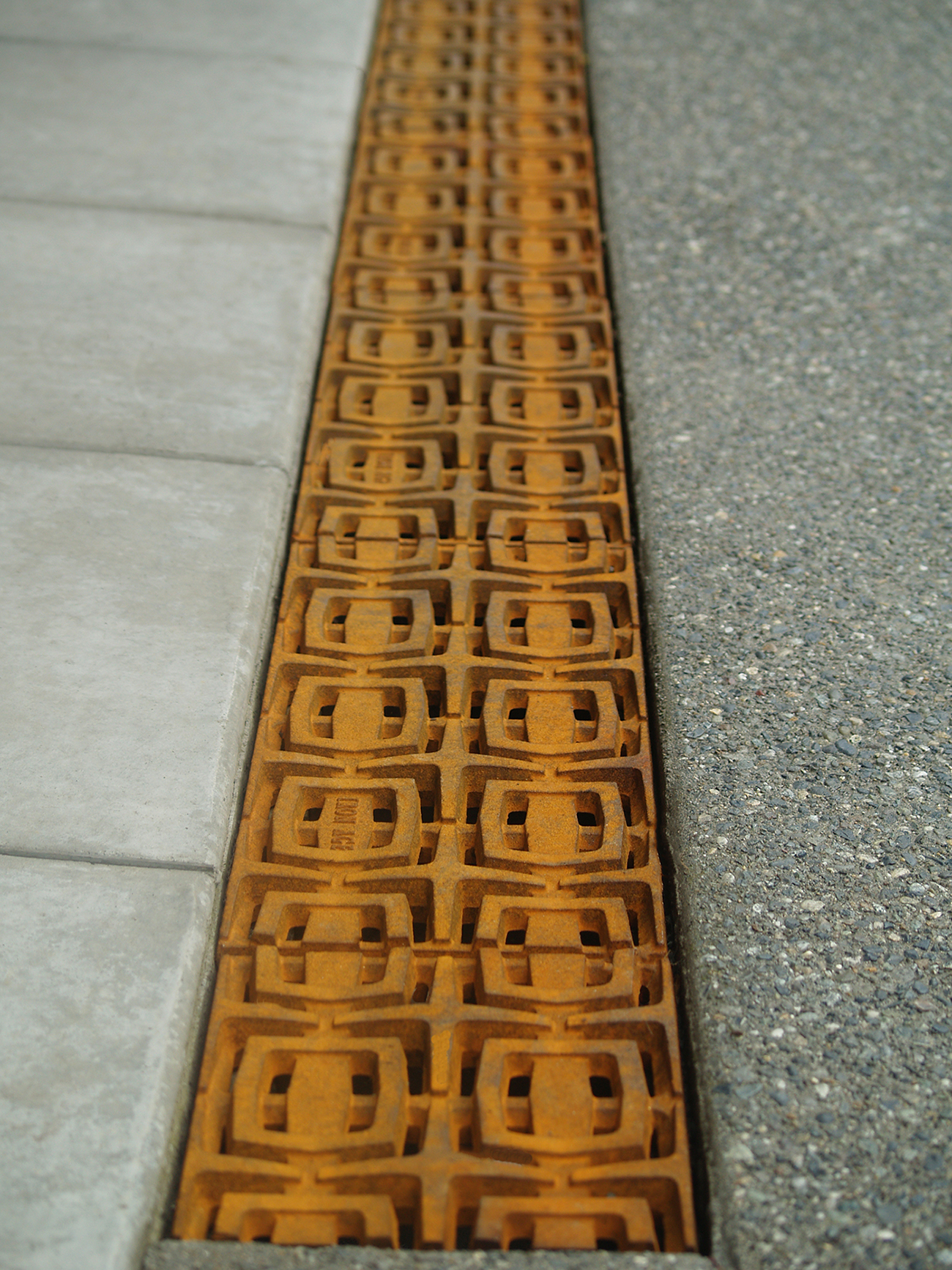

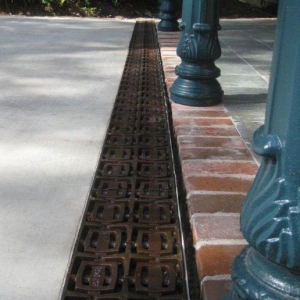

Carbochon 8″ x 20″ trench grate, raw cast ductile iron. Project Location: AZ.

Download photo

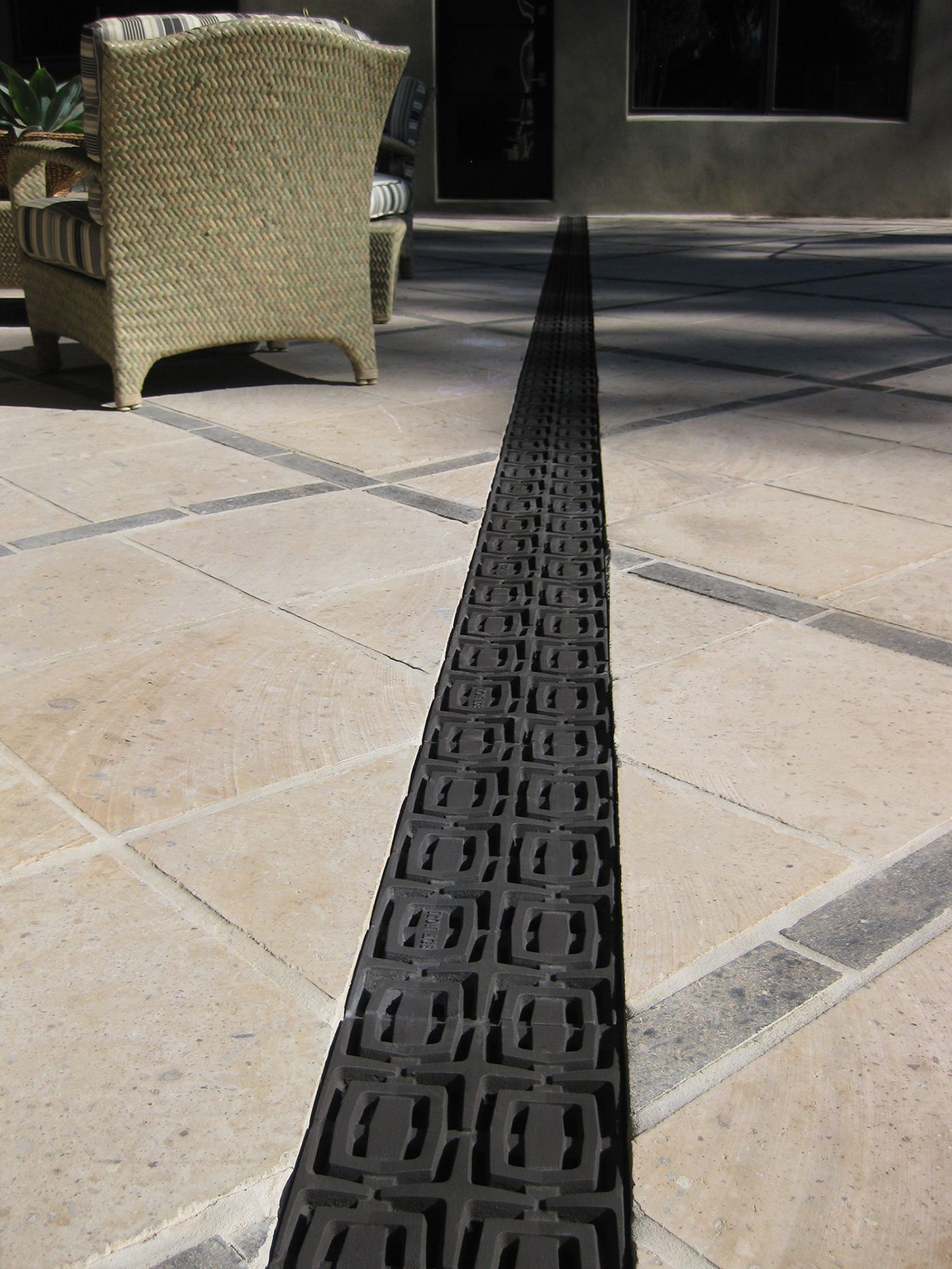

Carbochon 8″ x 20″ trench grate, raw cast ductile iron.

Download photo
