Divisadero

Description:

With concentric circles in the center radiating outward to increasingly squared-off versions of themselves, our Divisadero pattern is a modernist take on traditional design.









Detailed Specifications:

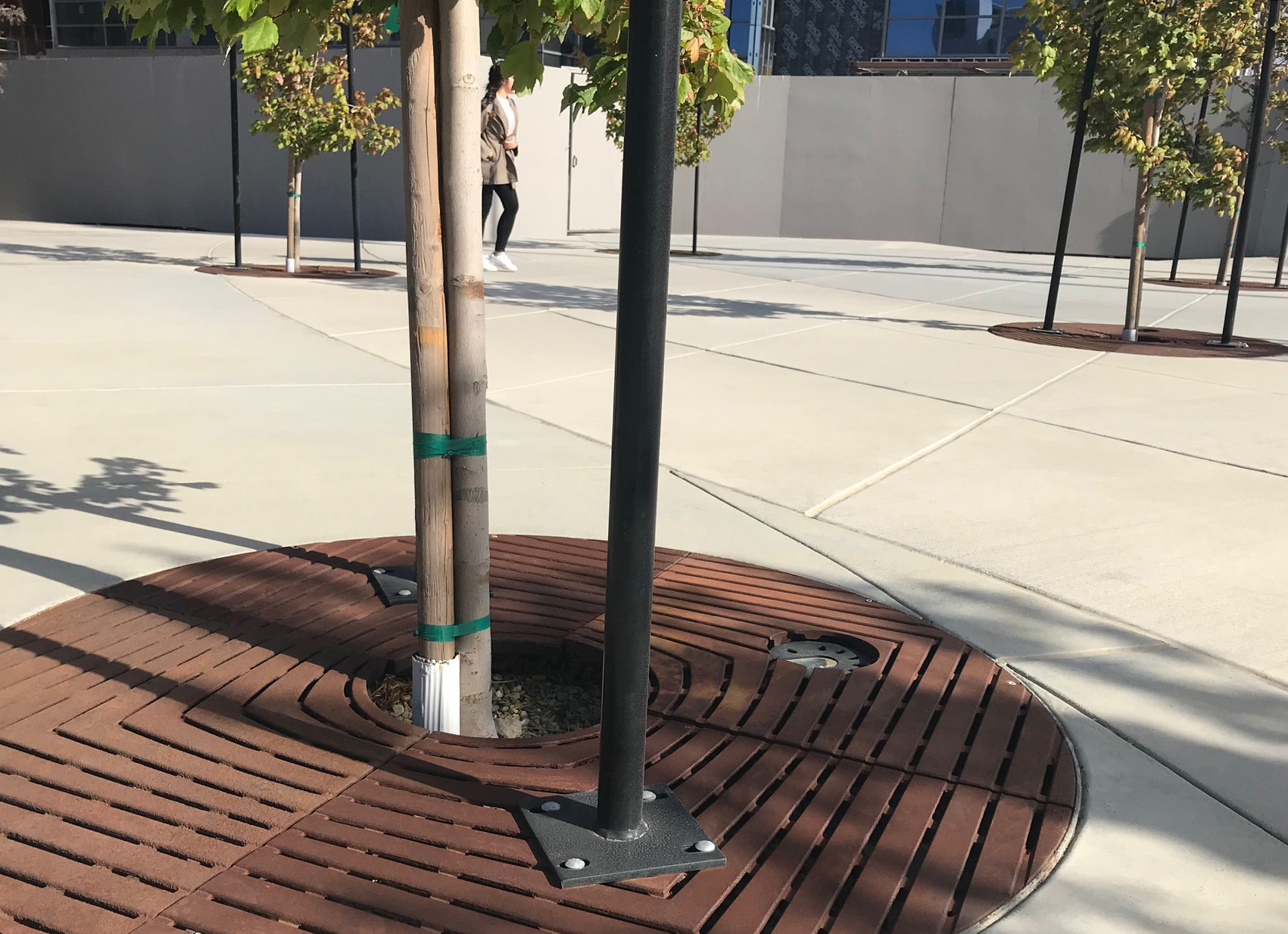

Name / Design Divisadero 5' Dia.
Product ID DIX60diaI99TG
Dimensions 59.81" Dia. x 1.25"
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 278.8
Free Drain Area 16.87%
Gallons Per Minute (GPM) 585.76
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-159-769

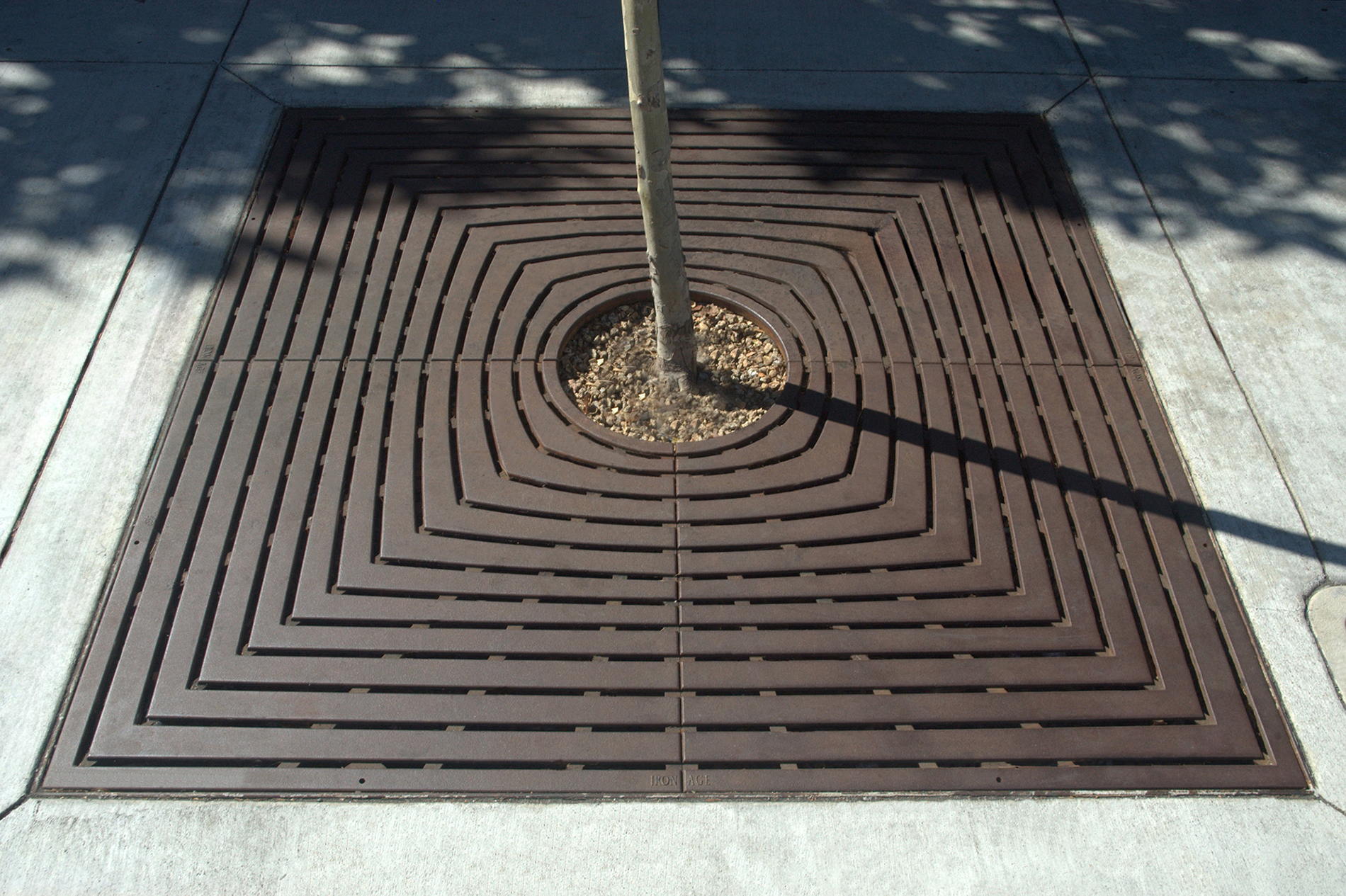

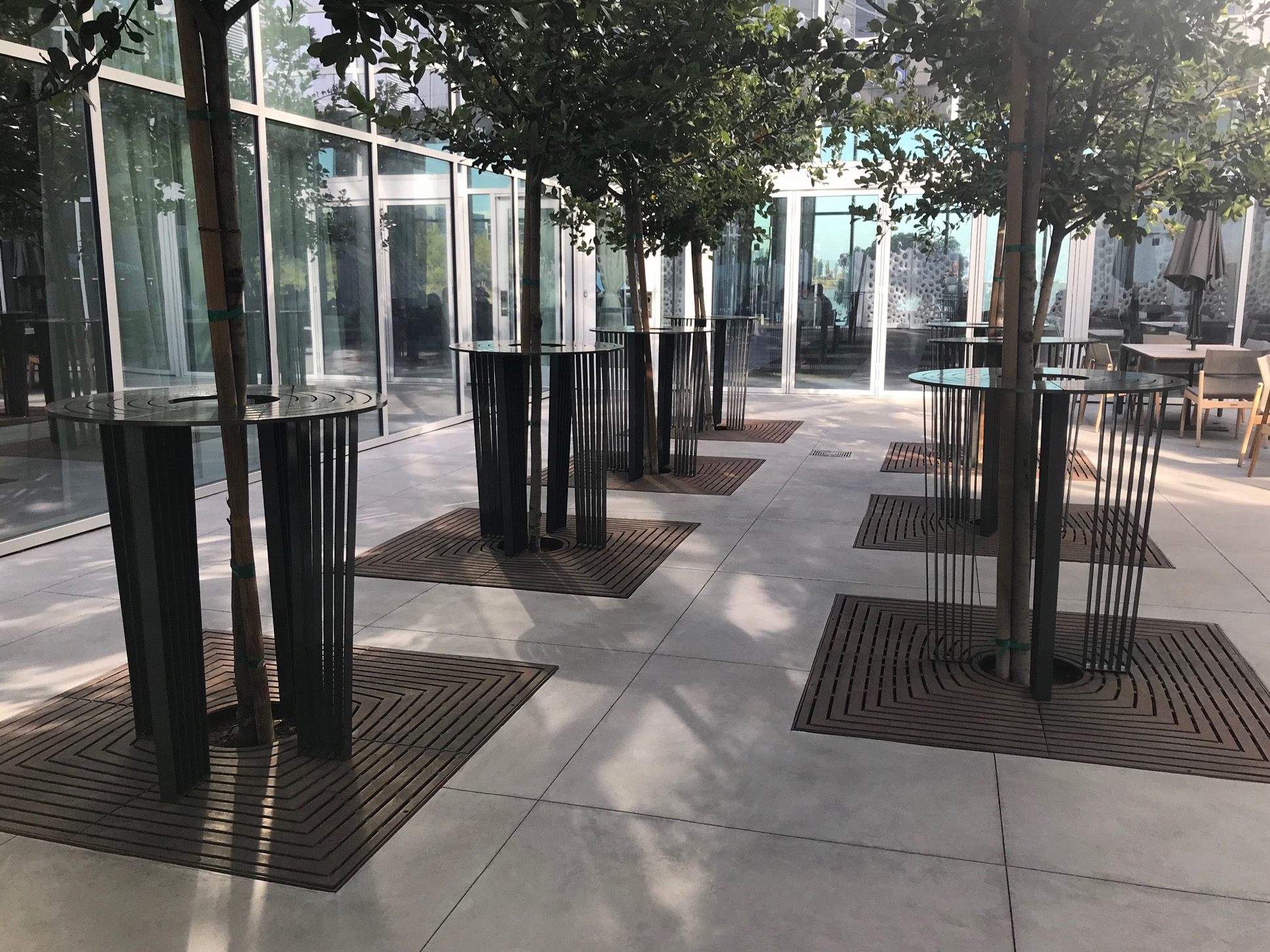

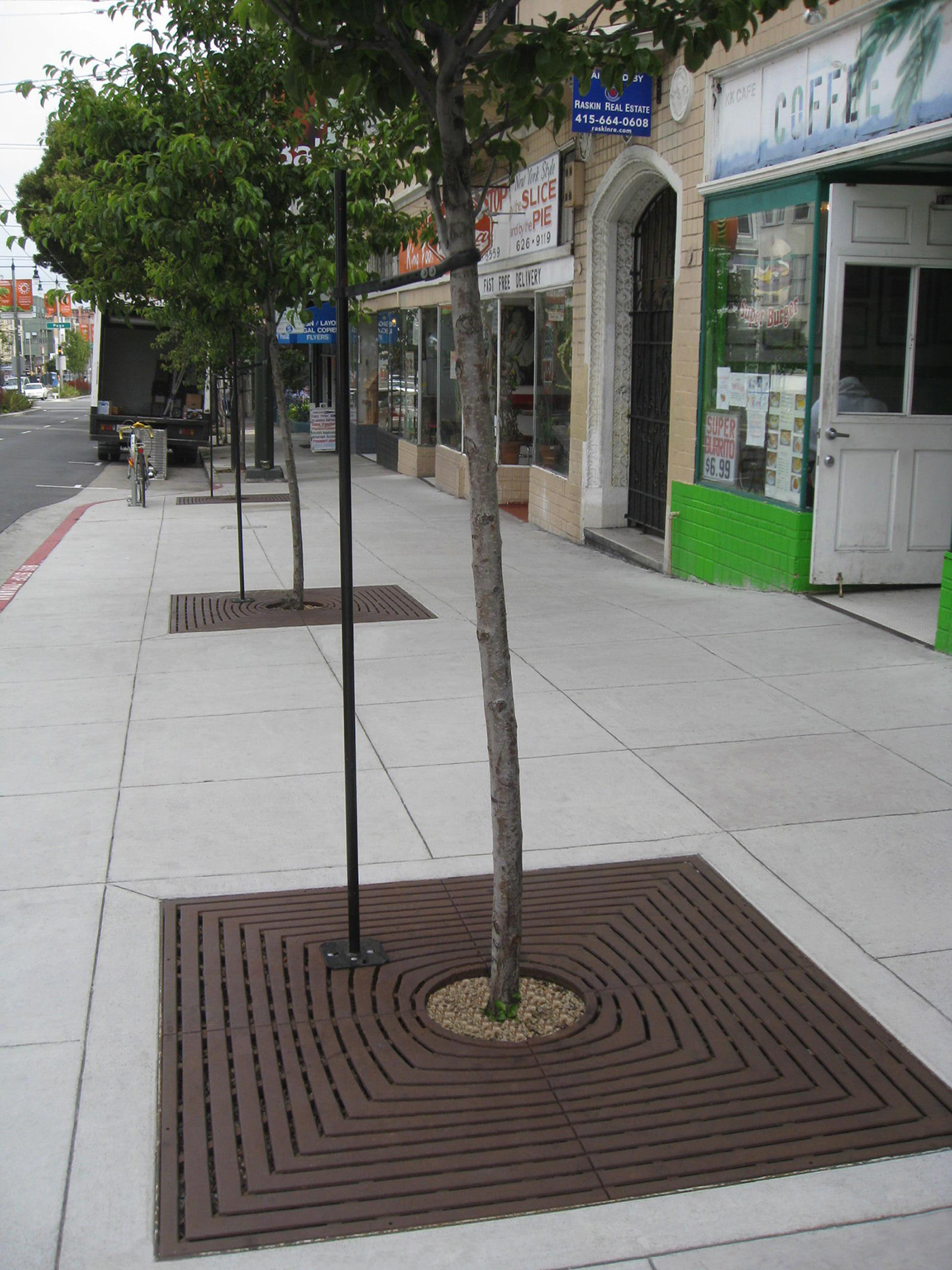

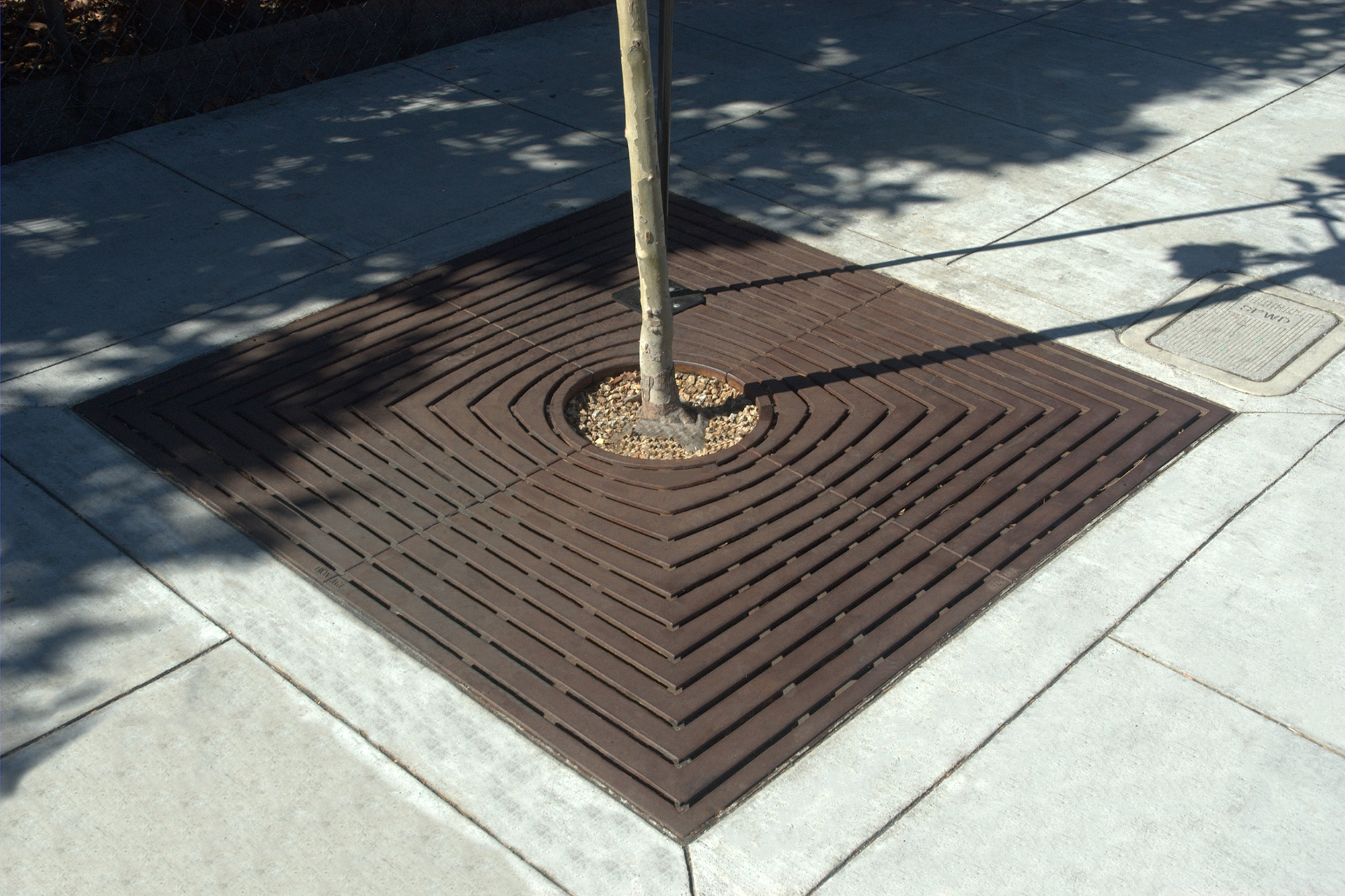

Name / Design Divisadero 5' x 5'
Product ID DIX60-60I99TG
Dimensions 59.88" x 59.88" x 1.25"
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 360
Free Drain Area 18.07%
Gallons Per Minute (GPM) 811.20
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-159-907
Name / Design Divisadero 5' x 5' Heel Proof
Product ID DIX60-60I99HPTG
Dimensions 59.88" x 59.88" x 1.25"
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 405.64
Free Drain Area 8.62%
Gallons Per Minute (GPM) 386.87
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-344-802

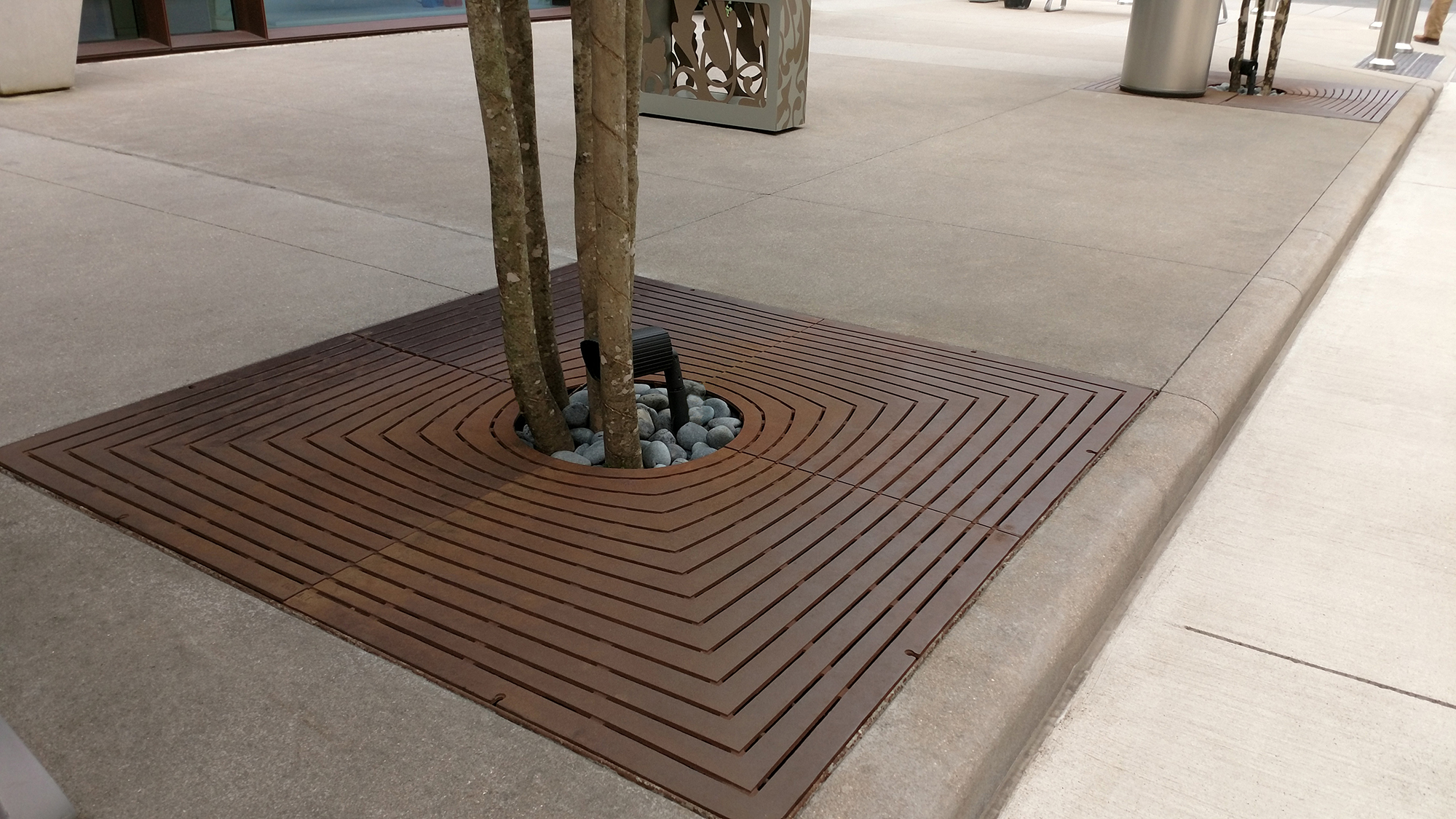

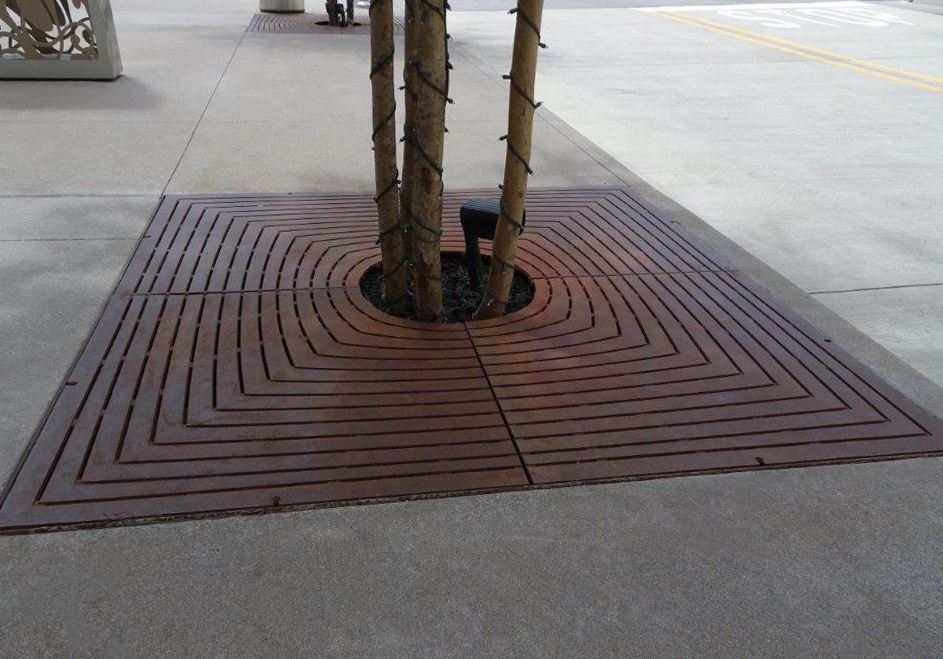

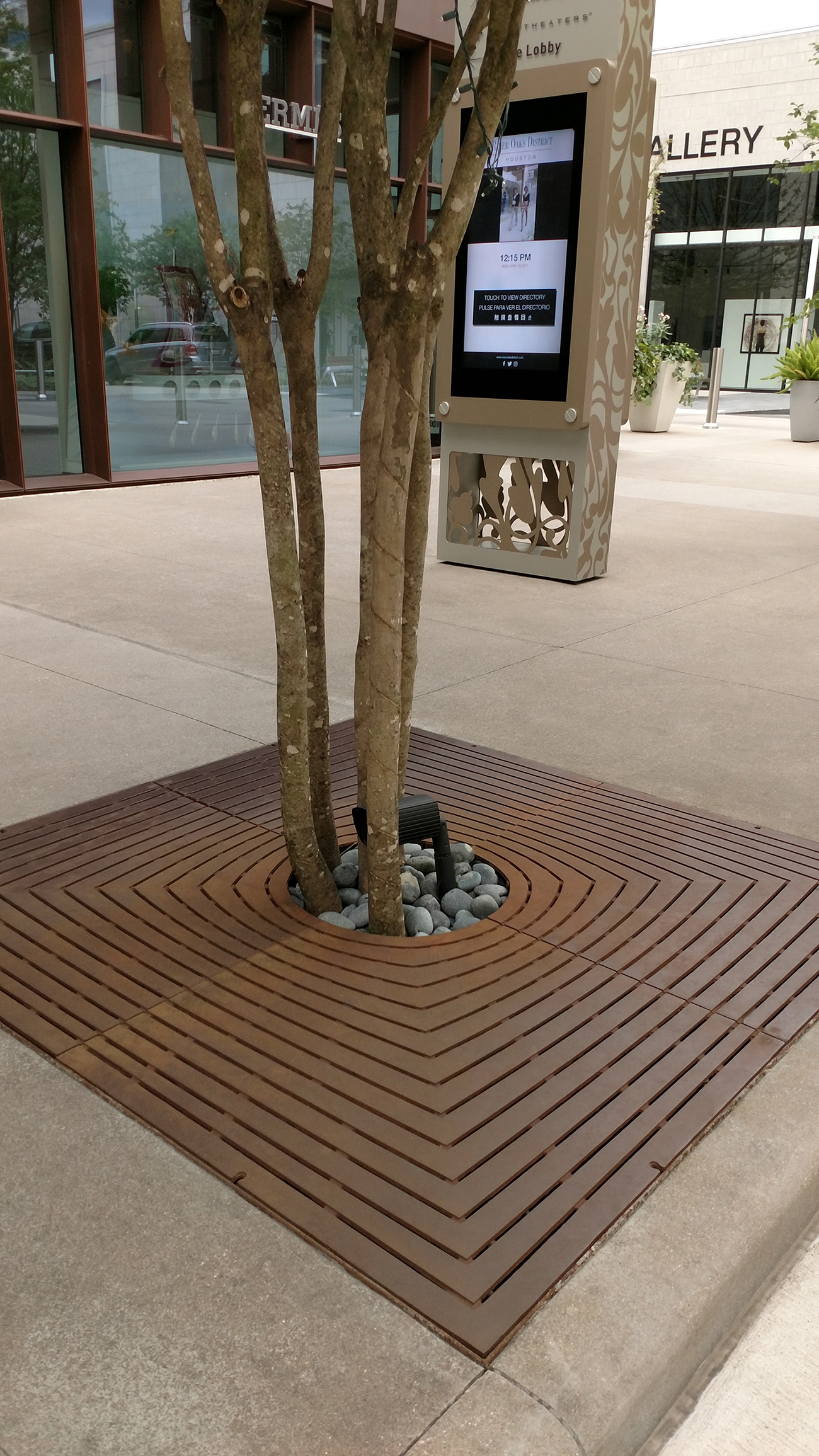

Name / Design Divisadero 6' x 6' Heel Proof
Product ID DIX72-72I99TGHP
Dimensions 71.88" x 71.88" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Frame(s) Frame Types
"E" Frame Installation
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 613.88
Free Drain Area 8.25%
Gallons Per Minute (GPM) 541.80
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-159-913
Name / Design Divisadero 8' Dia. Heel Proof
Product ID DIX96DiaI99TGHP
Dimensions 95.88" Dia. x 1.25"
Fits Iron Age Custom Frame
Frame(s) "E" Frame Installation
Frame Types
Material Cast Iron
Optional Finish
Baked On Oil Finish
Powdercoating
Weight lb(s) 856
Free Drain Area 76.5%
Gallons Per Minute (GPM) 652.25
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Cast Ductile Iron

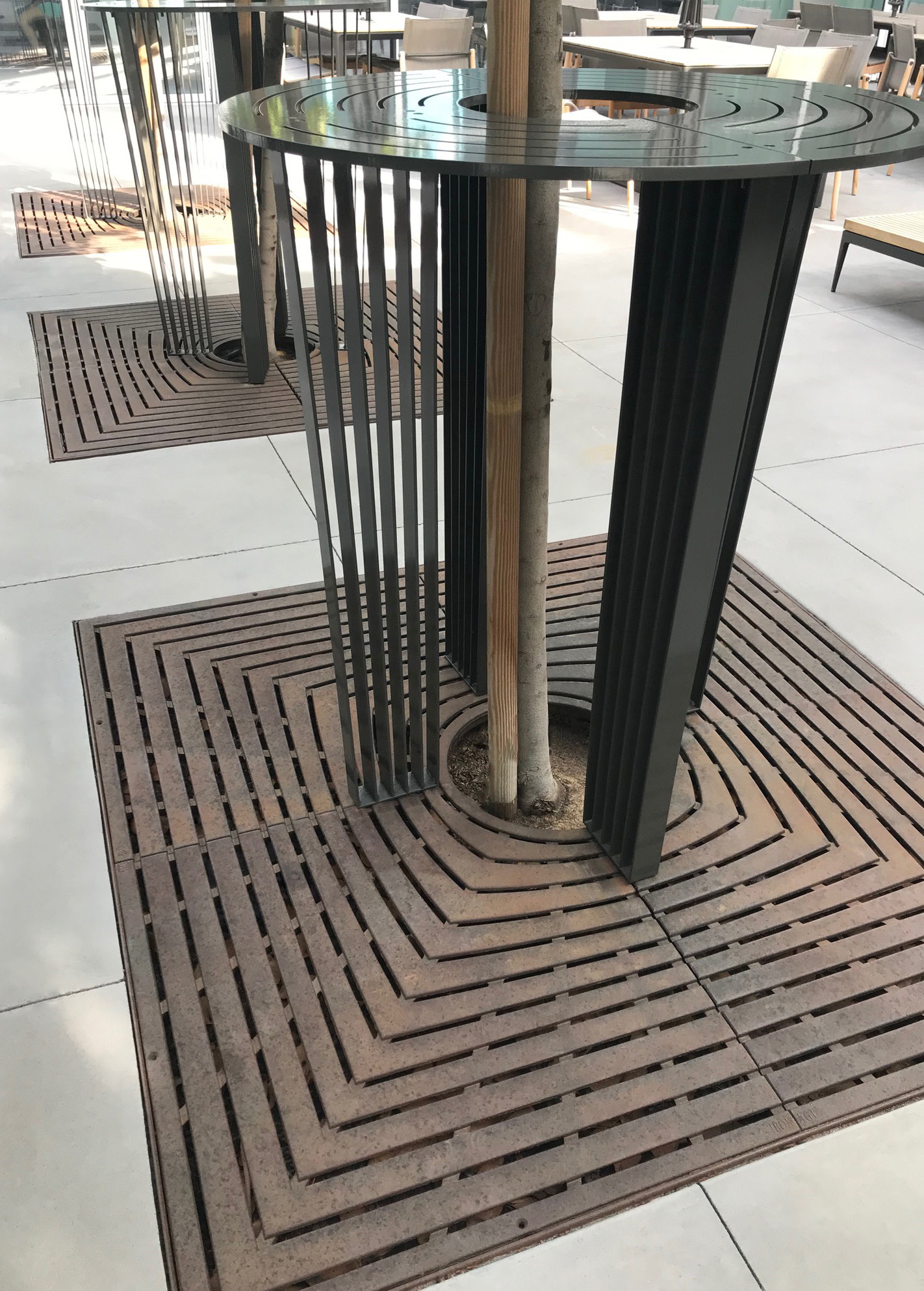

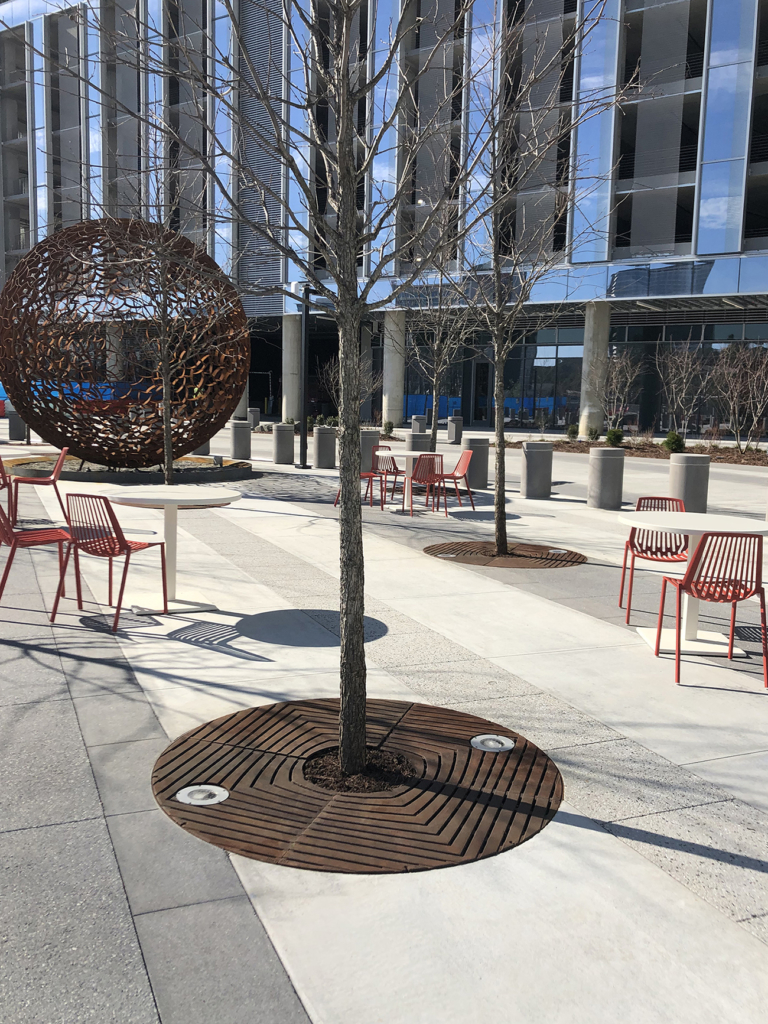

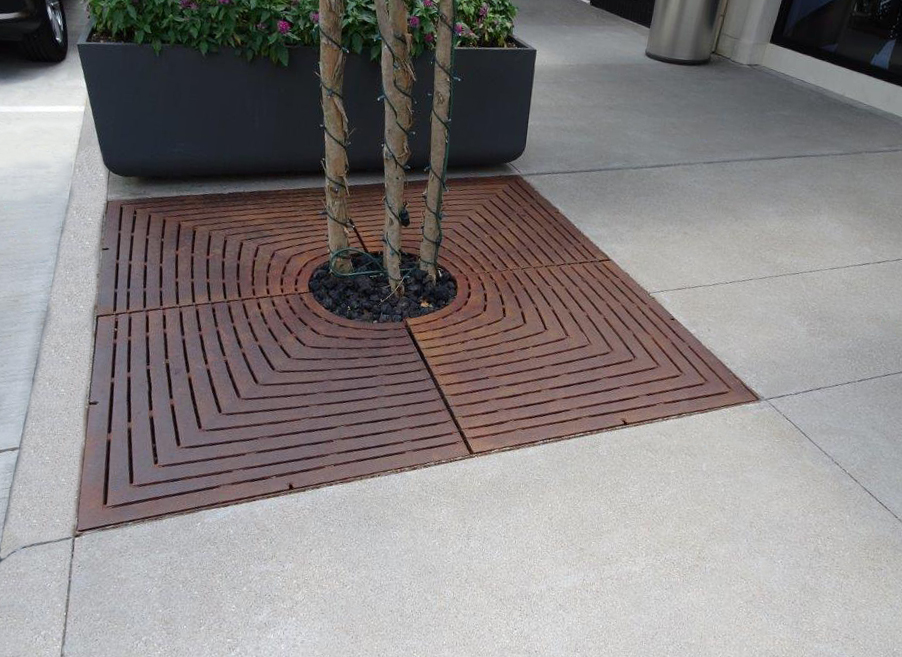

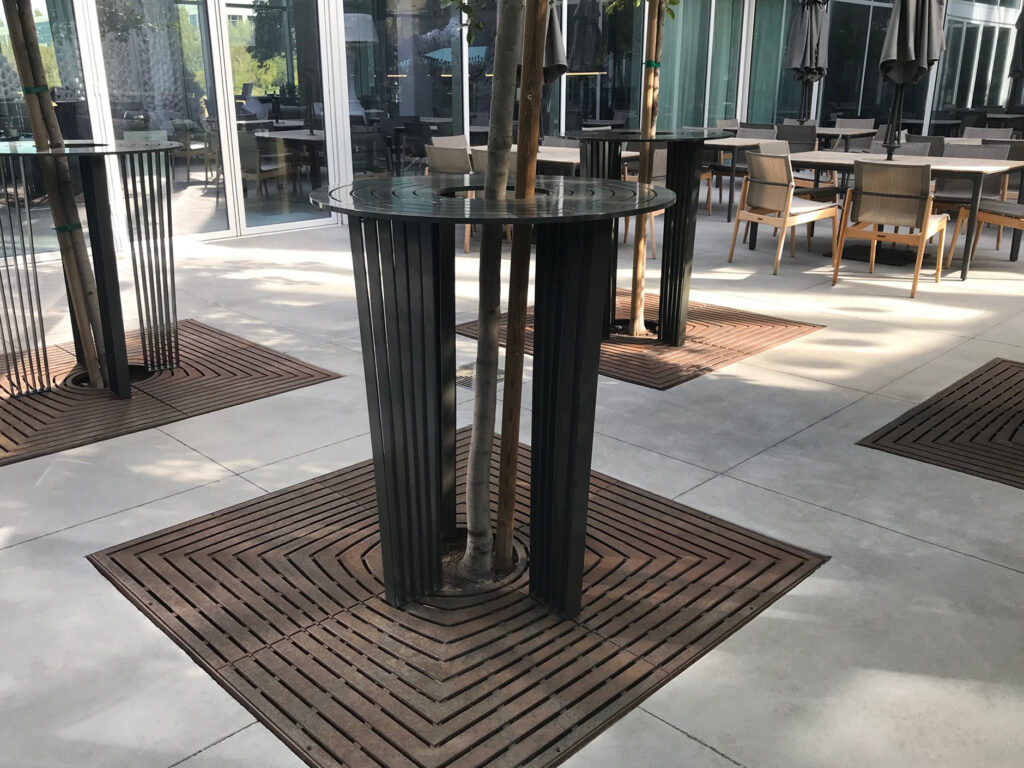

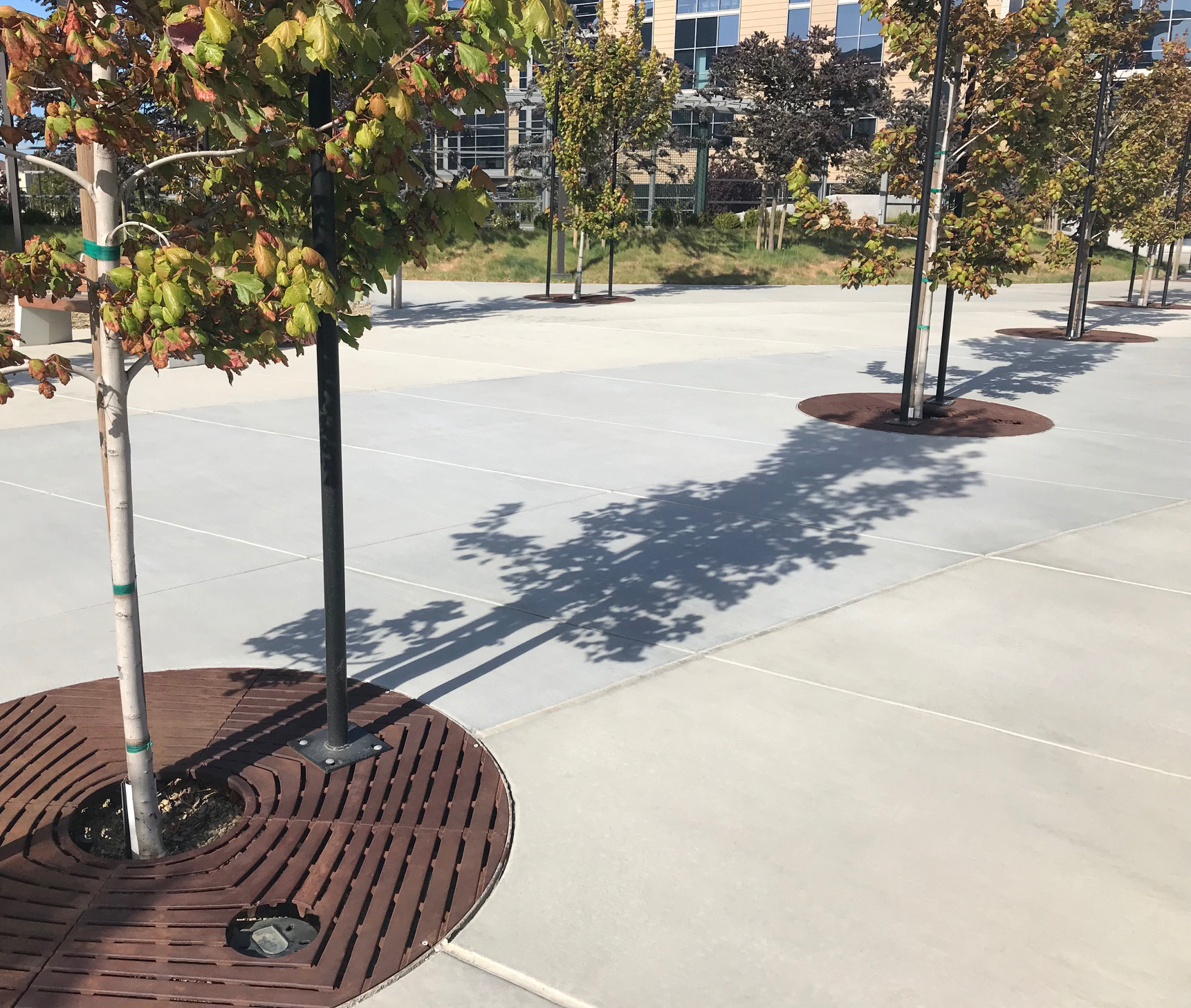

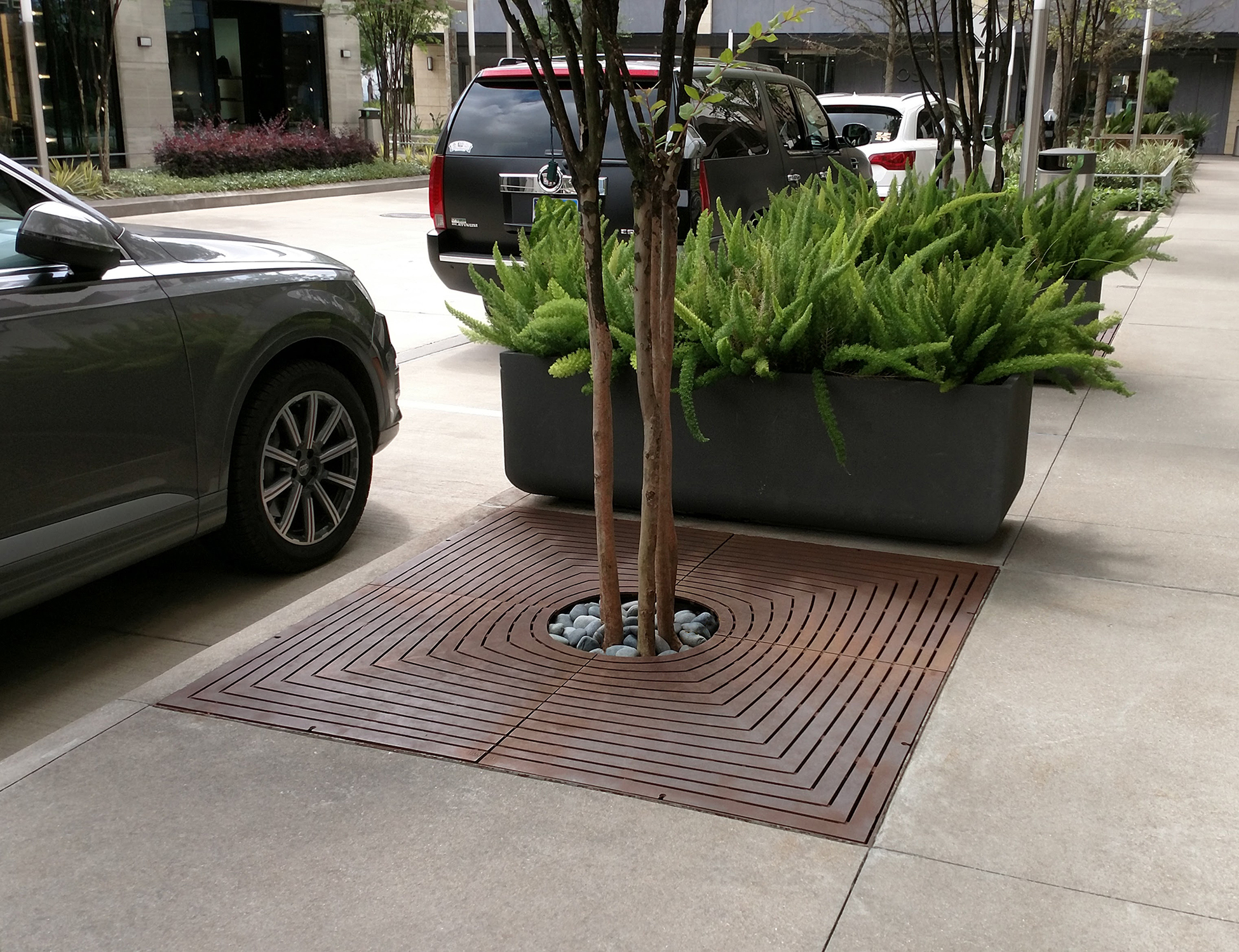

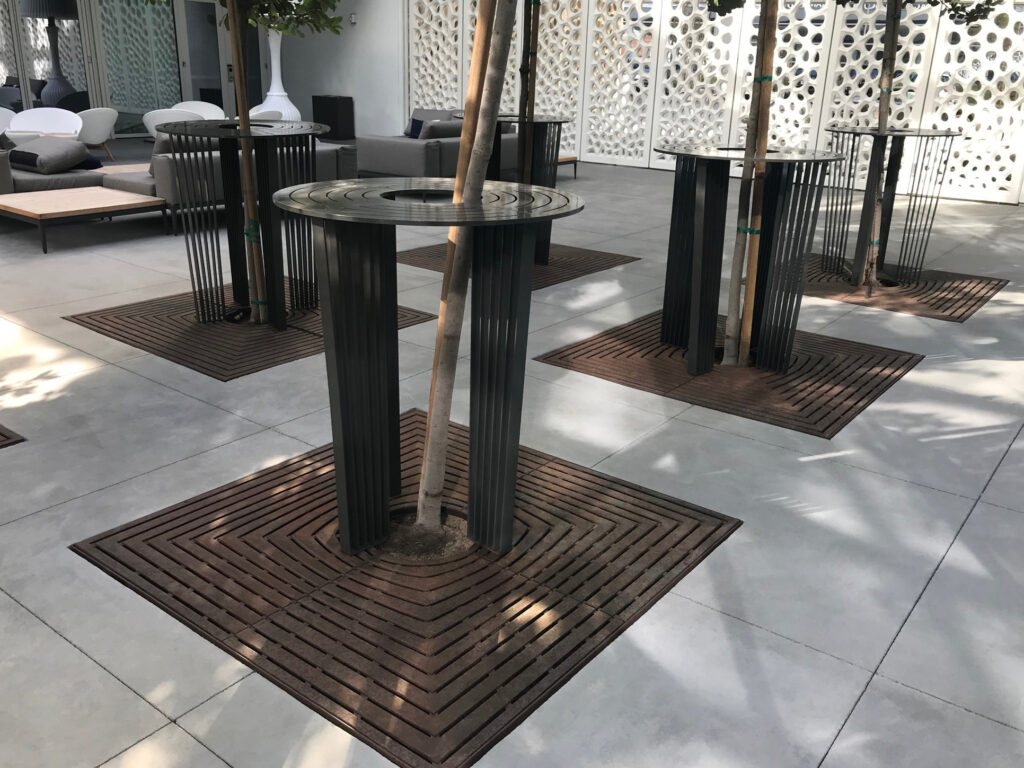

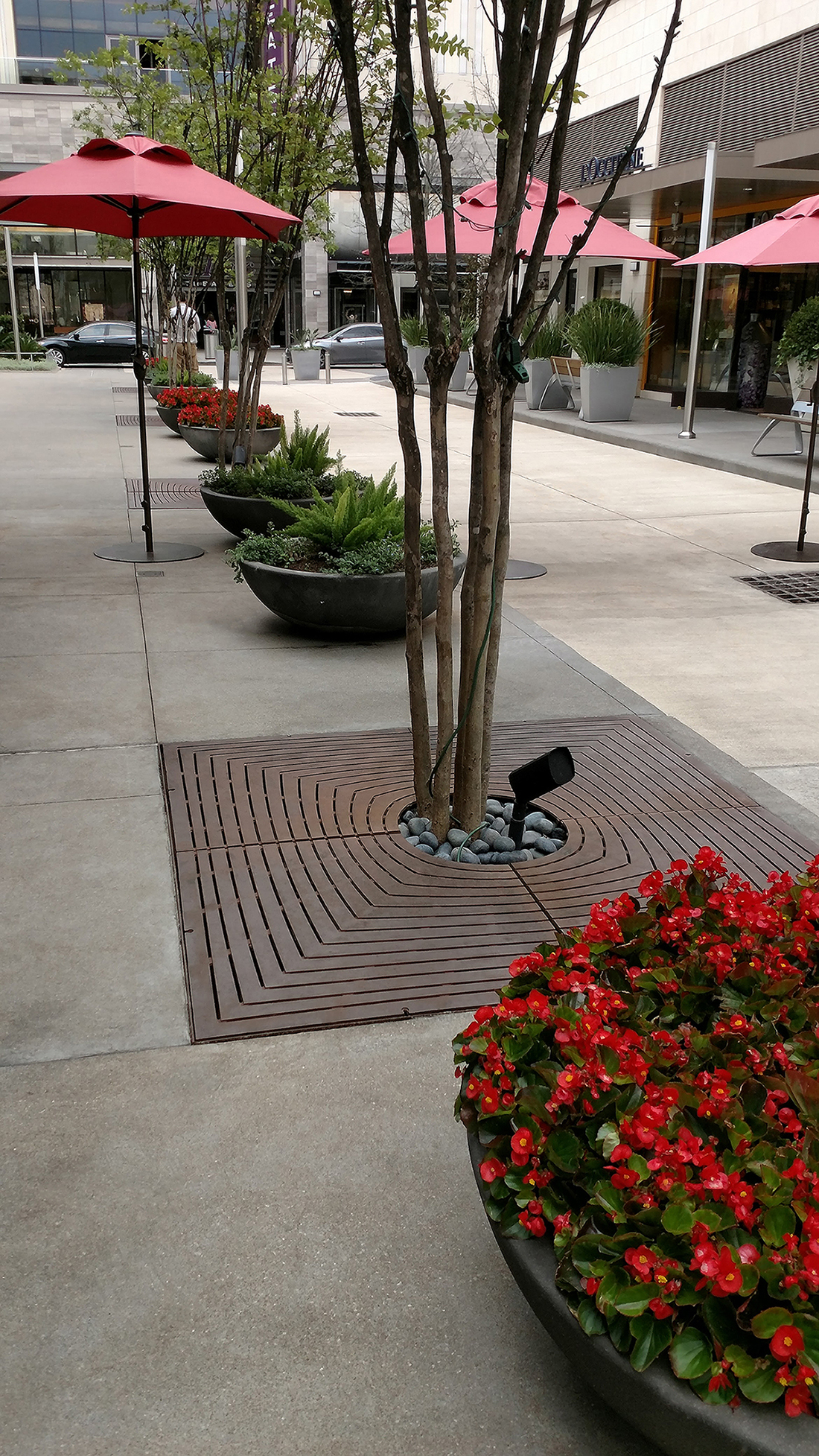

Photo Gallery:

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
