Thunderbird

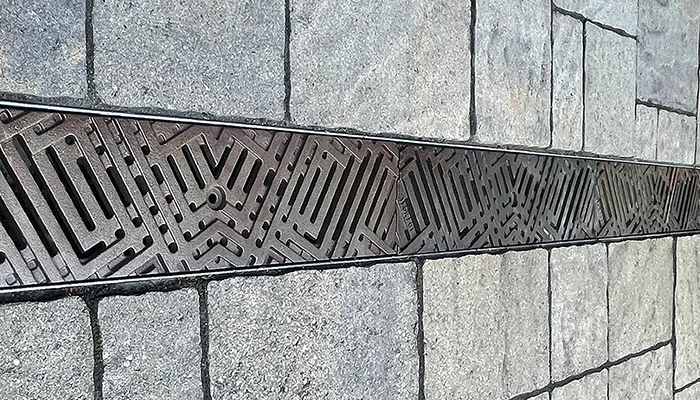

Decorative cast iron trench grates with southwest influenced Thunderbird pattern

Description:

Thunderbird’s bold, geometrical pattern brings a unique, southwestern influence to any hardscape design.

Size Options:

Detailed Specifications:

Name / Design Thunderbird 5" x 20" Heel Proof
Product ID THA5-20I21HP
Dimensions 4.81" x 19.56" x .81"
Drain Manufacturer
ABT®
ACO™
MEA®
Fits ABT® PolyDrain®
ACO™ K100, K100S, KS100
MEA® 1000 Series
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 9.54
Free Drain Area 11.95%
Gallons Per Minute (GPM) 14.77
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-329-981

Photo Gallery:

Decorative cast iron trench grates with southwest influenced Thunderbird pattern

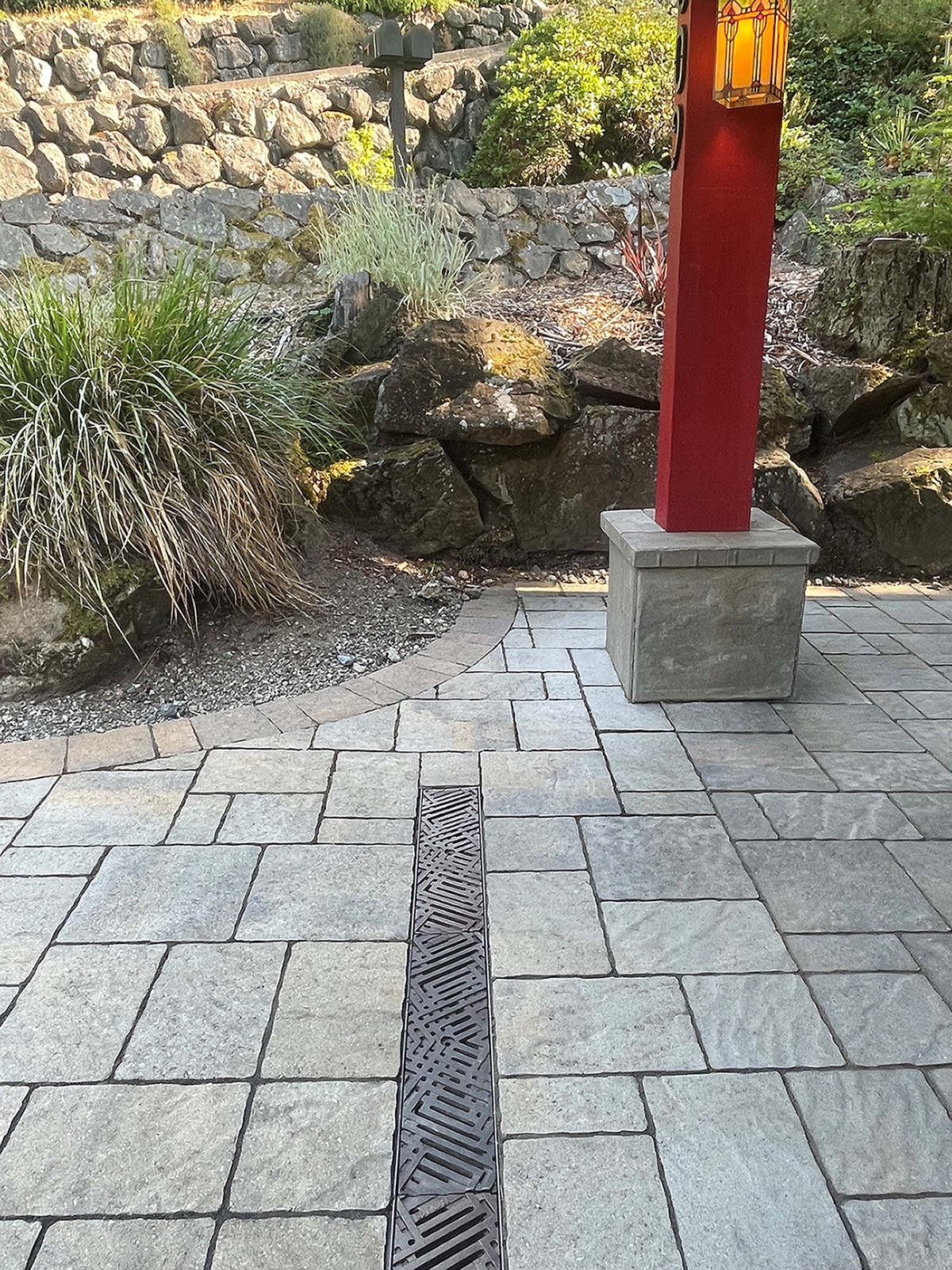

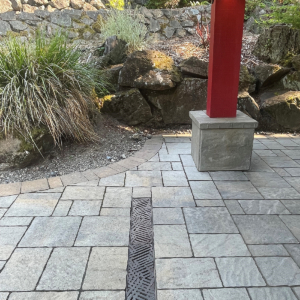

Thunderbird 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. Project Location: Residential driveway in Burien, WA.


Download photo
Decorative cast iron trench grates with southwest influenced Thunderbird pattern

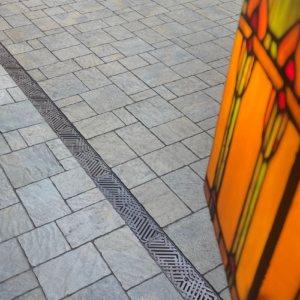

Thunderbird 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. Project Location: Residential driveway in Burien, WA.


Download photo
Decorative cast iron trench grates with southwest influenced Thunderbird pattern

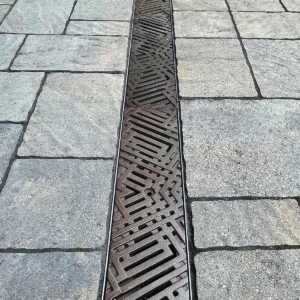

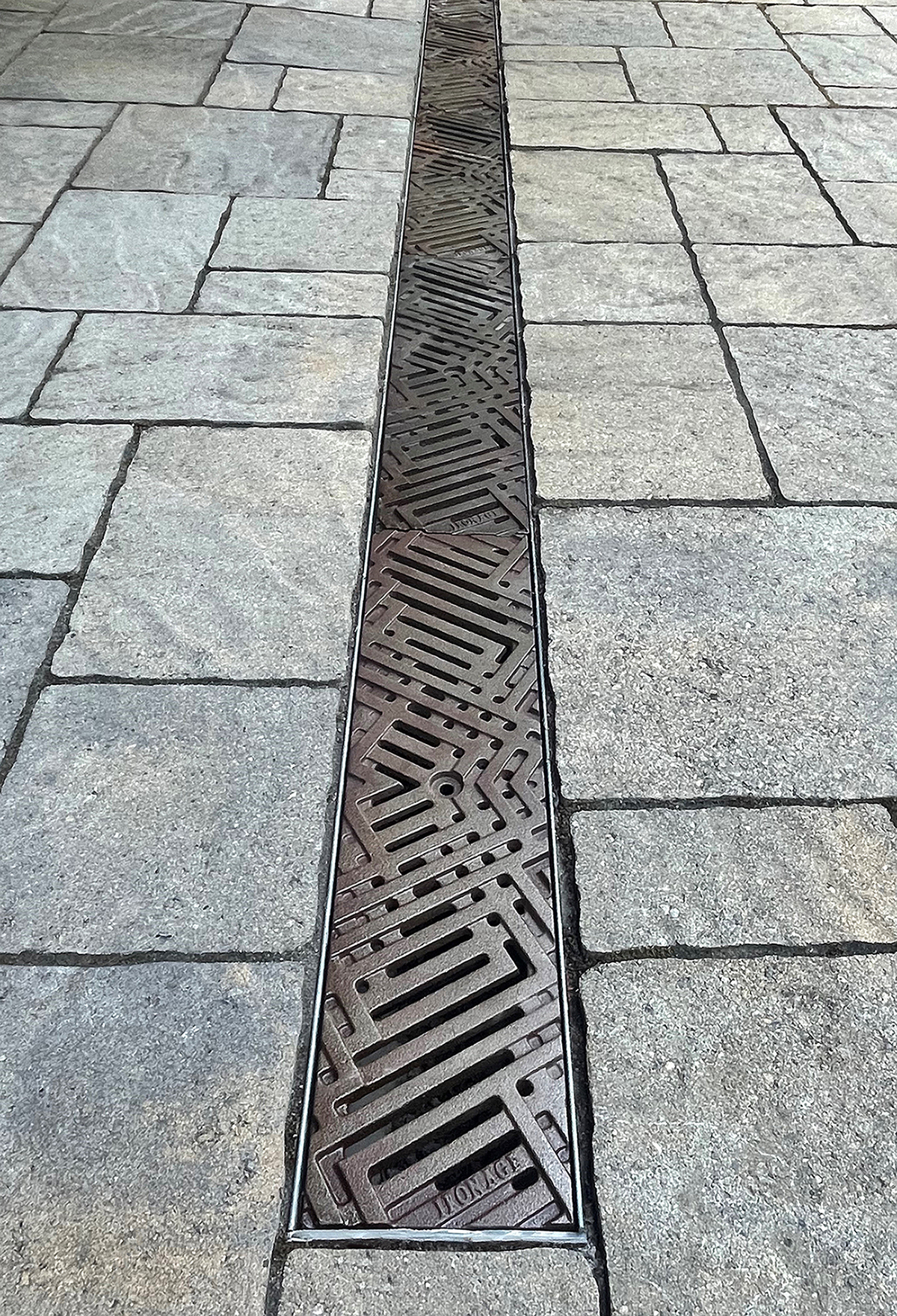

Thunderbird 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. Project Location: Residential driveway in Burien, WA.


Download photo
Decorative cast iron trench grates with southwest influenced Thunderbird pattern

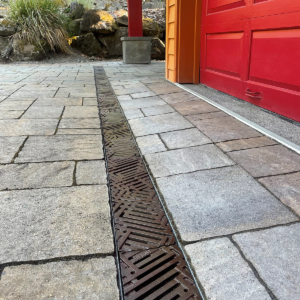

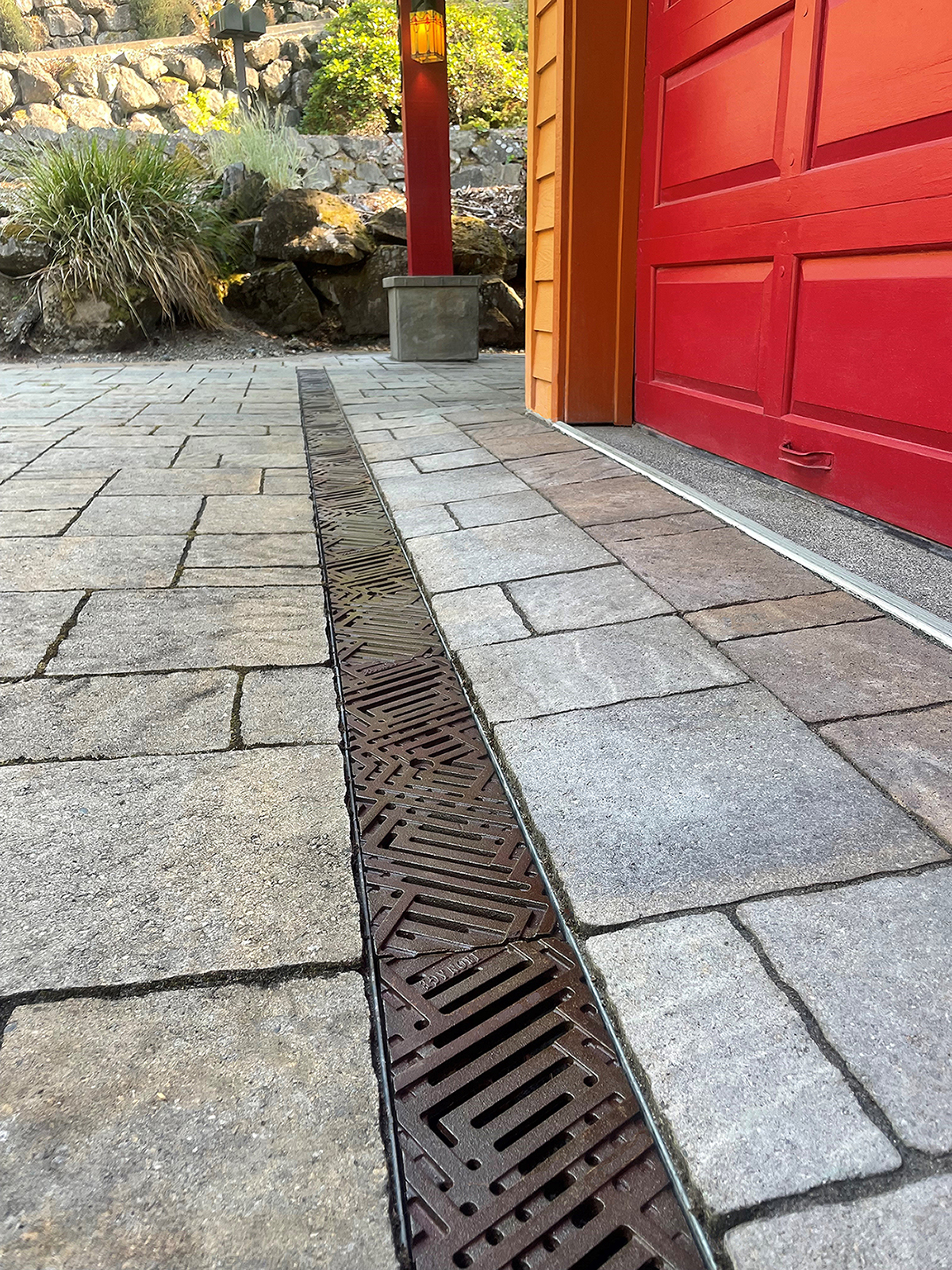

Thunderbird 5″ x 20″ heel-proof trench grate, cast ductile iron with baked-on-oil finish. Project Location: Residential driveway in Burien, WA.


Download photo
