Description:

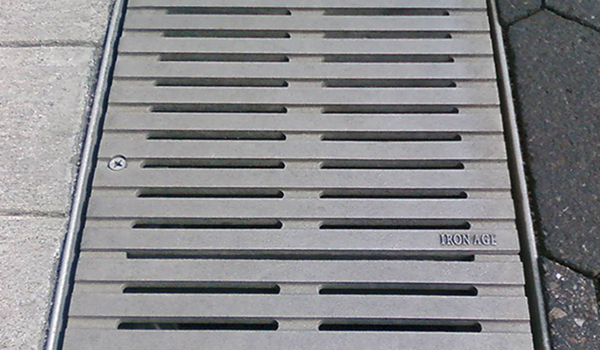

The Regular Joe combines the clean, simple lines of a traditional slotted grate with the surface interest and architectural refinement inherent in all our cast metal designs.
Regular Joe
Detailed Specifications:
 |
||
| Name / Design | Regular Joe 4' x 6' Heel Proof | |
|---|---|---|
| Product ID | RJX48-72I99TGHP | |
| Dimensions | 47.88" x 71.88" x 1.25 | |
| Drain Manufacturer |
Iron Age Designs® |
|
| Fits |
Iron Age Custom Frame |
|
| Frame(s) |
Frame Types "E" Frame Installation |
|
| Material | Cast Ductile Iron | |
| Standard Finish | Raw | |
| Optional Finish |
Baked On Oil Finish
Powder Coat
|
|
| Weight lb(s) | 303.90 | |
| Free Drain Area | 20.6% | |
| Gallons Per Minute (GPM) | 819.32 | |
| Recycled Content | 80% | |
| ADA Compliant | Yes | |
| Optional Material Upgrades |
Cast Aluminum
Cast Bronze
|
|
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
