Regular Joe

Description:

The Regular Joe combines the clean, simple lines of a traditional slotted grate with the surface interest and architectural refinement inherent in all our cast metal designs.





Size Options:
Similar Products:

Detailed Specifications:

Name / Design Regular Joe 5" Wide, 4'-3" CLR
Product ID RJR5-16I994
Dimensions 4.88" x 15.73" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Regular Joe 5" Wide Heel Proof, 18'-1" CLR
Product ID RJR5-20I9918HP
Dimensions 4.88" x 19.48" x .75"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10.02
Free Drain Area 13.88%
Gallons Per Minute (GPM) 17.14
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Regular Joe 5" Wide 18'-3" CLR
Product ID RJR5-20I9918
Dimensions 4.81" x 19.85" x .81"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 9.83
Free Drain Area 24.47%
Gallons Per Minute (GPM) 30.29
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze

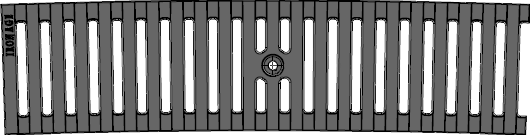

Name / Design Regular Joe 5" Wide, 26'-0" CLR
Product ID RJR5-20I9926
Dimensions 4.88" x 19.71" x .75"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 8.42
Free Drain Area 25.29%
Gallons Per Minute (GPM) 31.59
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Regular Joe 5" Wide Heel Proof, 26'-7" CLR
Product ID RJR5-20I9927HP
Dimensions 4.88" x 19.55" x .75"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 12.22
Free Drain Area 13.84%
Gallons Per Minute (GPM) 17.14
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Regular Joe 5.38" Wide Heel Proof, 9'-6" CLR
Product ID RJR5-20I9910HP
Dimensions 5.38" x 19.91" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Regular Joe 5.38" Wide Heel Proof, 12-1" CLR
Product ID RJR5-20I9912HP
Dimensions 5.38" x 19.67" x .75"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 7.73
Free Drain Area 26.76%
Gallons Per Minute (GPM) 36.46
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Regular Joe 5.38" Wide Heel Proof, 15'-9" CLR
Product ID RJR5-20I9916HP
Dimensions 5.38" x 19.93" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Regular Joe 5.38" Wide Heel Proof, 21'-10" CLR
Product ID RJR5-20I9922HP
Dimensions 5.38" x 19.63" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Regular Joe 5.38" Wide Heel Proof, 30'-6" CLR
Product ID RJR5-20I9931HP
Dimensions 5.38" x 19.94" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

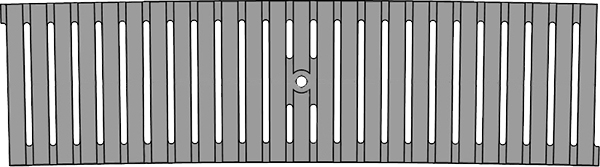

Name / Design Regular Joe 5.38" Wide Heel Proof, 35'-2" CLR
Product ID RJR5-20I9935HP
Dimensions 5.38" x 19.84" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Regular Joe 5.38" Wide Heel Proof, 51'-0" CLR
Product ID RJR5-20I9951HP
Dimensions 5.38" x 19.85" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Regular Joe 5.38" Wide Heel Proof, 54'-11" CLR
Product ID RJR5-20I9955HP
Dimensions 5.38" x 19.94" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Regular Joe 8" Wide, 4'-10" CLR
Product ID RJR8-19 I995
Dimensions 7.88" x 19.36" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 13
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Cast Ductile Iron
Name / Design Regular Joe 12" Wide, 9'-6" CLR
Product ID RJR12-17I9910
Dimensions 11.88" x 17.16" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 20
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Regular Joe 12" Wide Heavy Duty, 16'-2" CLR
Product ID RJR12-20I9916HD
Dimensions 11.88" x 19.89" x 1.25"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 14
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Regular Joe 12" Wide, Heel Proof, Heavy Duty, 44'-8" CLR
Product ID RJR12-20I9945HPHD
Dimensions 11.5" x 18.87" x 1.76"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 35.34
Free Drain Area 15.24%
Gallons Per Minute (GPM) 42.88
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

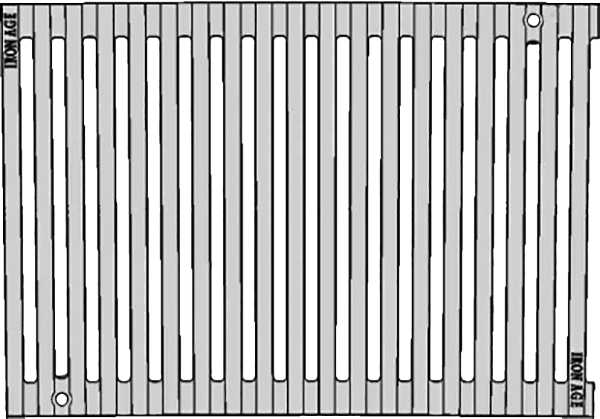

Name / Design Regular Joe 12" Wide, 54'-0" CLR
Product ID RJR12-17I9954
Dimensions 11.88" x 17.03" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 20
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

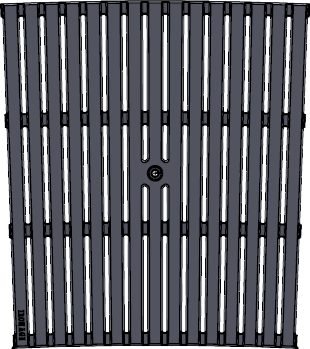

Name / Design Regular Joe 19" Wide Heel Proof, 18'-6" CLR
Product ID RJR19-17I9919HP
Dimensions 19.25" x 17.29" x 1"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 38.68
Free Drain Area 16.74%
Gallons Per Minute (GPM) 69.94
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze

Photo Gallery:

Regular Joe 5" wide radius trench grate

Regular Joe 5″ wide radius trench grate, cast iron with baked-on-oil finish. DESIGN: Sikora Wells Appel. PROJECT: Green Wall at Longwood Gardens. LOCATION: Kennett Square, PA.


Download photo
Regular_Joe_5in_Radius_(2)_E

Regular Joe 5″ wide radius trench grate, cast iron with baked-on-oil finish. DESIGN: Sikora Wells Appel. PROJECT: Green Wall at Longwood Gardens. LOCATION: Kennett Square, PA.


Download photo
Regular_Joe_5in_Radius_(6)_E

Regular Joe 5″ wide radius trench grate, cast iron with black powder coat finish, shown 1.5 years after installation (see below for photos showing the grates newly installed). DESIGN: Hargreaves Jones. INSTALLER: Coastal Contracting Corp. PROJECT: Brigham Park, NYC Parks. LOCATION: Brooklyn, NY.


Download photo
Regular_Joe_5in_Radius_(7)_E

Regular Joe 5″ wide radius trench grate, cast iron with black powder coat finish, shown 1.5 years after installation (see below for photos showing the grates newly installed). DESIGN: Hargreaves Jones. INSTALLER: Coastal Contracting Corp. PROJECT: Brigham Park, NYC Parks. LOCATION: Brooklyn, NY.


Download photo
Cast iron radius trench grate with powder coat finish in ellipse shape around a spray park

Regular Joe 5″ wide radius trench grate, cast iron with black powder coat finish, newly installed. DESIGN: Hargreaves Jones. INSTALLER: Coastal Contracting Corp. PROJECT: Brigham Park, NYC Parks. LOCATION: Brooklyn, NY.


Download photo
Cast iron radius trench grate with powder coat finish in ellipse shape around a spray park

Regular Joe 5″ wide radius trench grate, cast iron with black powder coat finish, newly installed. DESIGN: Hargreaves Jones. INSTALLER: Coastal Contracting Corp. PROJECT: Brigham Park, NYC Parks. LOCATION: Brooklyn, NY.


Download photo
Cast iron radius trench grate with powder coat finish in ellipse shape around a spray park

Regular Joe 5″ wide radius trench grate, cast iron with black powder coat finish, newly installed. DESIGN: Hargreaves Jones. INSTALLER: Coastal Contracting Corp. PROJECT: Brigham Park, NYC Parks. LOCATION: Brooklyn, NY.


Download photo
regular-joe-5-38in-aluminum-e

Regular Joe 5.38″ wide radiused heel-proof trench grate raw cast aluminum. Project: Brooklyn Botanic Garden. LOCATION: Brooklyn, NY.


Download photo
regular-joe-5-38in-hp-aluminum-2-e

Regular Joe 5.38″ wide radiused heel-proof trench grate raw cast aluminum. Project: Brooklyn Botanic Garden. LOCATION: Brooklyn, NY.


Download photo
regular-joe-12in-2-e

Regular Joe 12″ radiused grates, pictured in our baked-on-oil finish, arrayed with various radii. DESIGN: Sikora Wells Appel. PROJECT: Green Wall at Longwood Gardens. LOCATION: Kennett Square, PA.


Download photo
regular-joe-12in-e

Regular Joe 12″ radiused grates, pictured in our baked-on-oil finish, arrayed with various radii. DESIGN: Sikora Wells Appel. PROJECT: Green Wall at Longwood Gardens. LOCATION: Kennett Square, PA.


Download photo
regular-joe-12in-bronze-2-e

Regular Joe 14″ x 24″ trench grate arrayed on a radius, cast bronze. Project: Lincoln Memorial, Washington DC


Download photo
regular-joe-12in-bronze-e

Regular Joe 14″ x 24″ trench grate arrayed on a radius, cast bronze. Project: Lincoln Memorial, Washington DC


Download photo

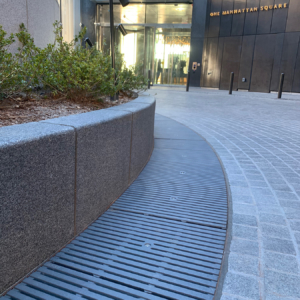

Regular Joe 19.25" wide radius trench grate

Regular Joe 19.25″ wide radius trench grate, cast iron with powder coat finish. Design by: West 8. Contractor/Installer: Steven Dubner Landscaping. Project: One Manhattan Square, New York City, NY


Download photo
Regular Joe 19.25" wide radius trench grate

Regular Joe 19.25″ wide radius trench grate, cast iron with powder coat finish. Design by: West 8. Contractor/Installer: Steven Dubner Landscaping. Project: One Manhattan Square, New York City, NY


Download photo
Regular Joe 19.25" wide radius trench grate

Regular Joe 19.25″ wide radius trench grate, cast iron with powder coat finish. Design by: West 8. Contractor/Installer: Steven Dubner Landscaping. Project: One Manhattan Square, New York City, NY


Download photo
Regular Joe 19.25" wide radius trench grate

Regular Joe 19.25″ wide radius trench grate, cast iron with powder coat finish. Design by: West 8. Contractor/Installer: Steven Dubner Landscaping. Project: One Manhattan Square, New York City, NY


Download photo
