Rain

Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 24" x 36" Heel Proof, PEDESTRIAN LOAD ONLY
Product ID	RNX24-36I99HPFW
Dimensions	23.92" x 35.92" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	81
Free Drain Area	13.7%
Gallons Per Minute (GPM)	154.31
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 24" x 48" Heel Proof, PEDESTRIAN LOAD ONLY
Product ID	RNX24-48I99HPFW
Dimensions	23.94" x 47.88" x 1"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	117.66
Free Drain Area	17.89%
Gallons Per Minute (GPM)	268.64
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-790

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 30" x 30" Heel Proof, PEDESTRIAN LOAD ONLY
Product ID	RNX30-30I99FWHP
Dimensions	29.92" x 29.92" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	101
Free Drain Area	13.58%
Gallons Per Minute (GPM)	17.79
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 36" x 36" Heel Proof, PEDESTRIAN LOAD ONLY
Product ID	RNX36-36I99HPFW
Dimensions	35.92" x 35.92" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	116
Free Drain Area	14.7%
Gallons Per Minute (GPM)	248.64
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-795

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 42" x 42" Heel Proof, PEDESTRIAN LOAD ONLY
Product ID	RNX42-42I99HP
Dimensions	41.92" x 41.92" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	173.37
Free Drain Area	14.76%
Gallons Per Minute (GPM)	339.81
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

Photo Gallery:

Cast iron grates in decorative Rain pattern by Iron Age Designs. Black powder coat finish.

Large grate array consisting of 24″ x 48″ Rain heel-proof grates; cast iron with black powder coat finish. DESIGN: Pacheco Koch. PROJECT: Entry Plaza at 1925 W. John Carpenter Fwy. LOCATION: Irving, TX.

Download photo

Cast iron grates in decorative Rain pattern by Iron Age Designs.

Rain 24″ x 48″ heel-proof grates, cast iron with baked-on-oil finish, arrayed as a partial tree grate. Design: Kudela & Weinheimer Landscape Architects – San Antonio. Installer: E-Z Bel Construction. Project: 7600 Broadway. Location: San Antonio, TX

Download photo

Cast iron grate in decorative Rain pattern by Iron Age Designs. Baked-on-oil finish. Rooftop deck installation.

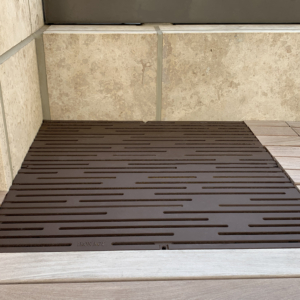

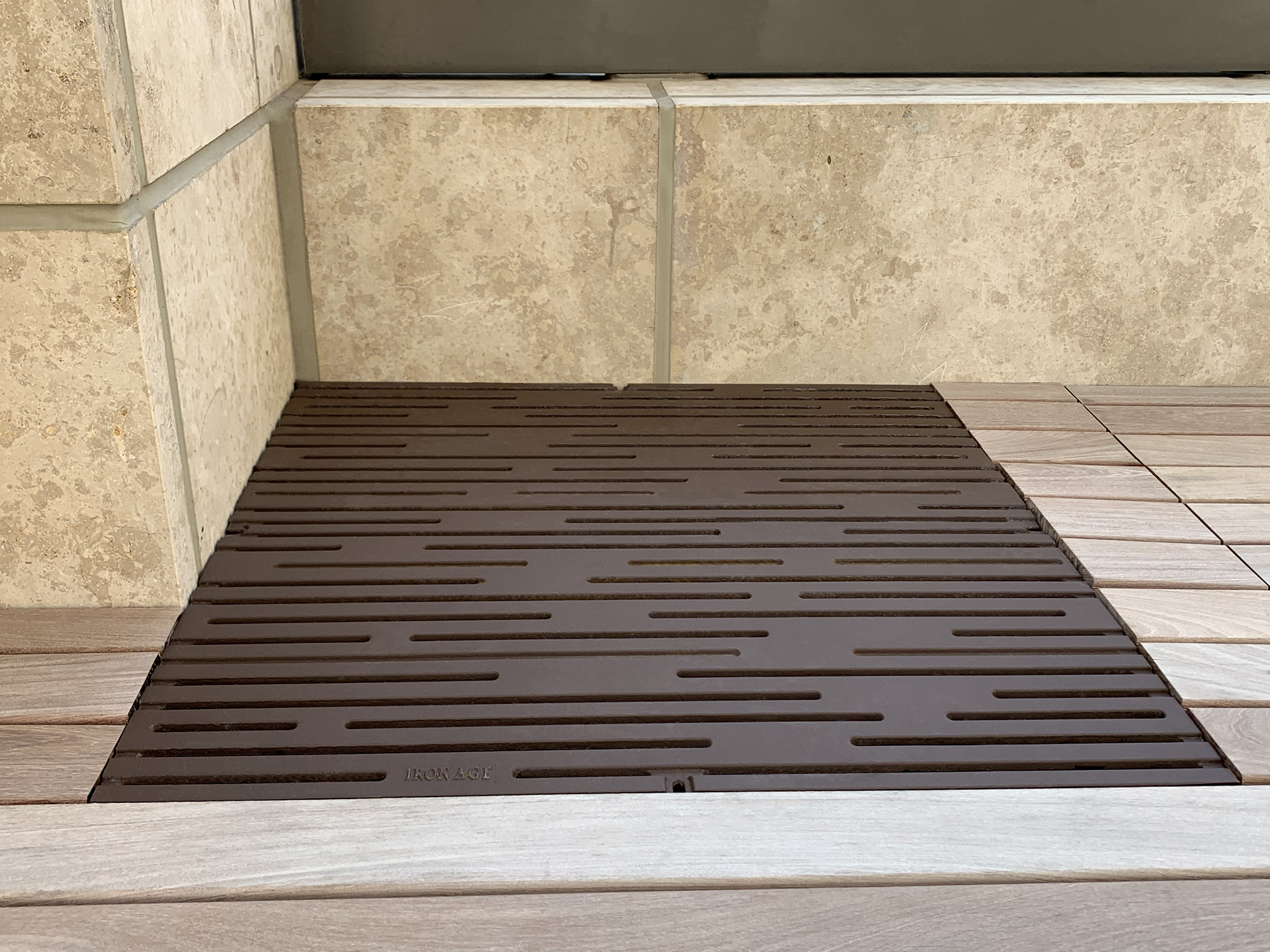

Rain 30″ x 30″ heel-proof grate, cast ductile iron with powder coat finish. DESIGN: Melillo • Bauer • Carman | Landscape Architects. INSTALLER: KJM Waterproofing. PROJECT: 99 Hudson. LOCATION: Jersey City, NJ.

Download photo

Download photo

Download photo

Download photo

Cast iron grate in decorative Rain pattern by Iron Age Designs.

Rain 36″ x 36″ heel-proof grate, cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.

Download photo

Rain 36″ x 36″ heel-proof grate (foreground), custom laser-cut angled tree grate array consisting of Rain 4′ x 4′ heel-proof tree grates and 24″ x 48″ Rain extension panels (background), cast iron with baked-on-oil finish. DESIGN: Melillo • Bauer • Carman Landscape Architecture. CONTRACTOR: Twin Resources. PROJECT: Haus25. LOCATION: 25 Christopher Columbus Drive, Jersey City, NJ.

Download photo
