Description:

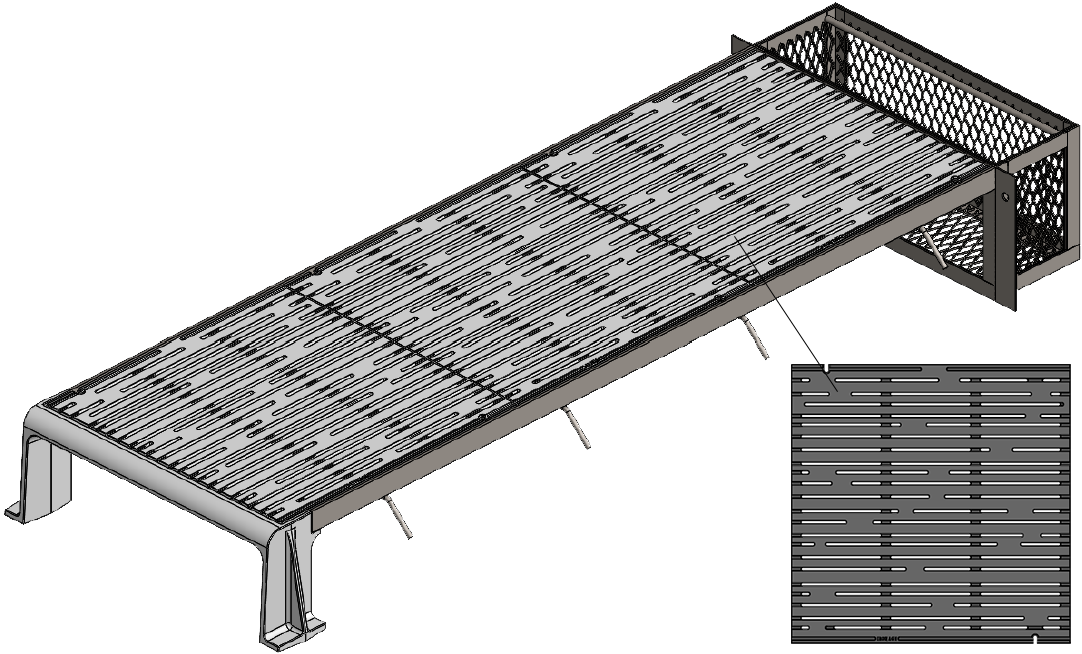

We designed a heavy-duty, cast iron curb inlet to interface with our standard steel trench frames. The frames cut across the sidewalk, with Rain grates covering the open runnel where water flows from the street into a bioswale on the other side. Click here for more information.
Detailed Specifications:
Photo Gallery:

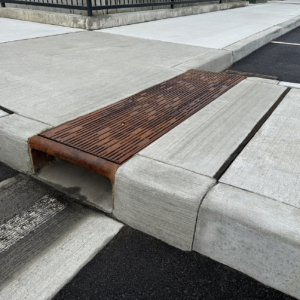

18″ wide, cast iron curb inlet and Rain 18″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are raw cast ductile iron. DESIGN: DCI Engineering. PROJECT: W Pointe Parkway. LOCATION: Post Falls, ID.

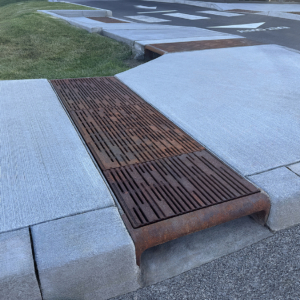

18″ wide, cast iron curb inlet and Rain 18″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are raw cast ductile iron. DESIGN: DCI Engineering. PROJECT: W Pointe Parkway. LOCATION: Post Falls, ID.
18″ wide, cast iron curb inlet and Rain 18″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are raw cast ductile iron. DESIGN: DCI Engineering. PROJECT: W Pointe Parkway. LOCATION: Post Falls, ID.

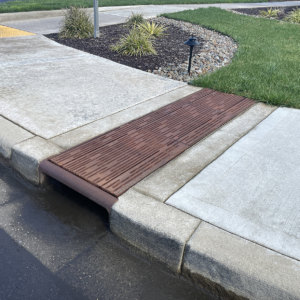

18″ wide, cast iron curb inlet and Rain 18″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are cast ductile iron with our baked-on-oil finish. DESIGN: Ginn Group. PROJECT: Felida Overlook Development. LOCATION: Battleground, WA.

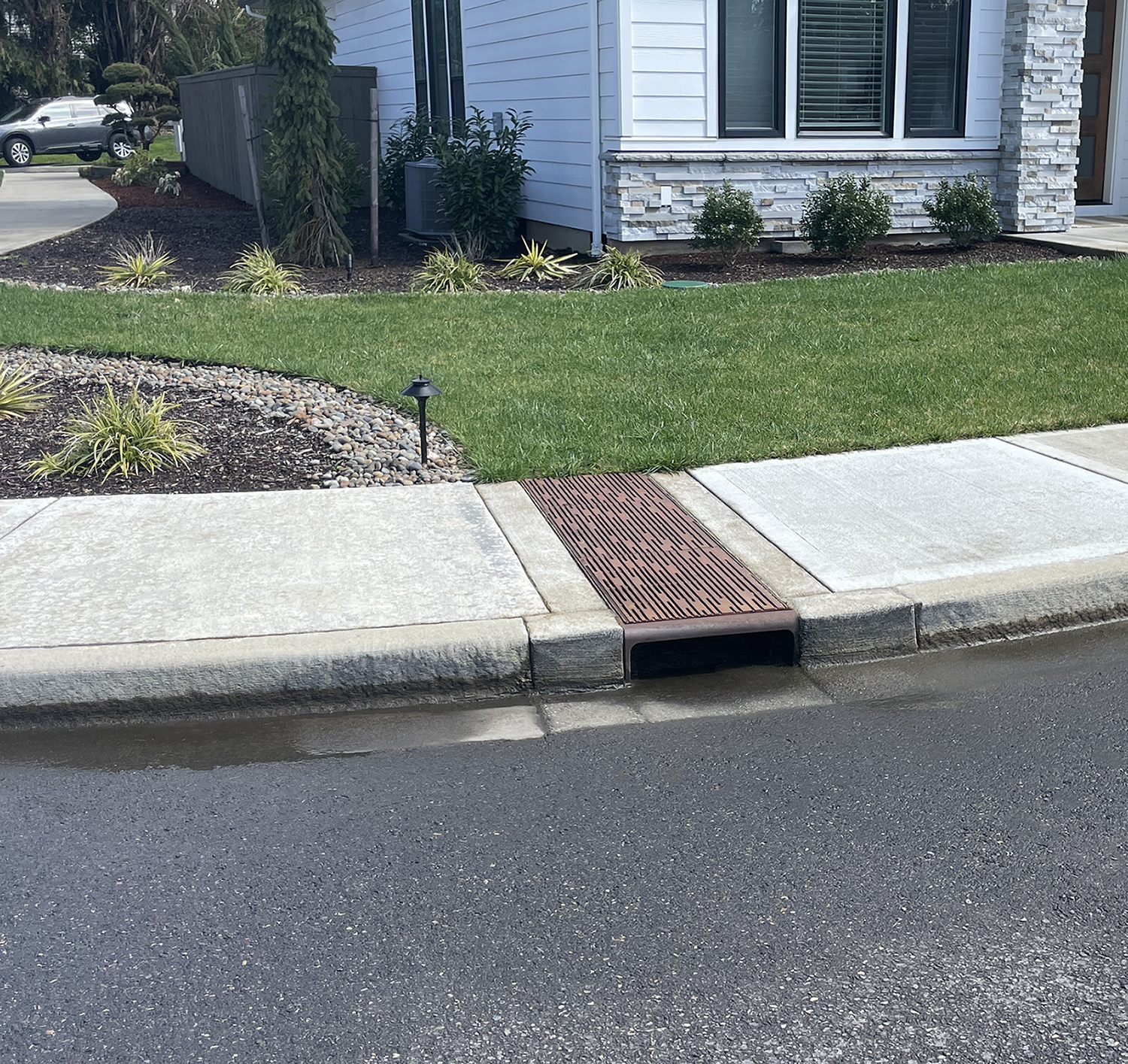

18″ wide, cast iron curb inlet and Rain 18″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are cast ductile iron with our baked-on-oil finish. DESIGN: Ginn Group. PROJECT: Felida Overlook Development. LOCATION: Battleground, WA.
24″ wide, cast iron curb inlet and Rain 24″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are cast ductile iron with our baked-on-oil finish. DESIGN: KW Landscape Architects – San Antonio. INSTALLATION: E-Z Bel Construction. PROJECT: 7600 Broadway. LOCATION: San Antonio, TX.
24″ wide, cast iron curb inlet and Rain 24″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are cast ductile iron with our baked-on-oil finish. DESIGN: KW Landscape Architects – San Antonio. INSTALLATION: E-Z Bel Construction. PROJECT: 7600 Broadway. LOCATION: San Antonio, TX.
24″ wide, cast iron curb inlet and Rain 24″ x 24″ heel-proof grates sitting atop embedded steel trench frames. In the background are tree grates made from Rain 24″ x 48″ heel-proof extension panels. All grates are cast ductile iron with our baked-on-oil finish. DESIGN: KW Landscape Architects – San Antonio. INSTALLATION: E-Z Bel Construction. PROJECT: 7600 Broadway. LOCATION: San Antonio, TX.
48″ wide, cast iron curb inlet and side-by-side Rain 24″ x 24″ heel-proof grates sitting atop embedded steel trench frames. Grates are cast ductile iron with our baked-on-oil finish. DESIGN: KW Landscape Architects – San Antonio. INSTALLATION: E-Z Bel Construction. PROJECT: 7600 Broadway. LOCATION: San Antonio, TX.
Standard Finish
For details, see Materials and Finish Options under Resources.
Optional Finish
For details, see Materials and Finish Options under Resources.
Optional Material Upgrades
Call for pricing and lead time.
