Plex

Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Plex 2" x 18" Heel-Proof
Product ID	PLX2-18I99
Dimensions	2.25" x 17.97" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	3.72
Free Drain Area	21.37%
Gallons Per Minute (GPM)	11.32
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-329-976

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Plex 5" x 20" Heel-Proof
Product ID	PLA5-20 I99HP
Dimensions	4.81" x 19.56" x .81"
Drain Manufacturer	ABT® ACO™ MEA®
Fits	ABT® PolyDrain® ACO™ K100, K100S, KS100 MEA® 1000 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	11.54
Free Drain Area	16.62%
Gallons Per Minute (GPM)	20.50
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-159-675

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Plex 12" x 18
Product ID	PLX12-18I99
Dimensions	11.88" x 17.88" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	28.00
Free Drain Area	21.29%
Gallons Per Minute (GPM)	59.22
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-346-307

Photo Gallery:

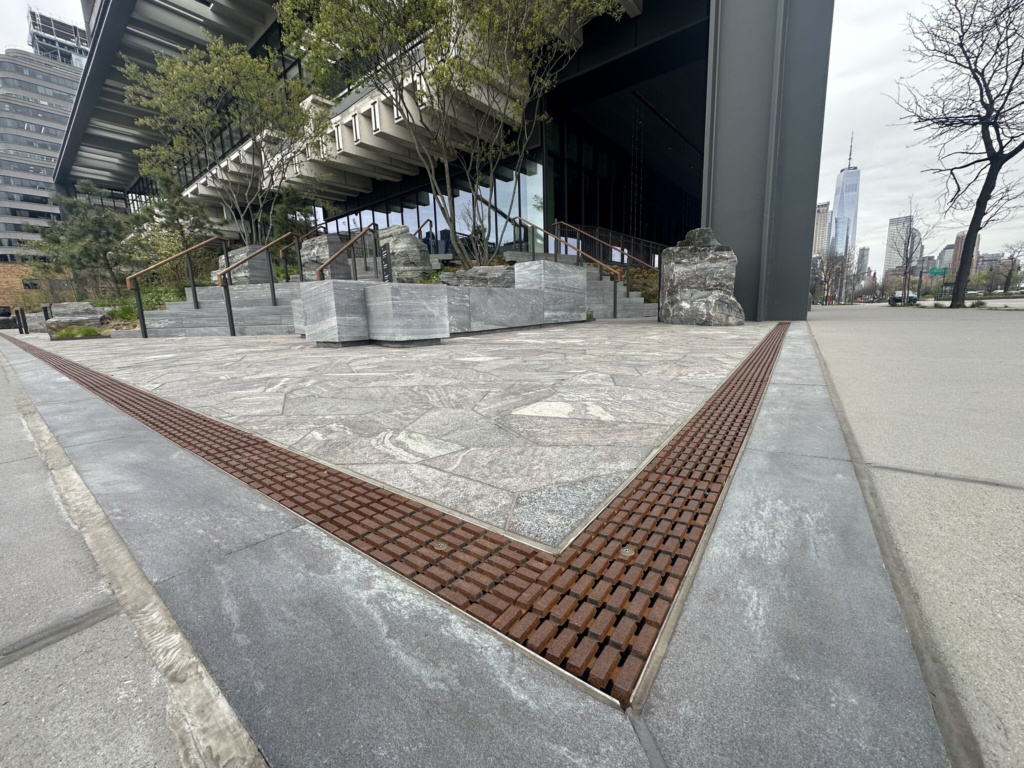

Cast iron trench grates in decorative Plex pattern from Iron Age Designs.

Plex 5″ x 20″ heavy-duty trench grate, cast ductile iron with baked-on-oil finish. DESIGN: Future Green Studio. INSTALLATION: Phase 1 Group. PROJECT: St. John’s Terminal, Manhattan offices for a global tech firm. LOCATION: New York, NY

Download photo

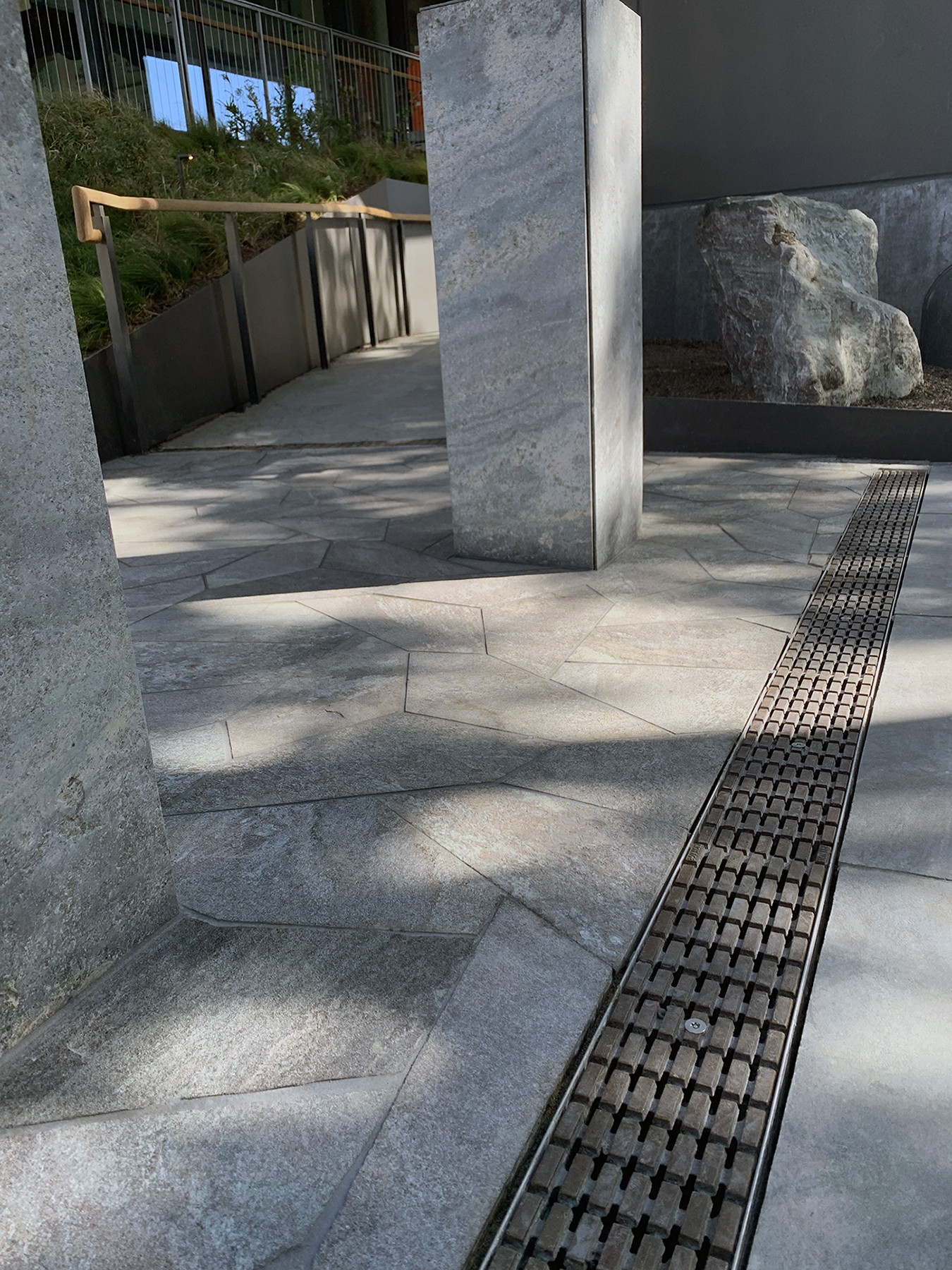

Decorative cast iron trench grate at entry of walkway with pavers and railing

Download photo

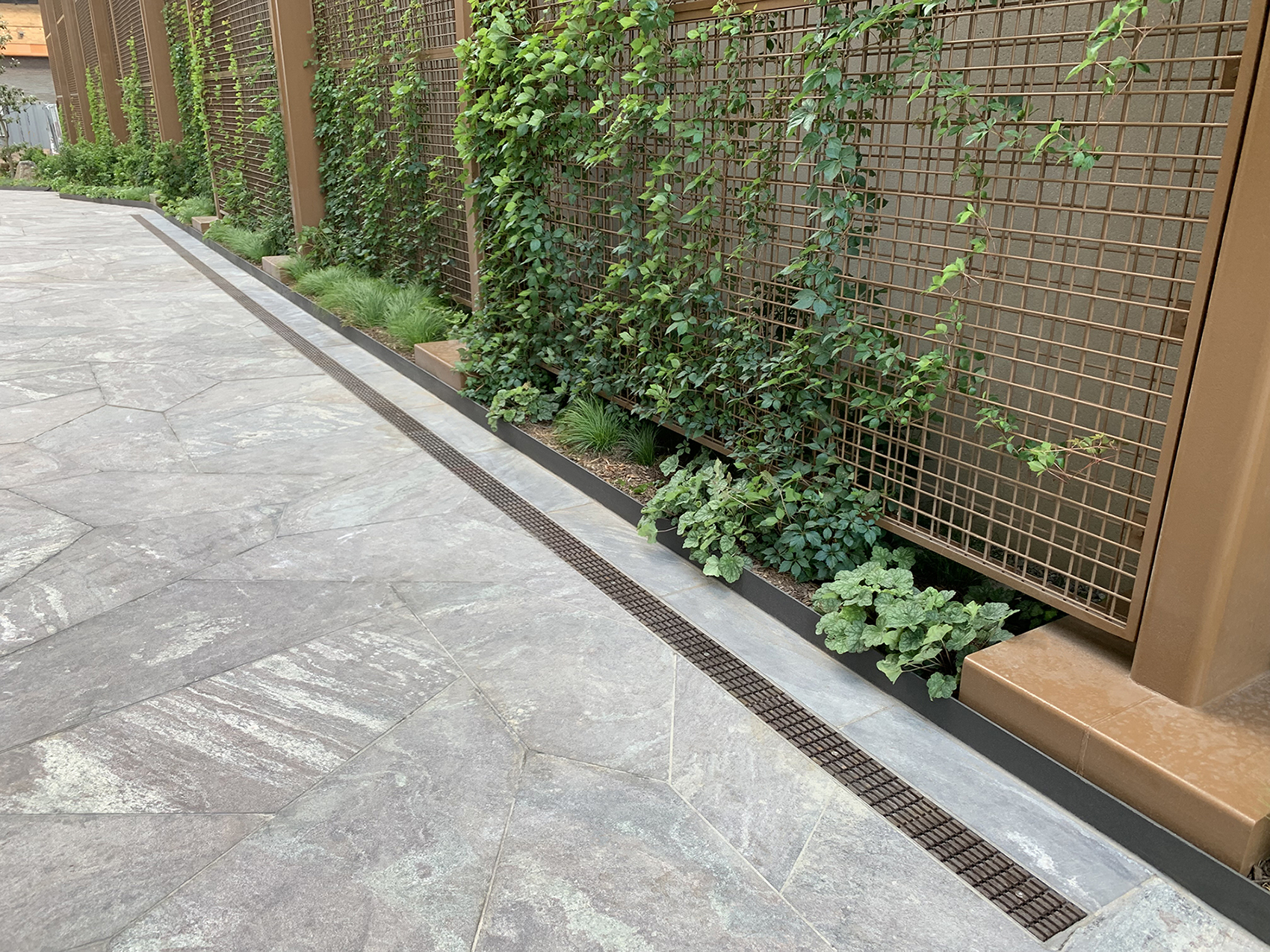

Decorative cast iron trench grate in Plex pattern in front of living green wall

Download photo

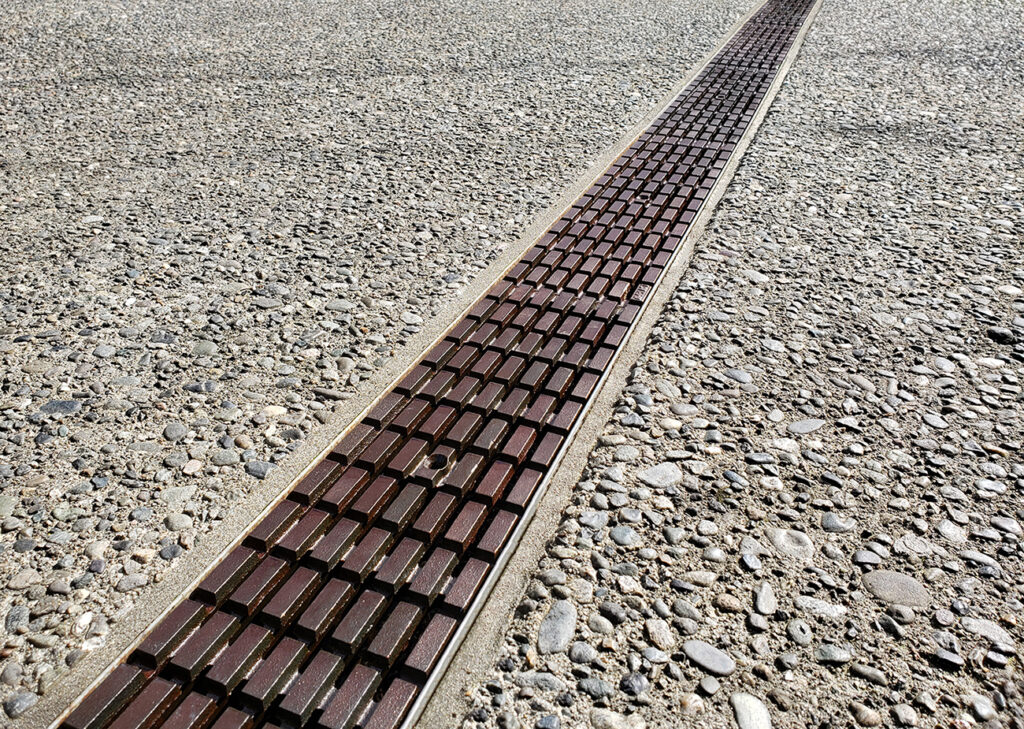

Decorative cast iron trench grate in Plex pattern installed in pavers

Download photo
