Explora

Description:

Our Explora pattern features a modular, industrial design motif that lends itself well to unique applications, such as grated walkways, large tree grate arrays and more.



Size Options:
Similar Products:

Detailed Specifications:

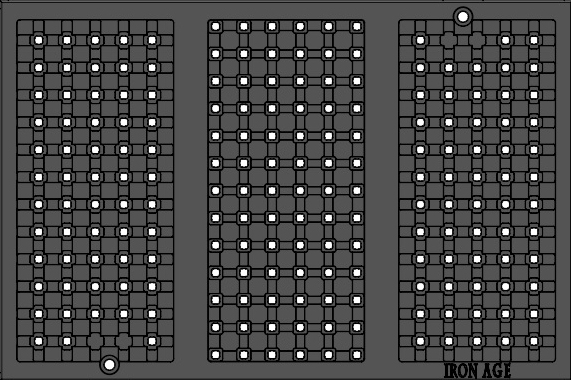

Name / Design Explora 12" x 18" Heel-Proof
Product ID EXX12-18I99HP
Dimensions 11.87" x 17.87" x 1.25"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 20
Gallons Per Minute (GPM) 16.09
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-112-766
Name / Design Explora 12" x 24"
Product ID EXX12-24I99
Dimensions 11.88" x 23.91" x 1.25"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 29.74
Free Drain Area 15.48%
Gallons Per Minute (GPM) 57.58
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

Photo Gallery:

explora-12-x-18-heelproof-e

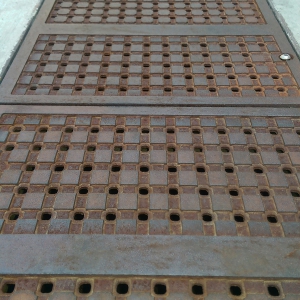

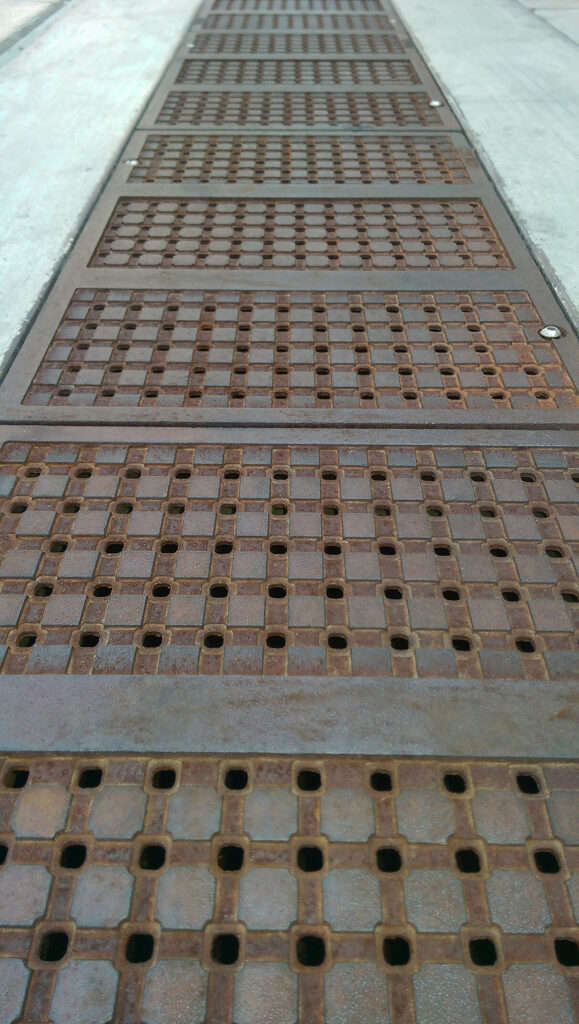

Explora 12″ x 18″ trench grate, raw cast ductile iron.


Download photo
Explora 12x24 (3) E

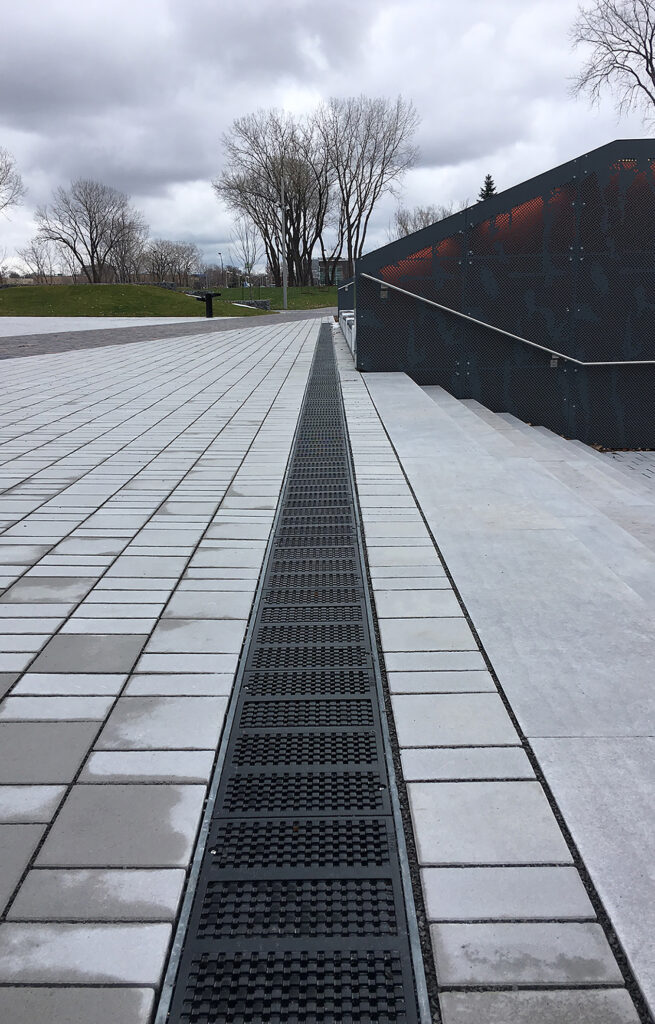

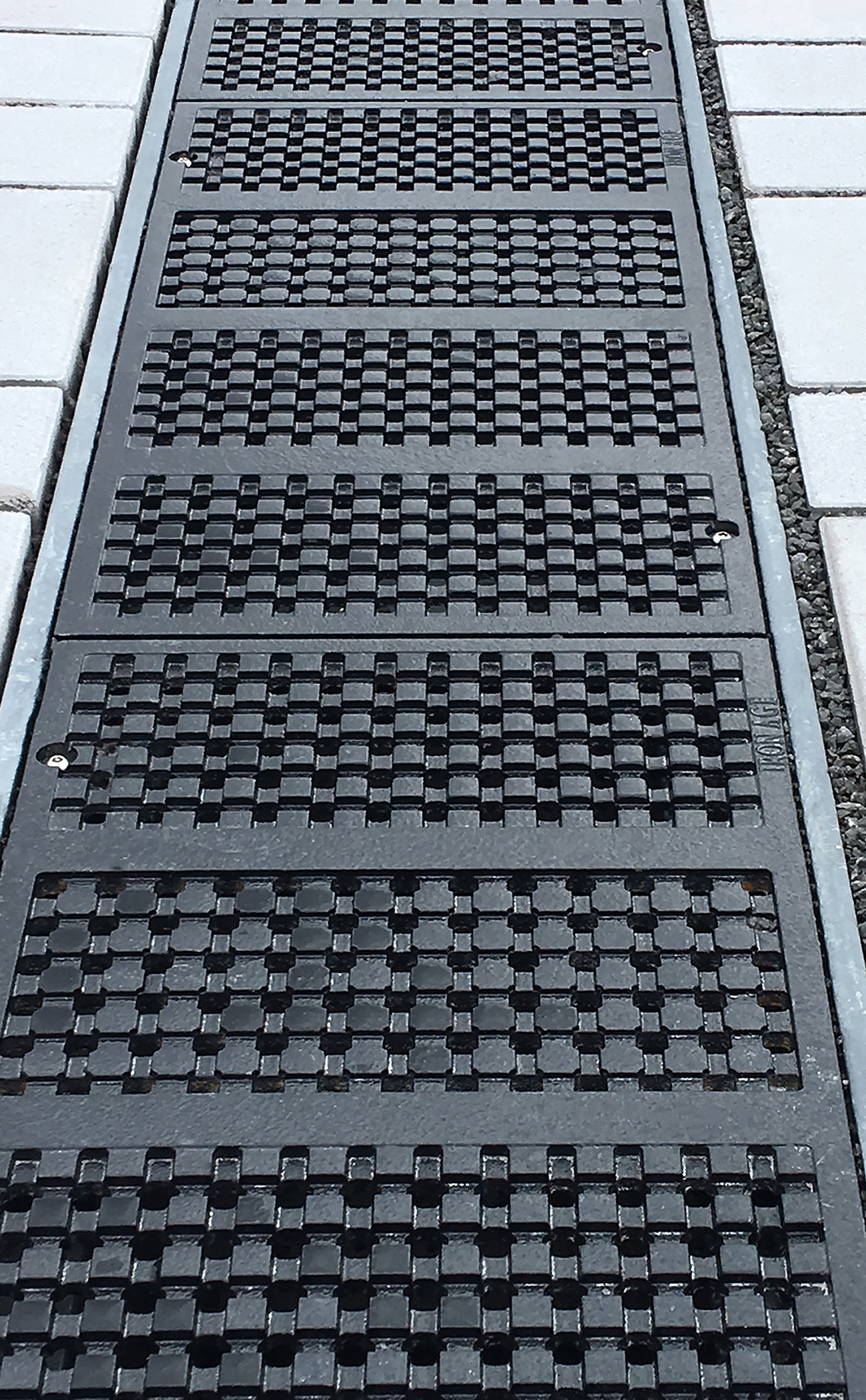

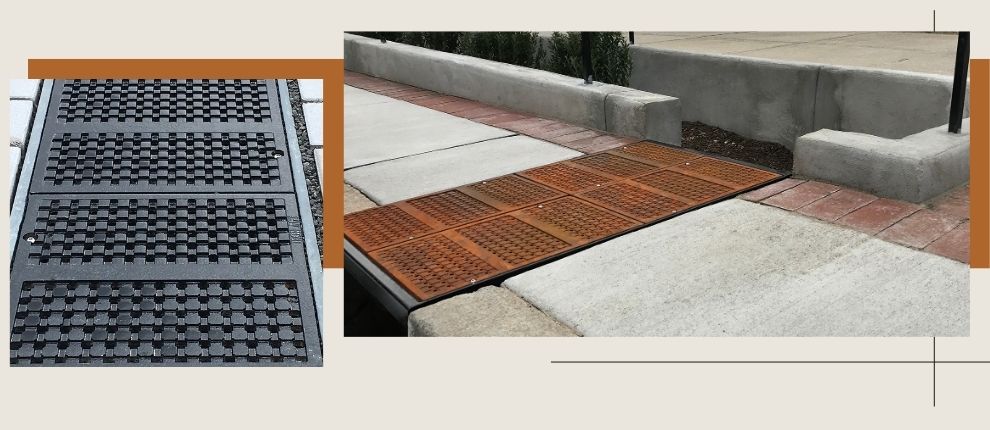

Explora 12″ x 24″ trench grate, cast iron with black powder coat finish.


Download photo
Explora 12x24 (2) E

Explora 12″ x 24″ trench grate, cast iron with black powder coat finish.


Download photo
Explora 12x24 E

Explora 12″ x 24″ trench grate, cast iron with black powder coat finish.


Download photo
Explora 12x24 (4) E

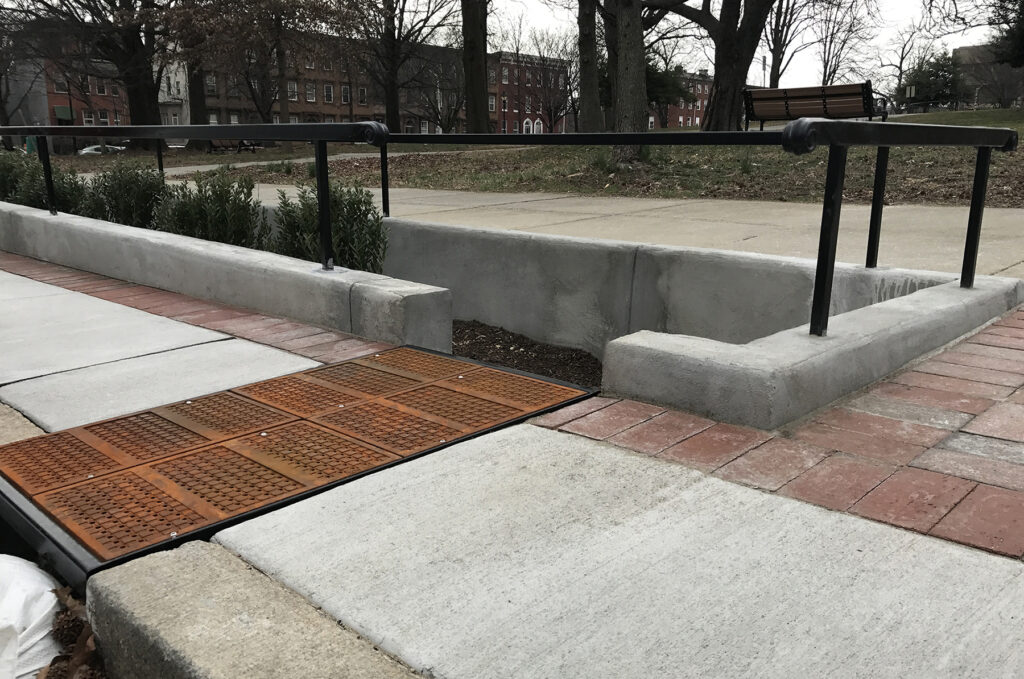

Explora 12″ x 24″ trench grate/curb inlet, raw cast ductile iron.


Download photo
Explora 6x6 & 12x24 (2) E

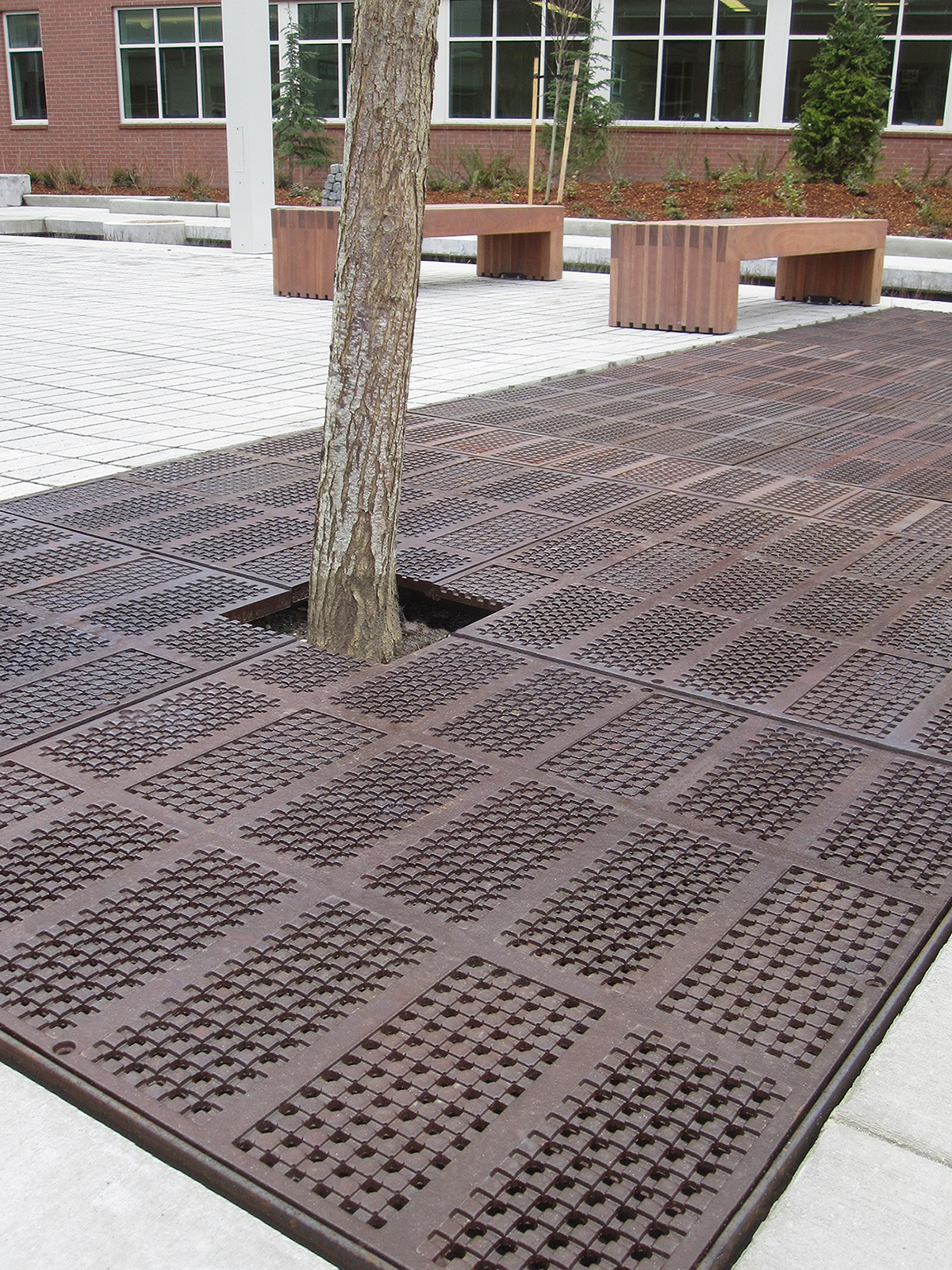

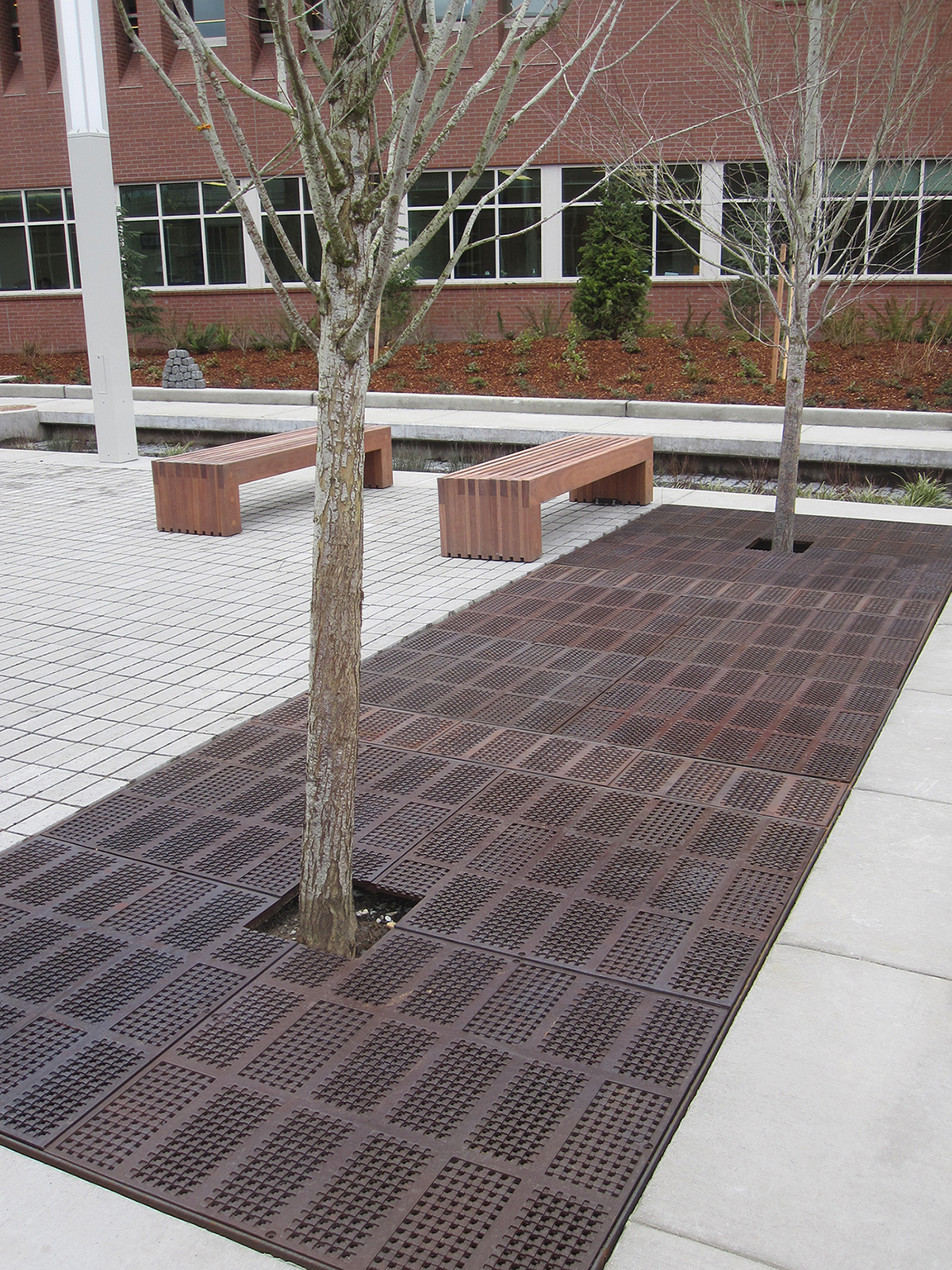

Explora 12″ x 24″ trench grates, arrayed with 6′ Sq. Explora tree grates. Baked-on-oil finish. Project Location: Bellevue High School, Bellevue, WA.


Download photo
Explora 6x6 & 12x24 (2) E

Explora 12″ x 24″ trench grates, arrayed with 6′ Sq. Explora tree grates. Baked-on-oil finish. Project Location: Bellevue High School, Bellevue, WA.


Download photo
Explora 6x6 & 12x24 E

Explora 12″ x 24″ trench grates, arrayed with 6′ Sq. Explora tree grates. Baked-on-oil finish. Project Location: Bellevue High School, Bellevue, WA.


Download photo
