Madras

Description:

We’ve designed the Madras with staggered spacing and slight variations in surface depth, creating a unique, eye-catching take on your typical linear grate.

Size Options:
Similar Products:

Detailed Specifications:

Name / Design Madras 5" x 20" Heel Proof
Product ID MDA5-20I21HP
Dimensions 4.81" x 19.56" x .81"
Drain Manufacturer
ABT®
ACO™
MEA®
Fits ABT® PolyDrain®
ACO™ K100, K100S, KS100
MEA® 1000 Series
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 9.28
Free Drain Area 15.59%
Gallons Per Minute (GPM) 20.42
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-246-528

Photo Gallery:

Cast iron trench drain grate in decorative Madras pattern

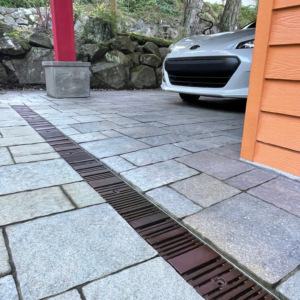

Madras 5″ x 20″ Heel Proof trench grate, cast ductile iron with Baked-On-Oil Finish.


Download photo
Madras_5_x_20_(2)_E

Madras 5″ x 20″ Heel Proof trench grate, cast ductile iron with Baked-On-Oil Finish.


Download photo
Madras_5_x_20_(3)_E

Madras 5″ x 20″ Heel Proof trench grate, cast ductile iron with Baked-On-Oil Finish.


Download photo
Madras_5_x_20_(4)_E

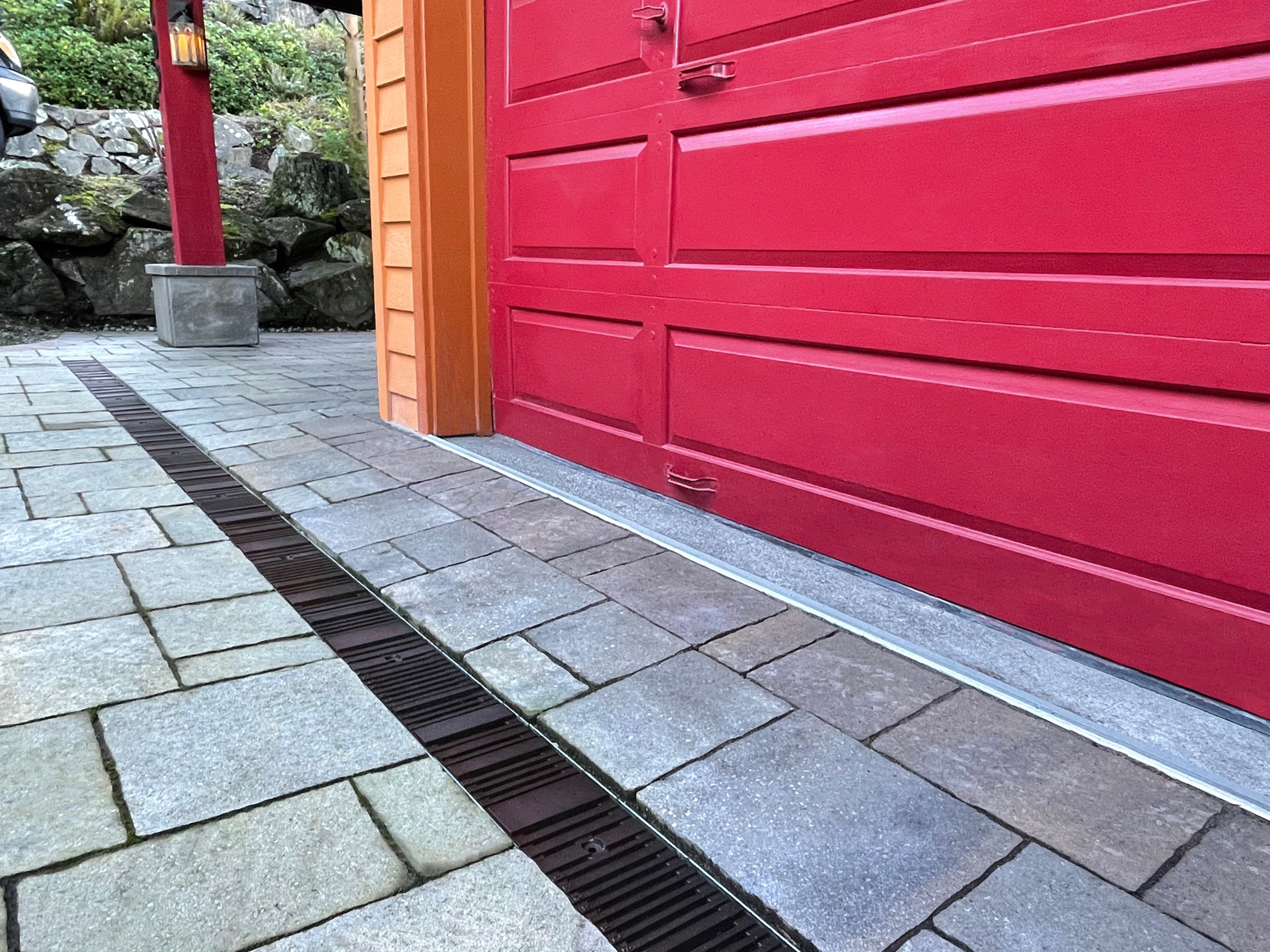

Madras 5″ x 20″ Heel Proof trench grate, cast ductile iron with Baked-On-Oil Finish.


Download photo
