Locust

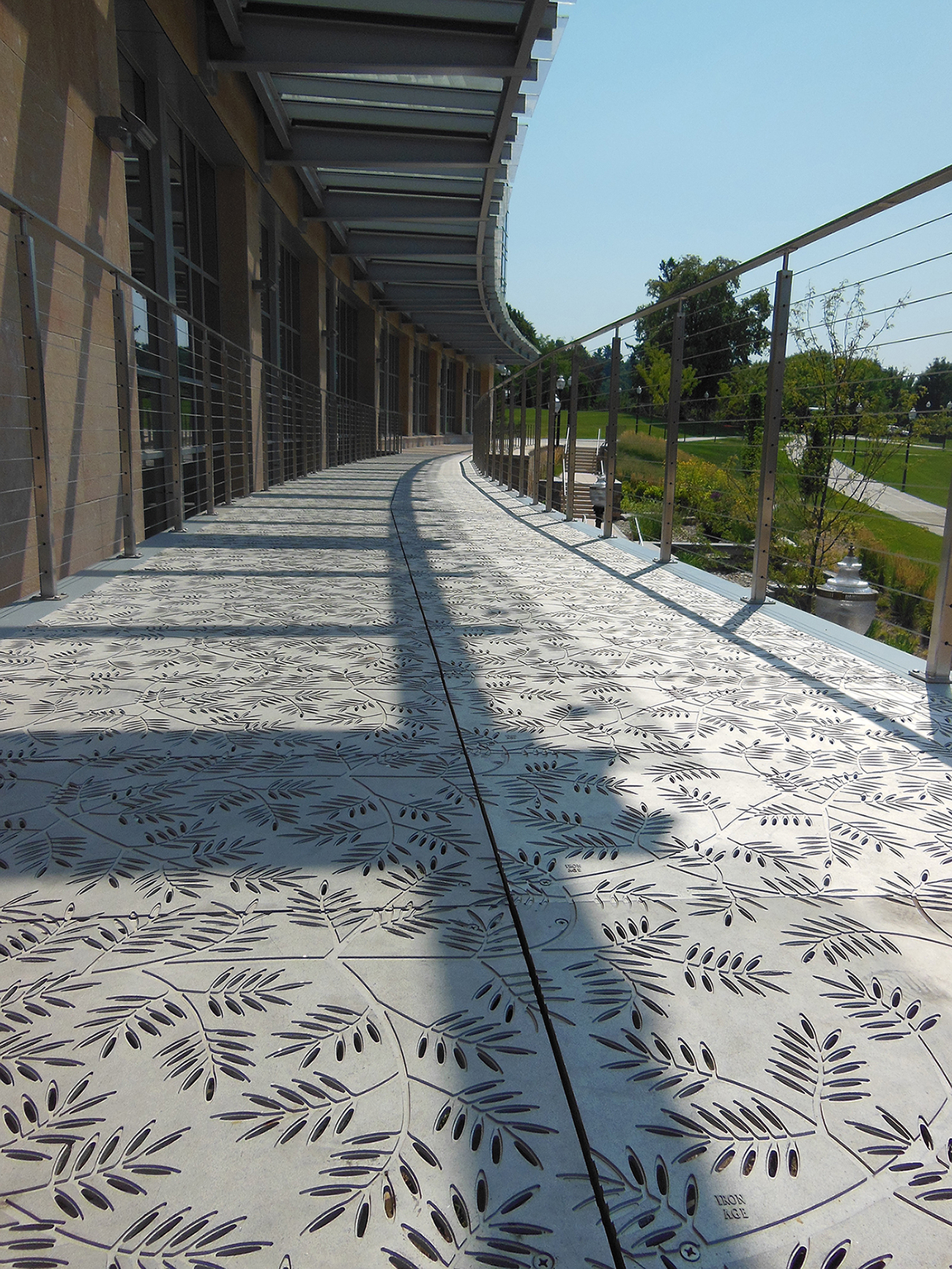

Cast aluminum grate panels in decorative Locust pattern by Iron Age Designs. Arrayed as pedestrian bridge.

Description:

The popularity of our Locust pattern points to a natural affinity for organic design elements. Available in a wide range of shapes and sizes, these signature grates are designed to be combined into any number of unique applications.

Detailed Specifications:

Name / Design Locust 20" x 40" Heel Proof, PEDESTRIAN LOAD ONLY
Product ID LX20-40I99HP
Dimensions 19.87" x 40" x 1.25"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 80
Free Drain Area 8.4%
Gallons Per Minute (GPM) 87.46
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Locust 24" x 48" Heel Proof, PEDESTRIAN LOAD ONLY
Product ID LX24-48I99TGHPFW
Dimensions 23.94" x 47.88" x 1"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 129
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze

Photo Gallery:

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
