Interlaken

Description:

A classically-inspired circle and diamond pattern gives our signature Interlaken design a timeless appeal, along with the ability to complement a wide variety of architectural applications.







Size Options:
Similar Products:

Detailed Specifications:

Name / Design Interlaken 3" Wide Heel Proof, 12'-9" CLR
Product ID IR3-19I9913HP
Dimensions 3.47" x 19.80" x .63"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 4.26
Free Drain Area 7.42%
Gallons Per Minute (GPM) 6.59
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Interlaken 3" Wide Heel Proof, 17'-3" CLR
Product ID IR3-19I9917HP
Dimensions 3.47" x 19.27" x .63"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 4.17
Free Drain Area 7.48%
Gallons Per Minute (GPM) 6.50
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Interlaken 5" Wide, 6'-0" CLR
Product ID IR5-19I996
Dimensions 4.81" x 19.28" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 5" Wide, 10'-0" CLR
Product ID IR5-20I9910
Dimensions 4.81" x 19.56" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 5" Wide Heel Proof, 10'-3" CLR
Product ID IR5-20I9910HP
Dimensions 4.81" x 19.62" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 7
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 5" Wide Heel Proof, 13'-5" CLR
Product ID IR5-20I9913HP
Dimensions 4.81" x 19.64" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 7
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 5" Wide, 13'-6" CLR
Product ID IR5-19I9914
Dimensions 4.83" x 19.53" x .81"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 8.92
Free Drain Area 14.61%
Gallons Per Minute (GPM) 17.78
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 5" Wide, 18'-1" CLR
Product ID IR5-20I9918
Dimensions 4.81" x 19.62" x .81"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Free Drain Area 21%
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 5" Wide, 30'-2.34" CLR
Product ID IR5-19I9930
Dimensions 4.83" x 19.53" x .81"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 8.99
Free Drain Area 14.63%
Gallons Per Minute (GPM) 17.64
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 5" Wide, 36'-2" CLR
Product ID IR5-20I9936
Dimensions 4.81" x 19.61" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Free Drain Area 21%
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 5" Wide Heel Proof, 37'-3" CLR
Product ID IR5-20I9937HP
Dimensions 4.61" x 19.44" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 7
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 5" Wide, 47'-7" CLR
Product ID IR5-20I9947
Dimensions 4.81" x 19.63" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Free Drain Area 21%
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 6" Wide, 1'-9" CLR
Product ID IR6-70I992
Dimensions 5.88" x 70" x 1"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 38.62
Free Drain Area 20.42%
Gallons Per Minute (GPM) 104.00
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 6" Wide, 3'-2" CLR
Product ID IR6-20I993
Dimensions 6" x 21.12" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 12
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 6" Wide, 5'-7" CLR
Product ID IR6-24I996
Dimensions 5.88" x 22.22" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 12
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 6" Wide, 7'-0" CLR
Product ID IR6-24I997
Dimensions 5.88" x 24.71" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 13
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 6" Wide, 10'-4" CLR
Product ID IR6-18I9910
Dimensions 5.88" x 17.97" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 10
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 8" Wide, 48'-7.375" CLR
Product ID IR8-20I9949
Dimensions 7.94" x 19.93" x .75"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 13.31
Free Drain Area 17.85%
Gallons Per Minute (GPM) 36.75
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 11" Wide, 8-0" CLR
Product ID IR11-19I998
Dimensions 11.25" x 18.70" x .75"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 18
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 12" Wide, 4'-7" CLR
Product ID IR12-17I995
Dimensions 11.99" x 18.94" x 1"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 22.85
Free Drain Area 15.69%
Gallons Per Minute (GPM) 42.03
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Interlaken 12" Wide, 9'-6" CLR
Product ID IR12-17I9910
Dimensions 11.88" x 17.16" x 1"
Drain Manufacturer
Iron Age Designs®
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 18
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending
Name / Design Interlaken 12" Wide, 15'-6" CLR
Product ID IR12-17I9915
Dimensions 11.88" x 17.54" x .1.03"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 25
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Cast Ductile Iron
Name / Design Interlaken 12" Wide Heavy-Duty, 34"-0" CLR
Product ID IR12-19I9934HD
Dimensions 11.88" x 19.52" x 1.00"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 27.25
Free Drain Area 15.9%
Gallons Per Minute (GPM) 47.60
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Interlaken 12" Wide Heavy-Duty, 67'-0" CLR
Product ID IR12-19I9967HD
Dimensions 11.83" x 19.47" x 1.00"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 28.60
Free Drain Area 15.89%
Gallons Per Minute (GPM) 47.97
Recycled Content 80%
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Interlaken 12" Wide Heavy-Duty, 113'-0" CLR
Product ID IR12-19I99113HD
Dimensions 11.88" x 19.42" x 1.00"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 27.51
Free Drain Area 15.88%
Gallons Per Minute (GPM) 47.78
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze

Photo Gallery:

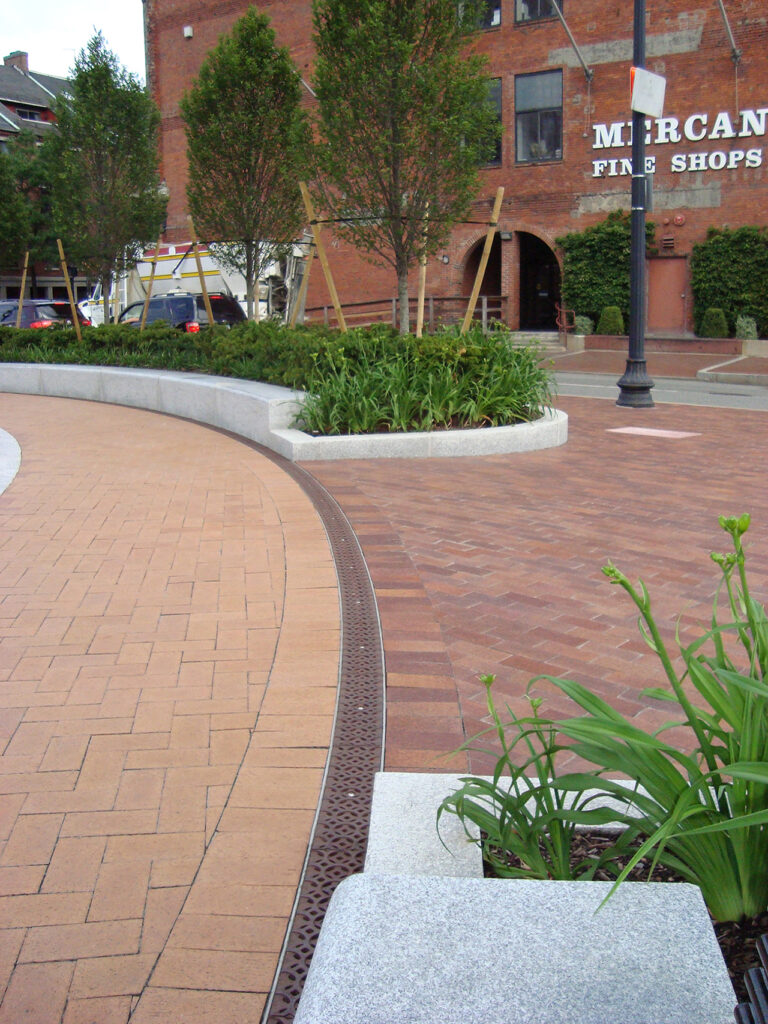

interlaken-5in-radius-2-e

Interlaken 5″ wide radiused trench grate, with baked-on-oil finish. Project: Armenian Heritage Park, Boston, MA.


Download photo
interlaken-5in-radius-3-e

Interlaken 5″ wide radiused trench grate, with baked-on-oil finish. Project: Armenian Heritage Park, Boston, MA.


Download photo
interlaken-5in-radius-4-e

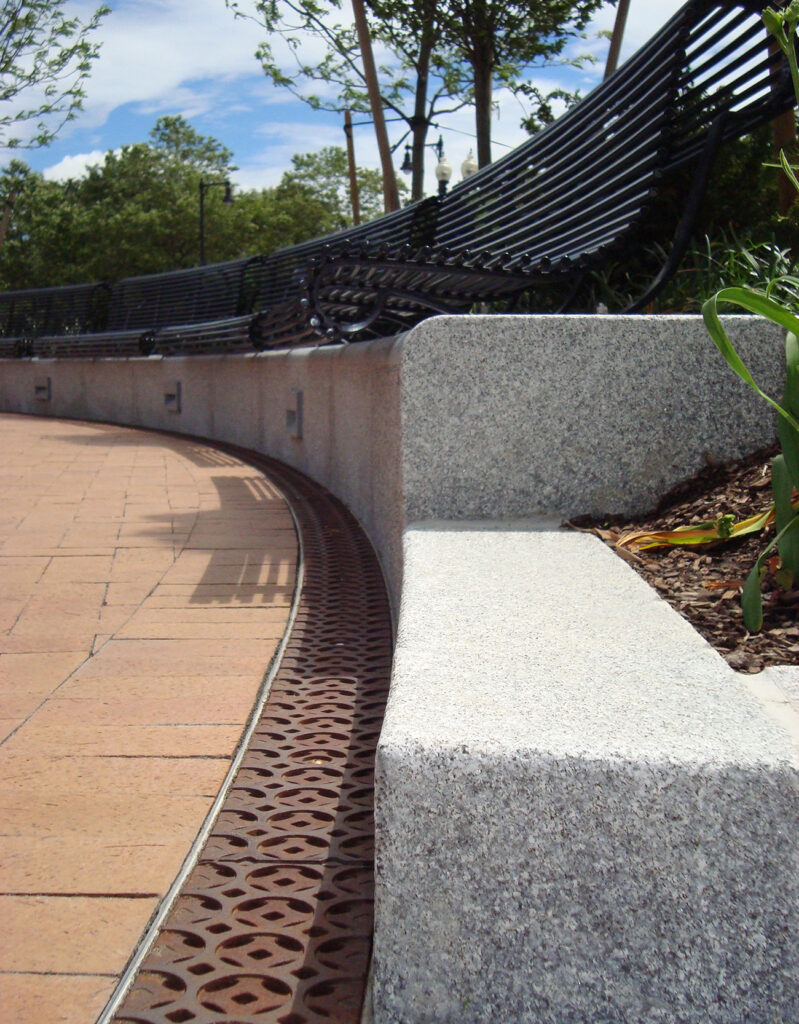

Interlaken 5″ wide radiused trench grate, with baked-on-oil finish. Project: Armenian Heritage Park, Boston, MA.


Download photo
interlaken-5in-radius-5-e

Interlaken 5″ wide radiused trench grate, with our baked-on-oil finish. Project: Armenian Heritage Park, Boston, MA.


Download photo
interlaken-5in-radius-e

Interlaken 5″ wide radiused trench grate, with our baked-on-oil finish. Project: Armenian Heritage Park, Boston, MA.


Download photo
Decorative cast iron radius trench grates installed in spray park

Interlaken 5″ wide radiused trench grate, raw cast iron. Project: South End Recreational Area Campus, Tacoma, WA


Download photo
interlaken-5in-radius-spray-park-e

Interlaken 5″ wide radiused trench grate, raw cast iron. Project: South End Recreational Area Campus, Tacoma, WA


Download photo
Cast aluminum radius trench drain grates in decorative Interlaken pattern, installed around flagpole

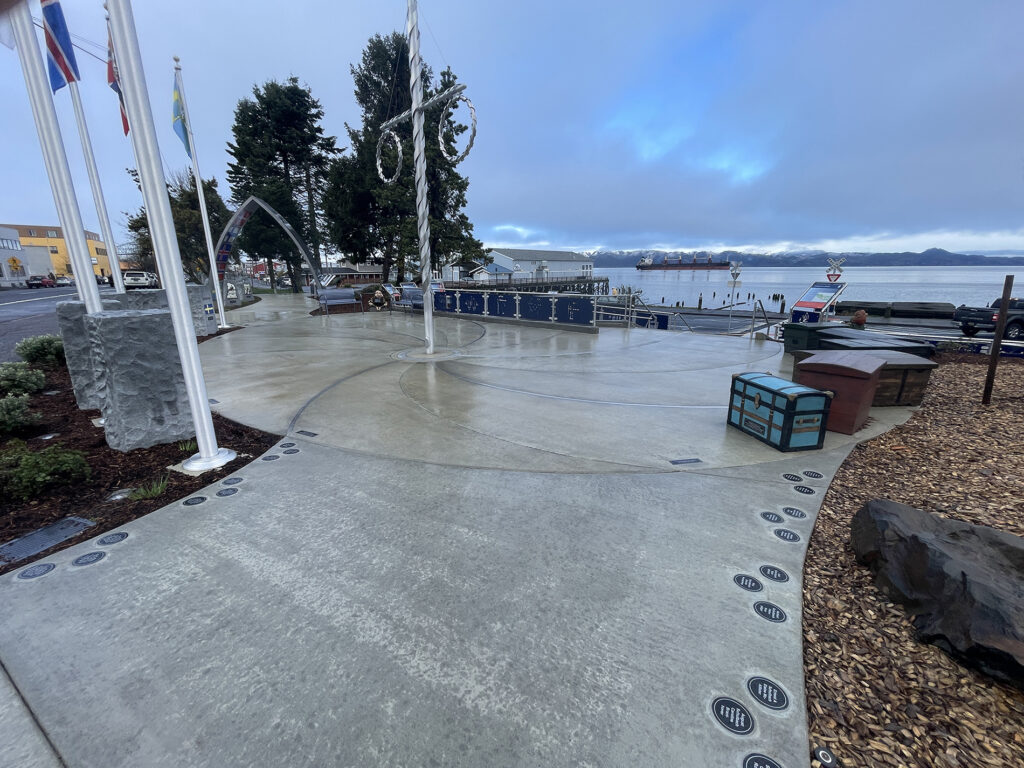

Interlaken 5″ wide radius trench grate, heel proof, raw cast aluminum. DESIGN: The West Studio. INSTALLATION: Rickenbach Construction, Inc. PROJECT: Astoria Nordic Heritage Park. LOCATION: Astoria, OR.


Download photo
Cast aluminum radius trench drain grates in decorative Interlaken pattern

Interlaken 5″ wide radius trench grate, heel proof, raw cast aluminum. DESIGN: The West Studio. INSTALLATION: Rickenbach Construction, Inc. PROJECT: Astoria Nordic Heritage Park. LOCATION: Astoria, OR.


Download photo
interlaken-6in-radius-2-e

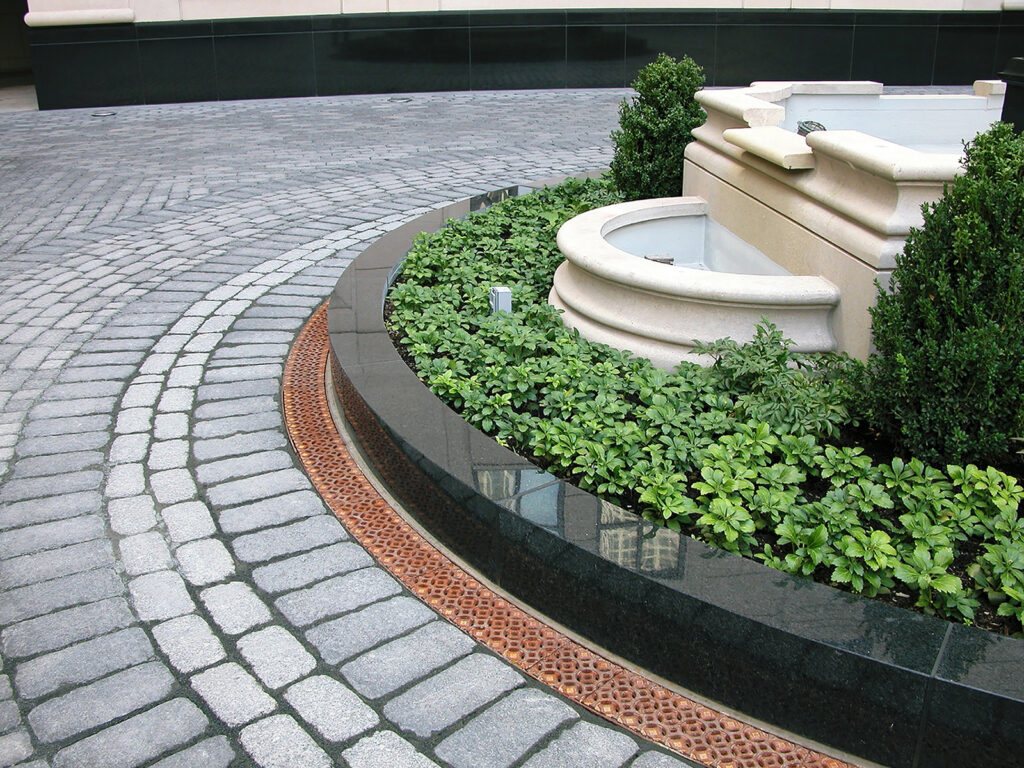

Interlaken 6″ wide radiused trench grate, raw cast iron. Project: Elysian Hotel, Chicago, IL.


Download photo
interlaken-6in-radius-e

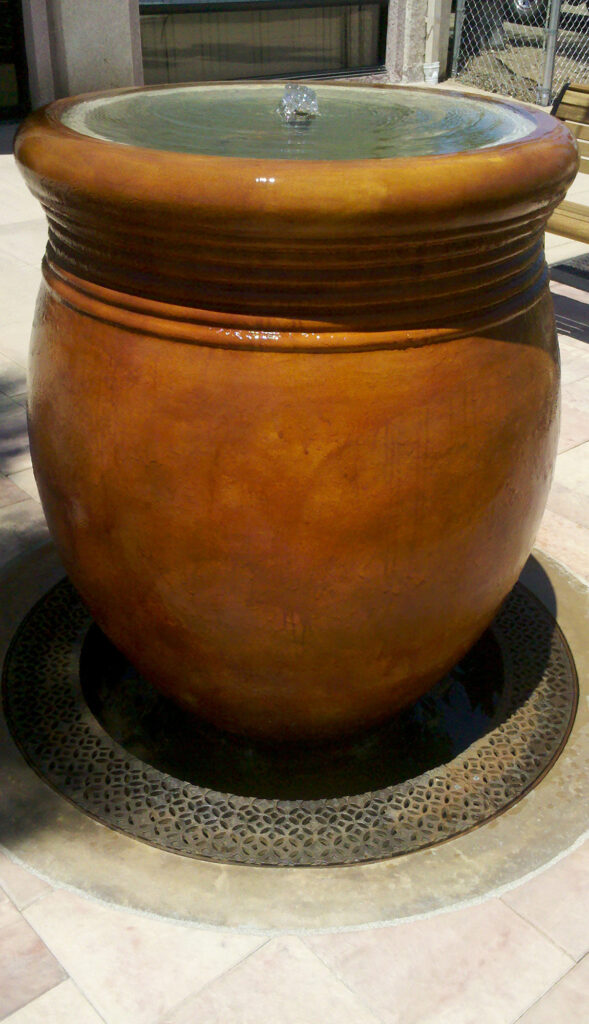

Interlaken 6″ wide radiused trench grate with baked-on-oil finish. DESIGN: AECOM-San Diego. Project Location: City of Escondido, Mercado District.


Download photo
interlaken-12in-radius-bronze-2-e

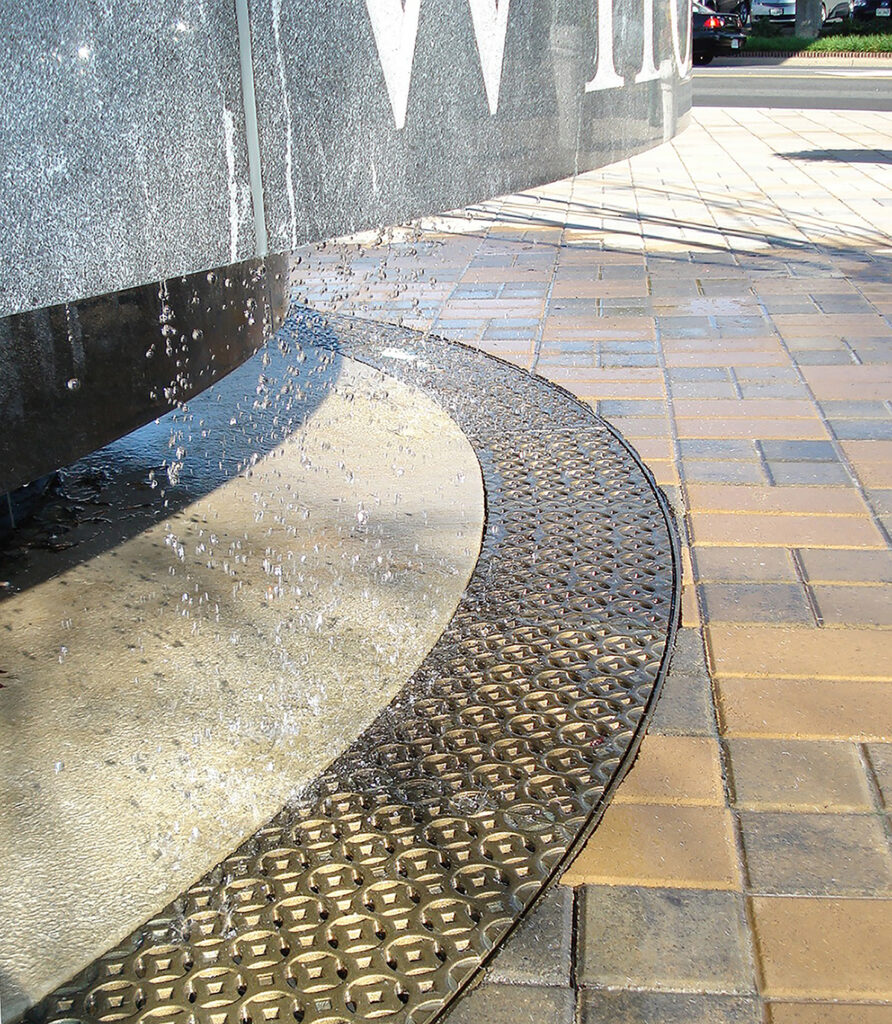

Interlaken 11″ wide radiused trench grate, raw cast bronze. DESIGN: Lardner/Klein Landscape Architects. PROJECT: Vienna Town Green.  LOCATION: Vienna, VA.


Download photo
interlaken-12in-radius-bronze-e

Interlaken 11″ wide radiused trench grate, raw cast bronze. DESIGN: Lardner/Klein Landscape Architects. PROJECT: Vienna Town Green.  LOCATION: Vienna, VA.


Download photo
interlaken-12in-radius-bronze-wo-e

Interlaken 11″ wide radiused trench grate, raw cast bronze. DESIGN: Lardner/Klein Landscape Architects. PROJECT: Vienna Town Green.  LOCATION: Vienna, VA.


Download photo
interlaken-12in-radius-e

Interlaken 12″ wide radiused trench grate, heel-proof, raw ductile iron. Project: Hilton Orlando’s outdoor event space, The Promenade. Location: Orlando, FL




Download photo
Filter Products
  • By Category
  • By Design
  • By Size
  • By Drain System
Reset Filters

Learn more about radius considerations and search for grates by Radius & Width

Contact Us Or, Find a Rep Near You

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
