Divisadero

Description:

With concentric circles in the center radiating outward to increasingly squared-off versions of themselves, our Divisadero pattern is a modernist take on traditional design.



Size Options:
Similar Products:

Detailed Specifications:

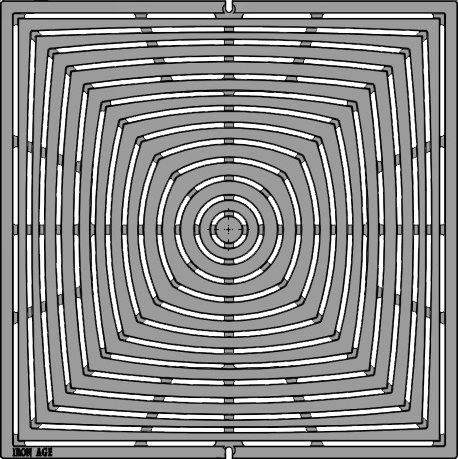

Name / Design Divisadero 24" Sq. Heel Proof, Pedestrian Load Only
Product ID DIX24-24I99HP
Dimensions 23.81" x 23.81" x 1"
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 64
Free Drain Area 21%
Gallons Per Minute (GPM) 156.24
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA-2-007-104

Photo Gallery:

Divisadero 24x24 HP Trench E

Divisadero 24″ Sq. trench grate, cast iron with baked-on-oil finish. Project Location: Britannia Cove, South San Francisco, CA.


Download photo
Divisadero 24x24 HP (2) Trench E

Divisadero 24″ Sq. trench grate, cast iron with baked-on-oil finish. Project Location: Britannia Cove, South San Francisco, CA.


Download photo
Divisadero 24x24 HP (3) Trench E

Divisadero 24″ Sq. trench grate, cast iron with baked-on-oil finish. Project Location: Britannia Cove, South San Francisco, CA.


Download photo
Divisadero 24x24 HP (4) Trench E

Divisadero 24″ Sq. trench grate, cast iron with baked-on-oil finish. Project Location: Britannia Cove, South San Francisco, CA.


Download photo
