Rain

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

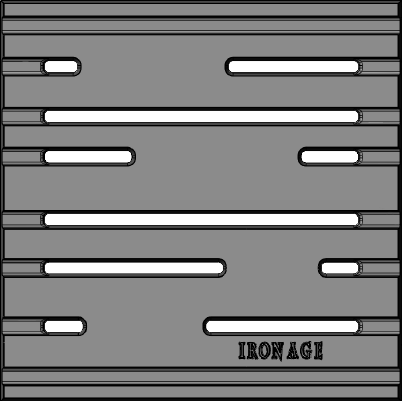

Name / Design	Rain 8" Sq. Heel Proof
Product ID	RNX8-8I99HP
Dimensions	8.00" x 8.00" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	7.88
Free Drain Area	9.72%
Gallons Per Minute (GPM)	12.74
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-297

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec
Name / Design	Rain 12" Sq. Heel Proof
Product ID	RNN12-12I12HP
Dimensions	11.63" x 11.63" x 1.13"
Drain Manufacturer	NDS®
Fits	NDS® 1200 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	15.68
Free Drain Area	18.81%
Gallons Per Minute (GPM)	33.30
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-783

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 17" Sq. Heel Proof
Product ID	RNN18-18I13HP
Dimensions	16.78" x 16.78" x 1"
Drain Manufacturer	NDS®
Fits	NDS® 1800 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	33.24
Free Drain Area	13.46%
Gallons Per Minute (GPM)	49.68
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-279

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec

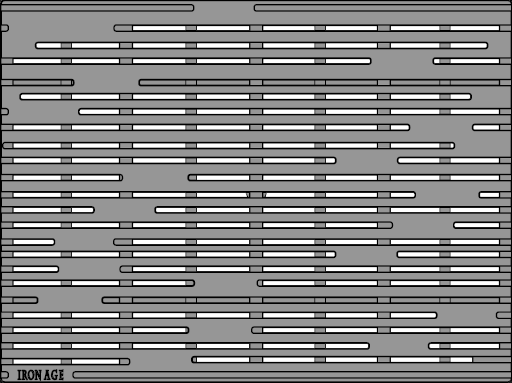

Name / Design	Rain 18" x 24" Heel Proof
Product ID	RNX18-24I61HP
Dimensions	17.81" x 23.71" x 1.5"
Drain Manufacturer	EJ™ Type 1 Catch Basin
Fits	Type 1 Catch Basin - EJ™ 7700 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	65
Free Drain Area	13.22%
Gallons Per Minute (GPM)	73.45
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-786

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 20" Sq. Heel Proof
Product ID	RNX20-20I99HP
Dimensions	20.00" x 20.00" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	54.28
Free Drain Area	12.81%
Gallons Per Minute (GPM)	67.13
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-165

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 21" x 20" Heel Proof
Product ID	RNX21-20I99HP
Dimensions	20.38" x 19.46" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	30.78
Free Drain Area	18.43%
Gallons Per Minute (GPM)	95.74
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 24" Sq. Heel Proof
Product ID	RNX24-24I99HP
Dimensions	23.8" x 23.8" x 1.5"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	63.83
Free Drain Area	14.73%
Gallons Per Minute (GPM)	97.85
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 24" x 36" Heel Proof PEDESTRIAN LOAD ONLY
Product ID	RNX24-36I99HPFW
Dimensions	23.92" 35.92" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	81
Free Drain Area	13.7%
Gallons Per Minute (GPM)	154.31
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

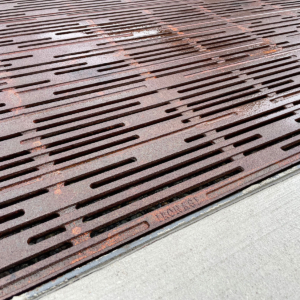

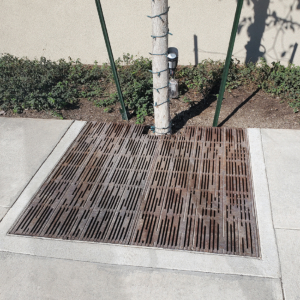

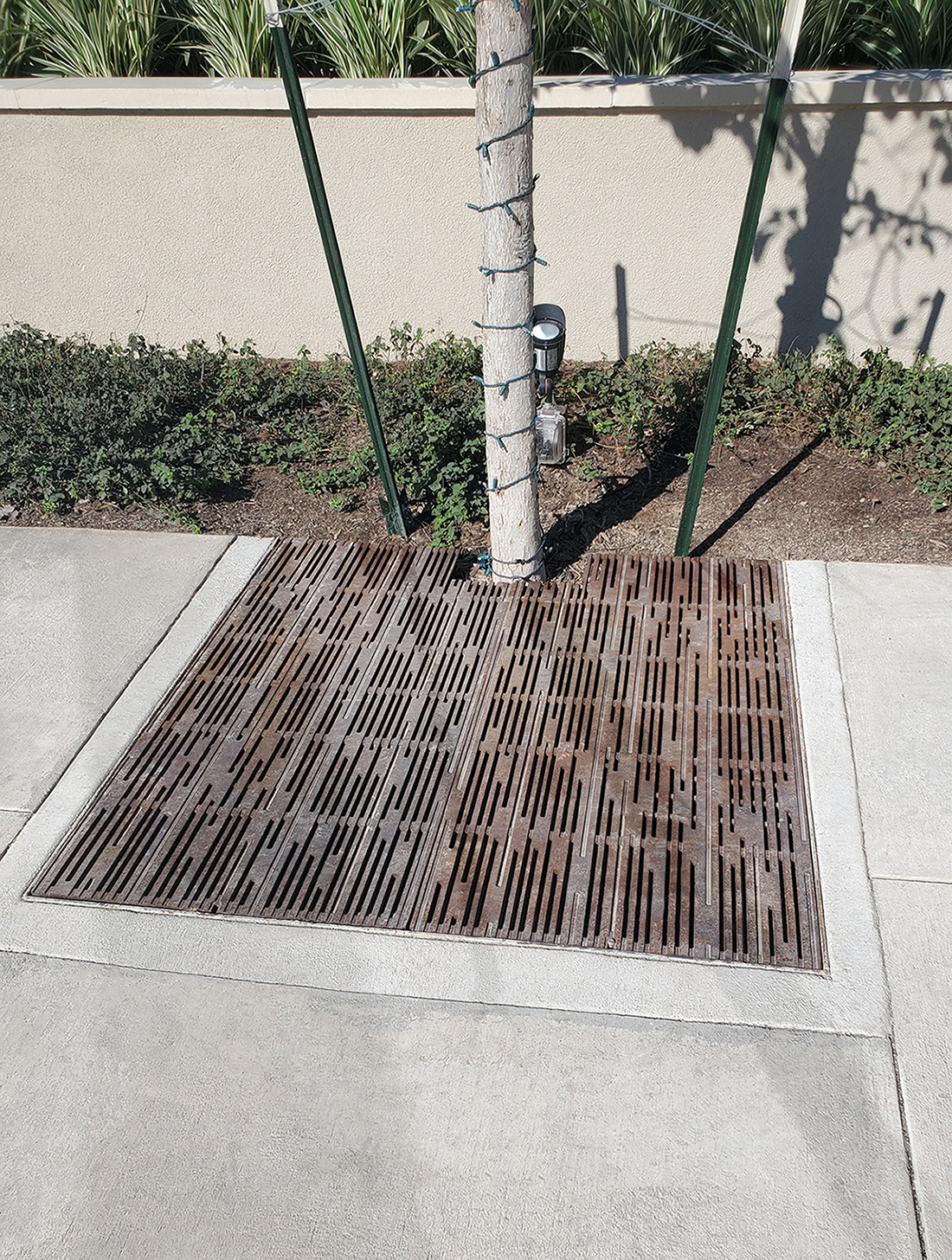

Name / Design	Rain 24" x 48" Heel Proof PEDESTRIAN LOAD ONLY
Product ID	RNX24-48I99HPFW
Dimensions	23.94" x 47.88" x 1"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	117.66
Free Drain Area	17.89%
Gallons Per Minute (GPM)	268.64
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-790

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

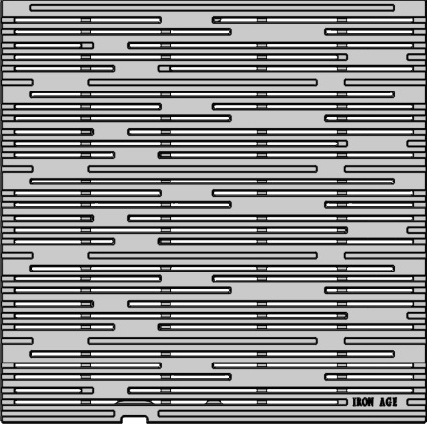

Name / Design	Rain 26" x 27" Heel Proof, Heavy-Duty
Product ID	RNX26-27I99HD
Dimensions	26.50" x 26.63" x 2.50"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	110
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-793

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

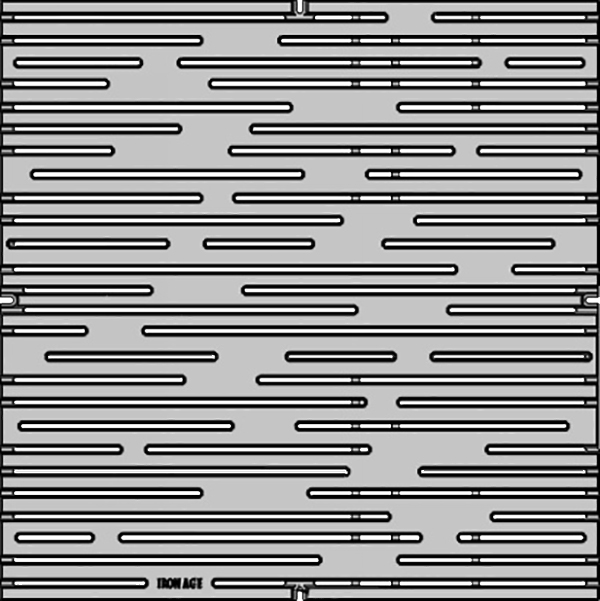

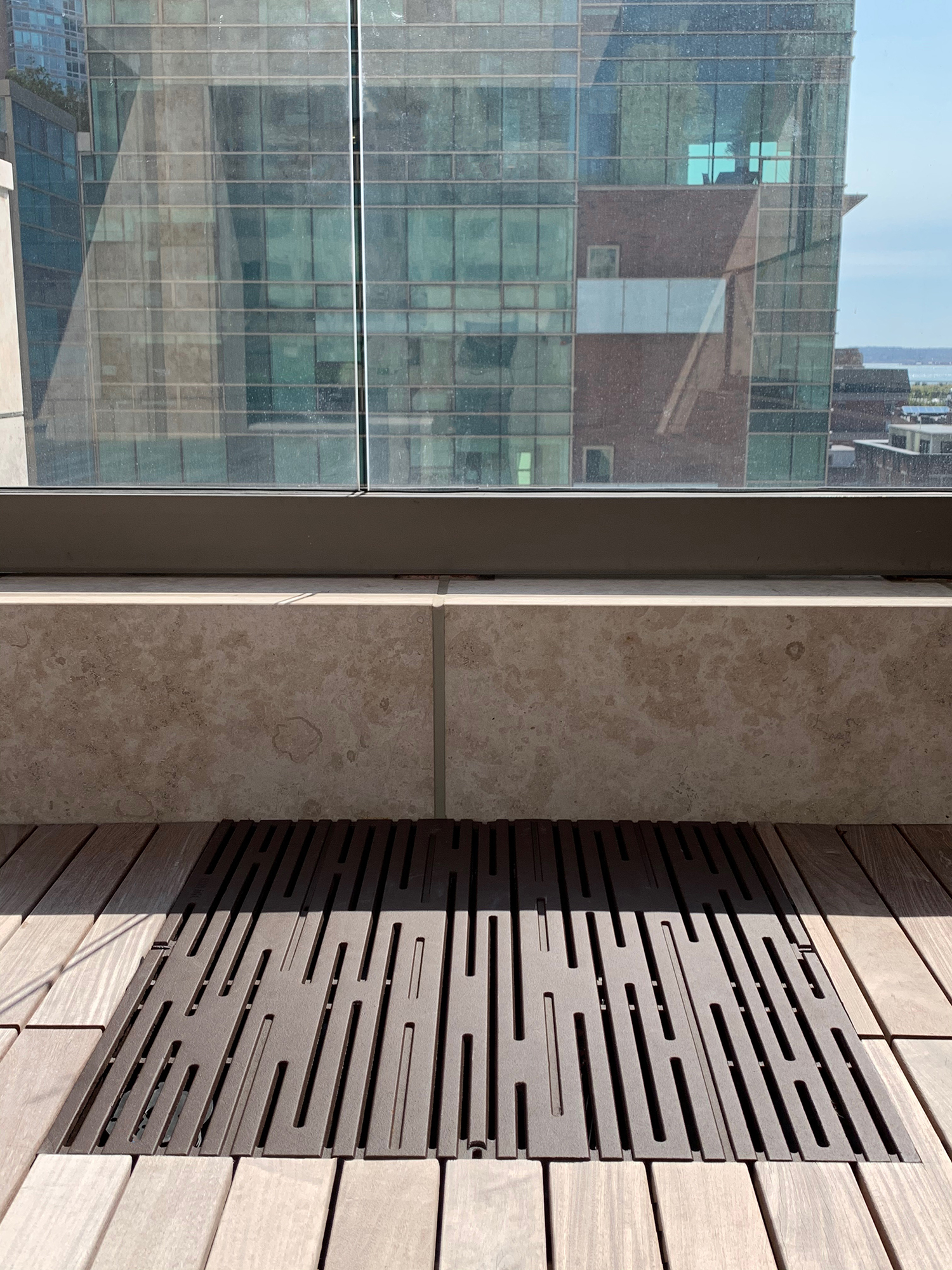

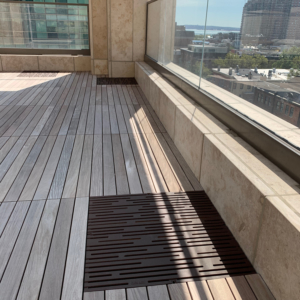

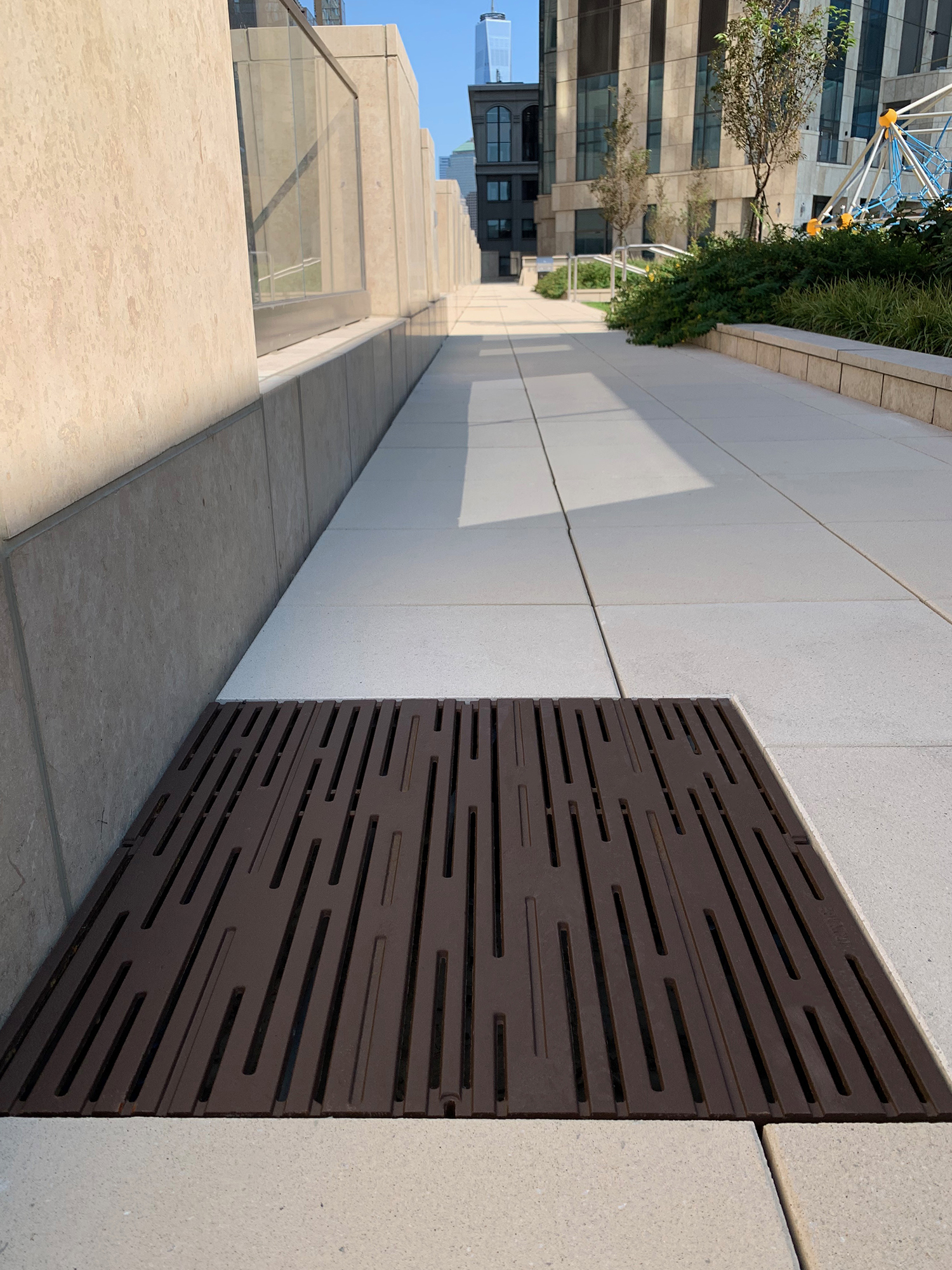

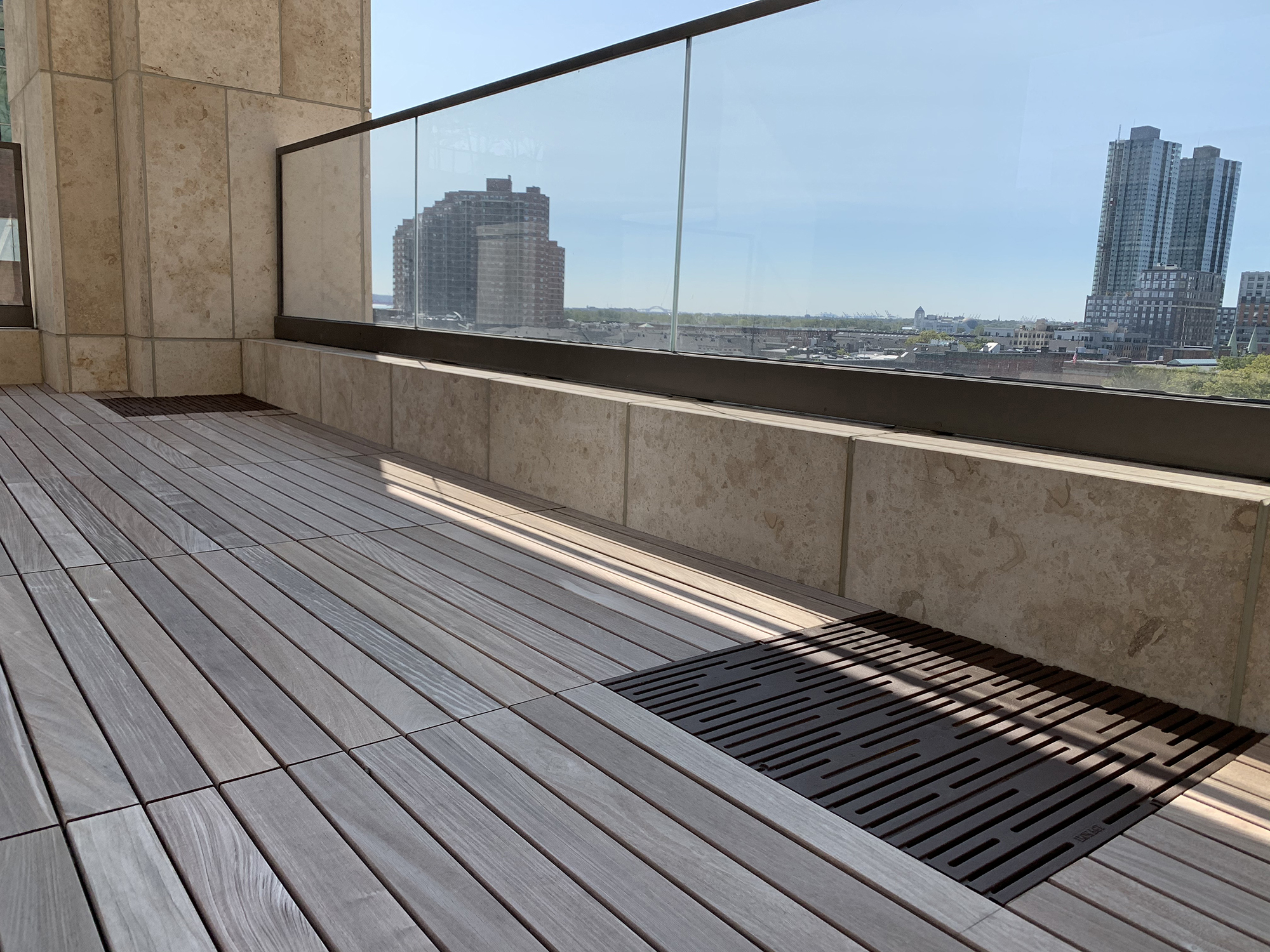

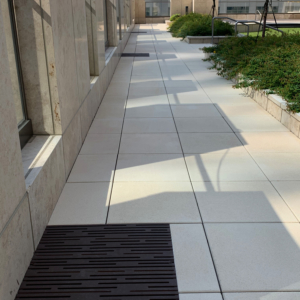

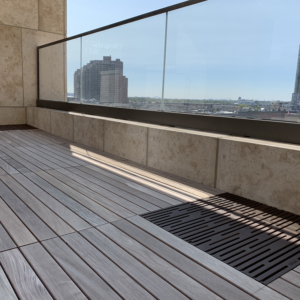

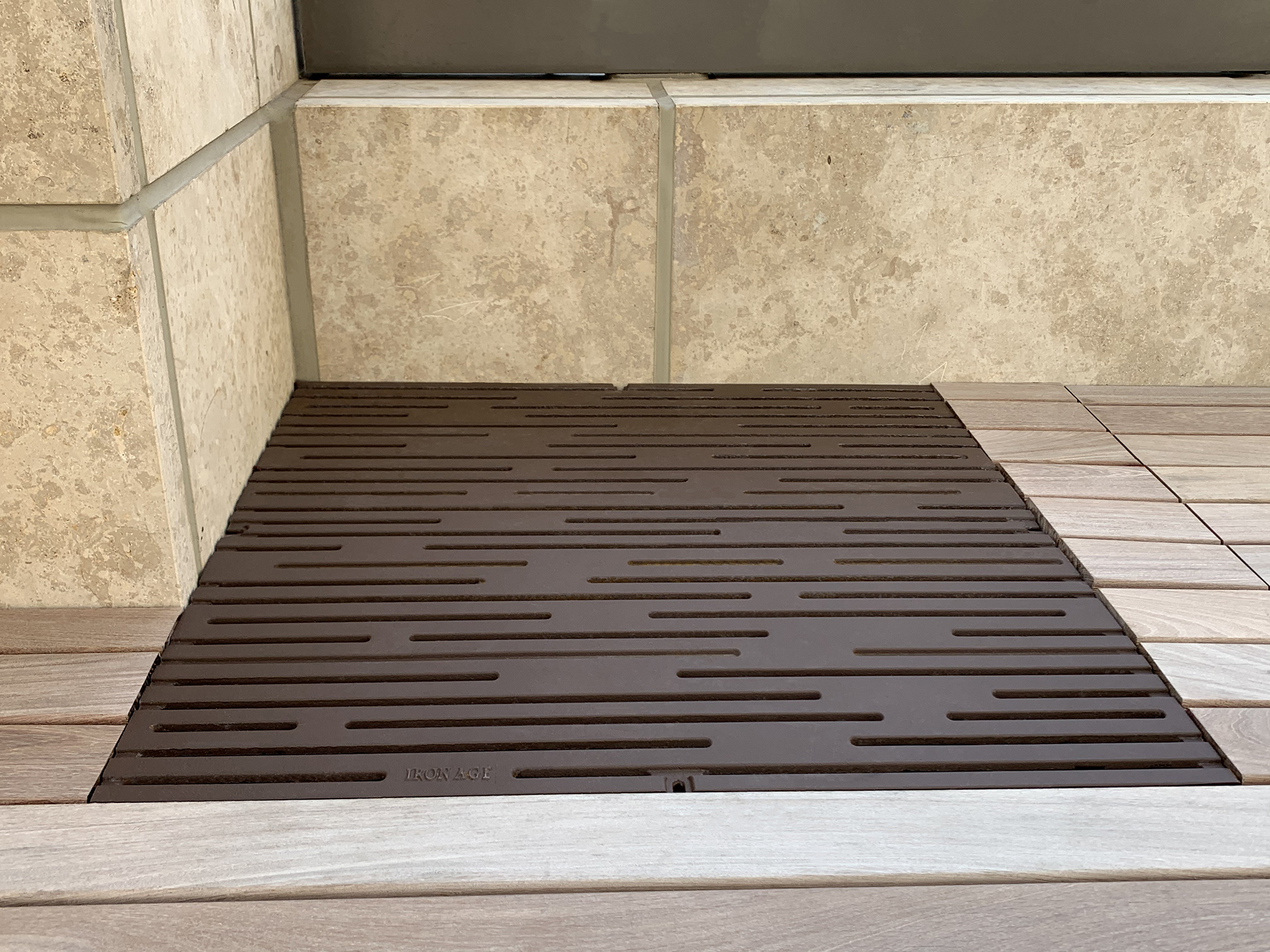

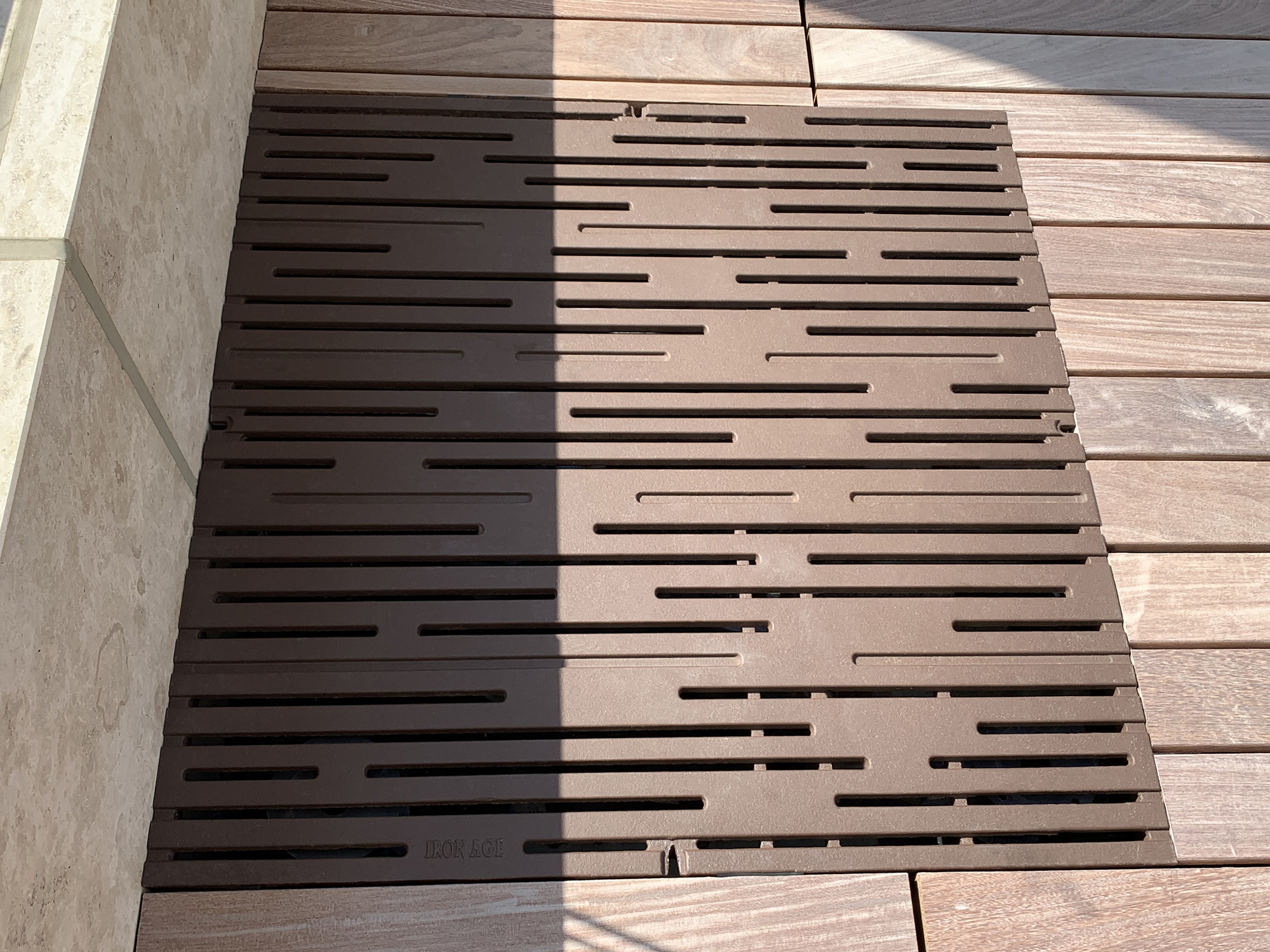

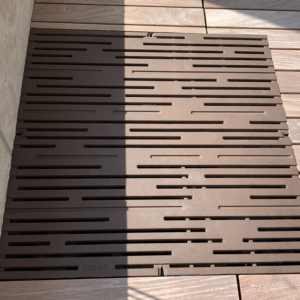

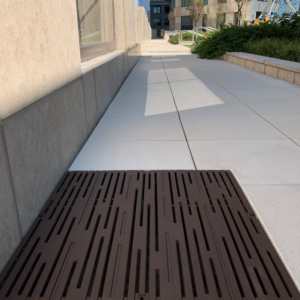

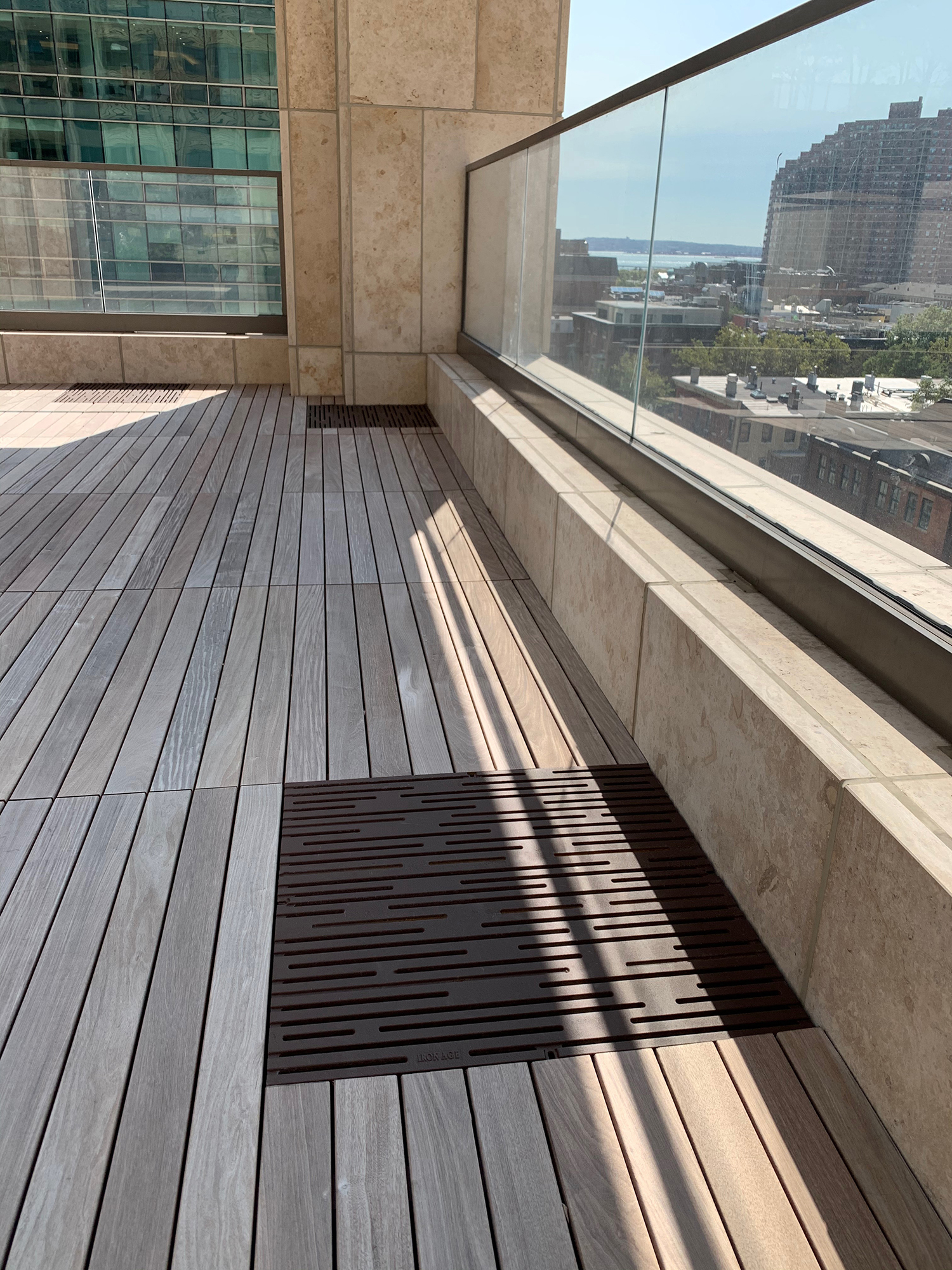

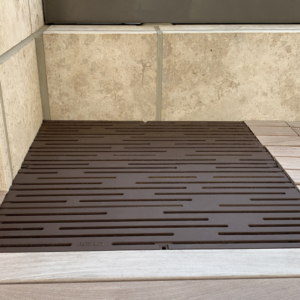

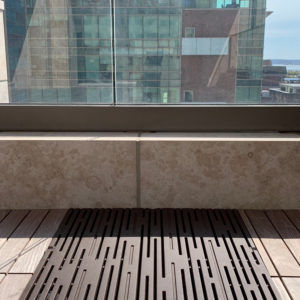

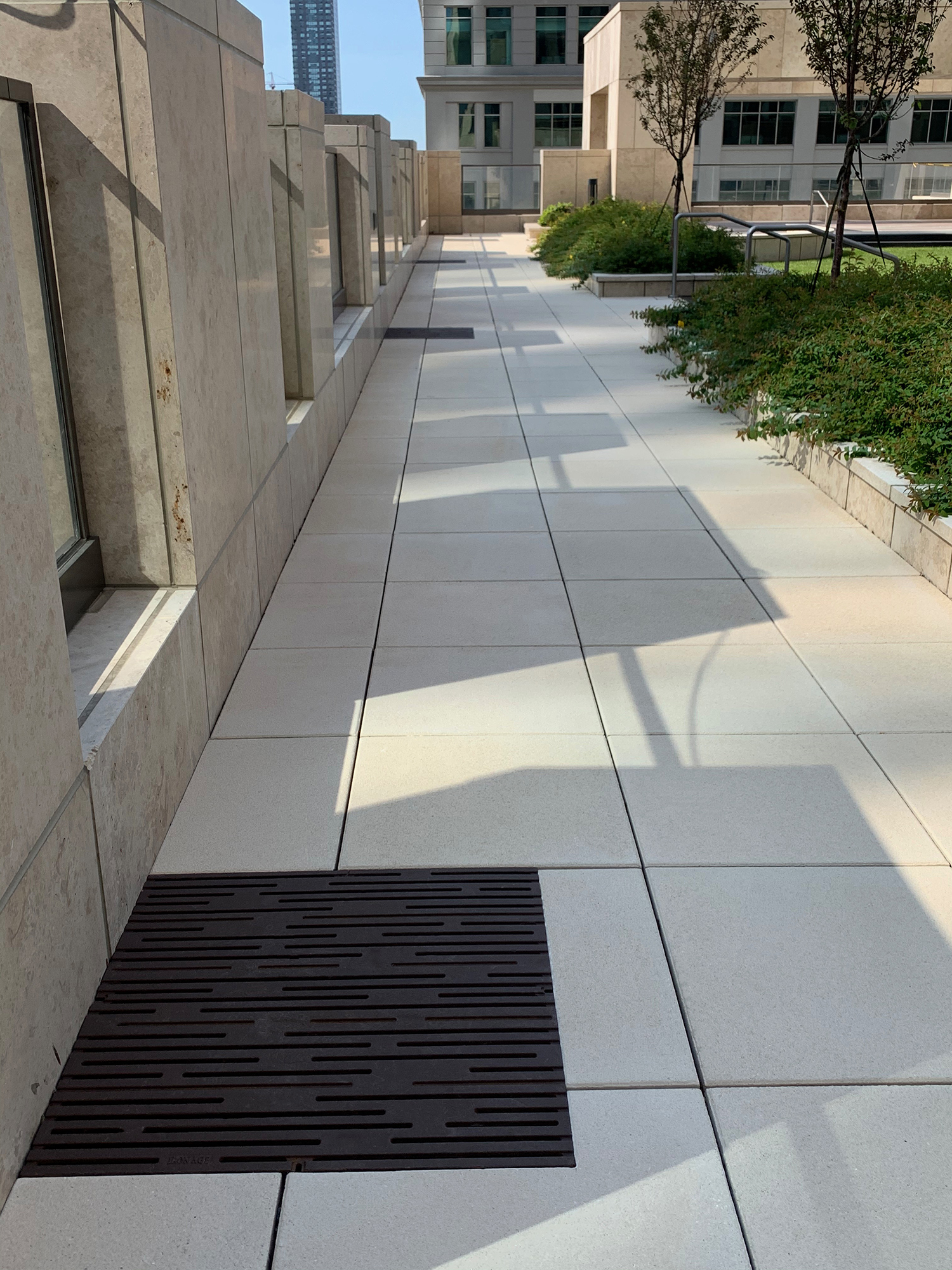

Name / Design	Rain 30" x 30" Heel Proof PEDESTRIAN LOAD ONLY
Product ID	RNX30-30I99FWHP
Dimensions	29.92" x 29.92" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	101
Free Drain Area	13.58%
Gallons Per Minute (GPM)	17.79
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

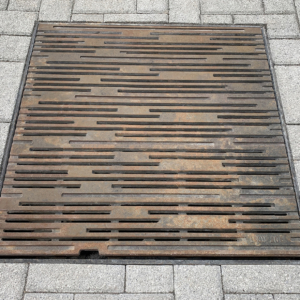

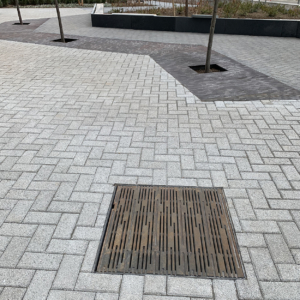

Name / Design	Rain 36" x 36" Heel Proof PEDESTRIAN LOAD ONLY
Product ID	RNX36-36I99HPFW
Dimensions	35.92" x 35.92" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	116
Free Drain Area	14.7%
Gallons Per Minute (GPM)	248.64
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-112-795

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Rain 40" x 29" Heel Proof, PEDESTRIAN LOAD ONLY
Product ID	RNX40-29I99HP
Dimensions	39.25" x 29.24" x .75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	98.72
Free Drain Area	13.25%
Gallons Per Minute (GPM)	199.22
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-117

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

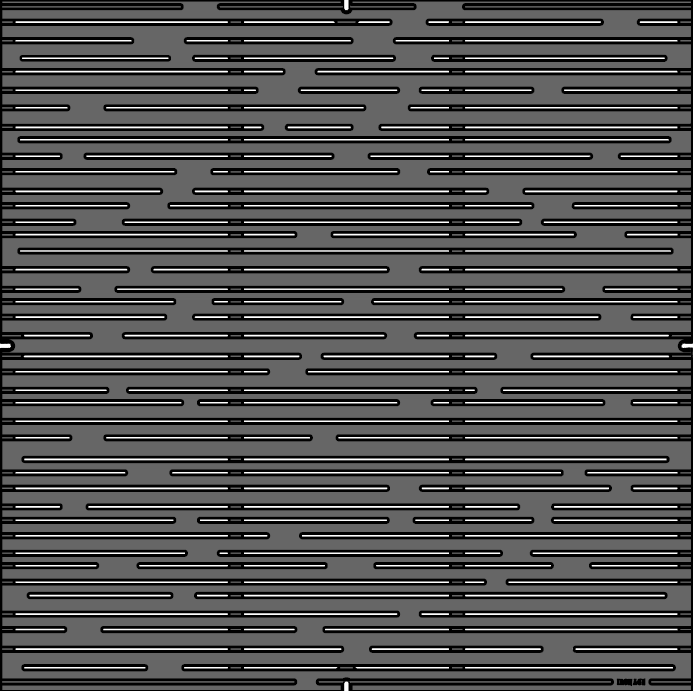

Name / Design	Rain 42" x 42" Heel Proof PEDESTRIAN LOAD ONLY
Product ID	RNX42-42I99HP
Dimensions	41.92" x 41.92" x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	173.37
Free Drain Area	14.76%
Gallons Per Minute (GPM)	339.81
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

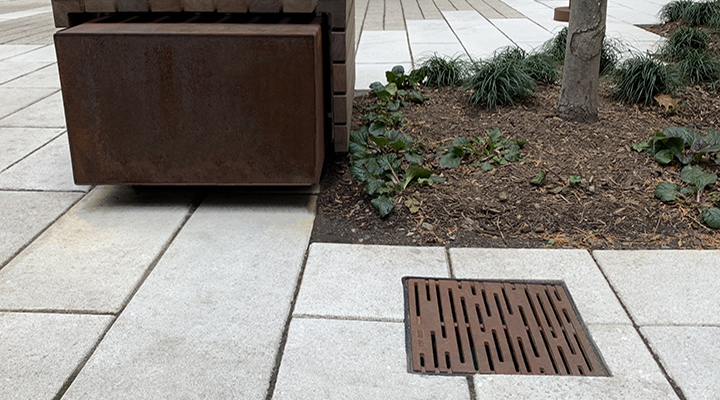

Cast iron catch basin grate in decorative Rain pattern from Iron Age Designs, set in concrete pavers.

Rain 12″ x 12″ heel proof catch basin grate, raw cast ductile iron. DESIGN: MPFP INSTALLATION: Ascape Landscape. PROJECT: Rye Playland. LOCATION: Rye, NY.

Download photo

Rain 12″ x 12″ heel-proof catch basin grate, raw cast ductile iron. DESIGN: HMWhite. PROJECT: Riverbank West Luxury Apartments. LOCATION: Hells Kitchen, NYC.

Download photo

Rain 12″ x 12″ heel-proof catch basin grate, raw cast ductile iron. DESIGN: HMWhite. PROJECT: Riverbank West Luxury Apartments. LOCATION: Hells Kitchen, NYC.

Download photo

Rain 18″ x 24″ (WSDOT Type 1) catch basin grate, heel proof, cast iron with baked-on oil finish.

Download photo

Rain 18″ x 24″ Heel Proof catch basin, raw cast iron. PROJECT: Rockspring. LOCATION: Bethesda, MD.

Download photo

Cast iron grates in decorative Rain pattern by Iron Age Designs. Black powder coat finish.

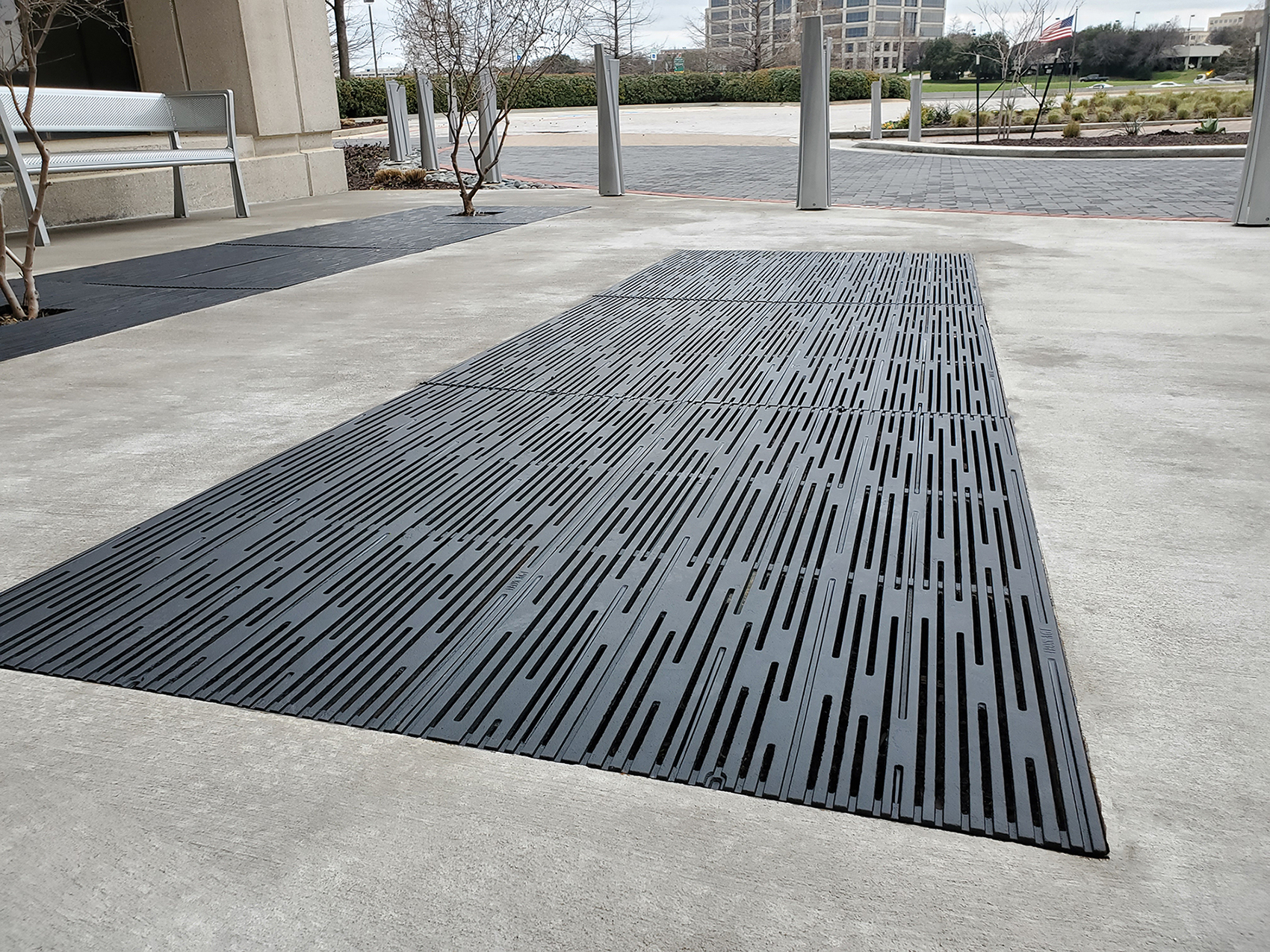

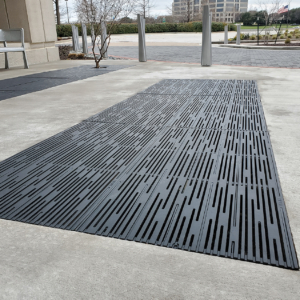

Large grate array consisting of 24″ x 48″ Rain heel-proof grates; cast iron with black powder coat finish. DESIGN: Pacheco Koch. PROJECT: Entry Plaza at 1925 W. John Carpenter Fwy. LOCATION: Irving, TX.
