Miso

Description:

Once the soup was gone, we so admired the fiddlehead ferns painted on its bowl that we named a grate after it. Our Miso design brings a hint of the natural world into any built environment.

Size Options:

Similar Products:

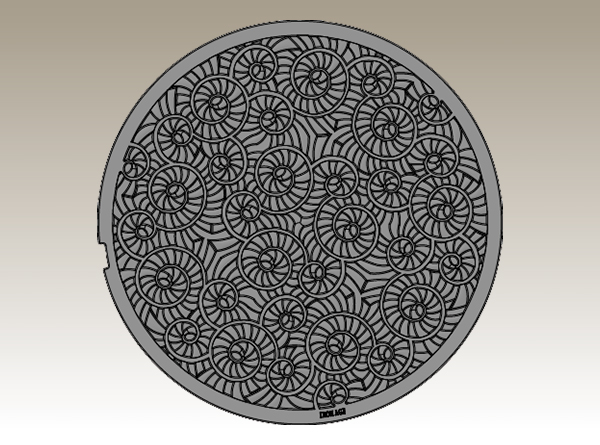

Miso Manhole / Solid Covers

Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Miso 8" Dia.
Product ID	MS8DiaI41
Dimensions	7.88" Dia. x 1.00"
Drain Manufacturer	Jay R. Smith Mfg. Co.®
Fits	Jay R. Smith® 2110
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	4.77
Free Drain Area	15.68%
Gallons Per Minute (GPM)	10.00
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Miso 12" Dia.
Product ID	MS12DiaI42
Dimensions	11.45" Dia. x 1.38"
Drain Manufacturer	Jay R. Smith Mfg. Co.®
Fits	Jay R. Smith® 2230
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	17
Free Drain Area	20%
Gallons Per Minute (GPM)	13.17
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Miso 25" Dia.
Product ID	ME25DIAD52
Dimensions	25.19" Dia. x 1.5"
Drain Manufacturer	EJ™
Fits	EJ™ V-1600-3
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	81.52
Free Drain Area	23.31%
Gallons Per Minute (GPM)	152.21
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	Pending

		Spec Sheet
Name / Design	Miso 25" Dia. Manhole
Product ID	ME25DIAD52
Dimensions	25.19" Dia. x 1.5"
Drain Manufacturer	EJ™
Fits	EJ™ V-1600-3
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	100.12
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

Photo Gallery:

OLYMPUS DIGITAL CAMERA

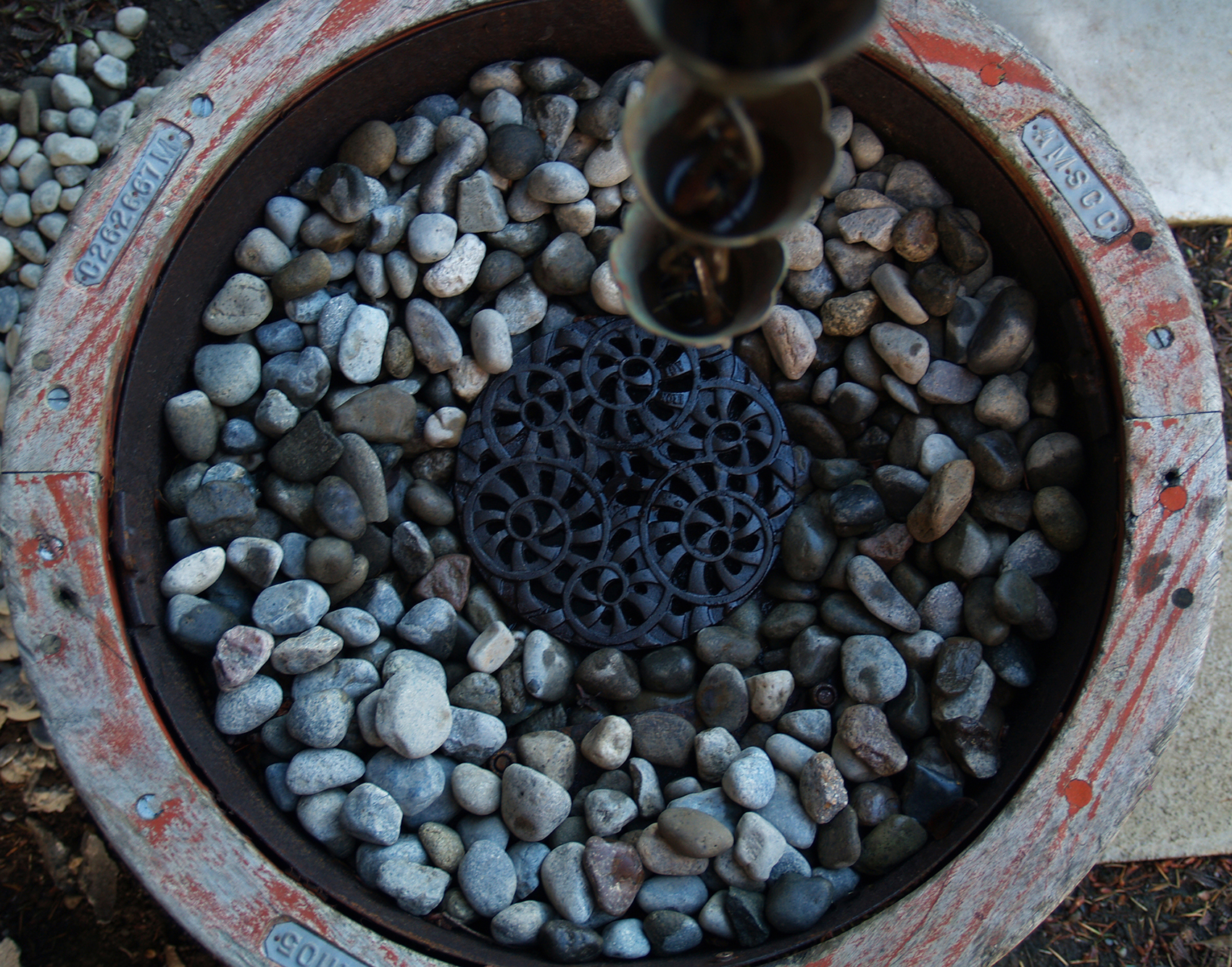

Miso 8″ Dia. catch basin, cast ductile iron with our baked on oil finish.

Download photo

OLYMPUS DIGITAL CAMERA

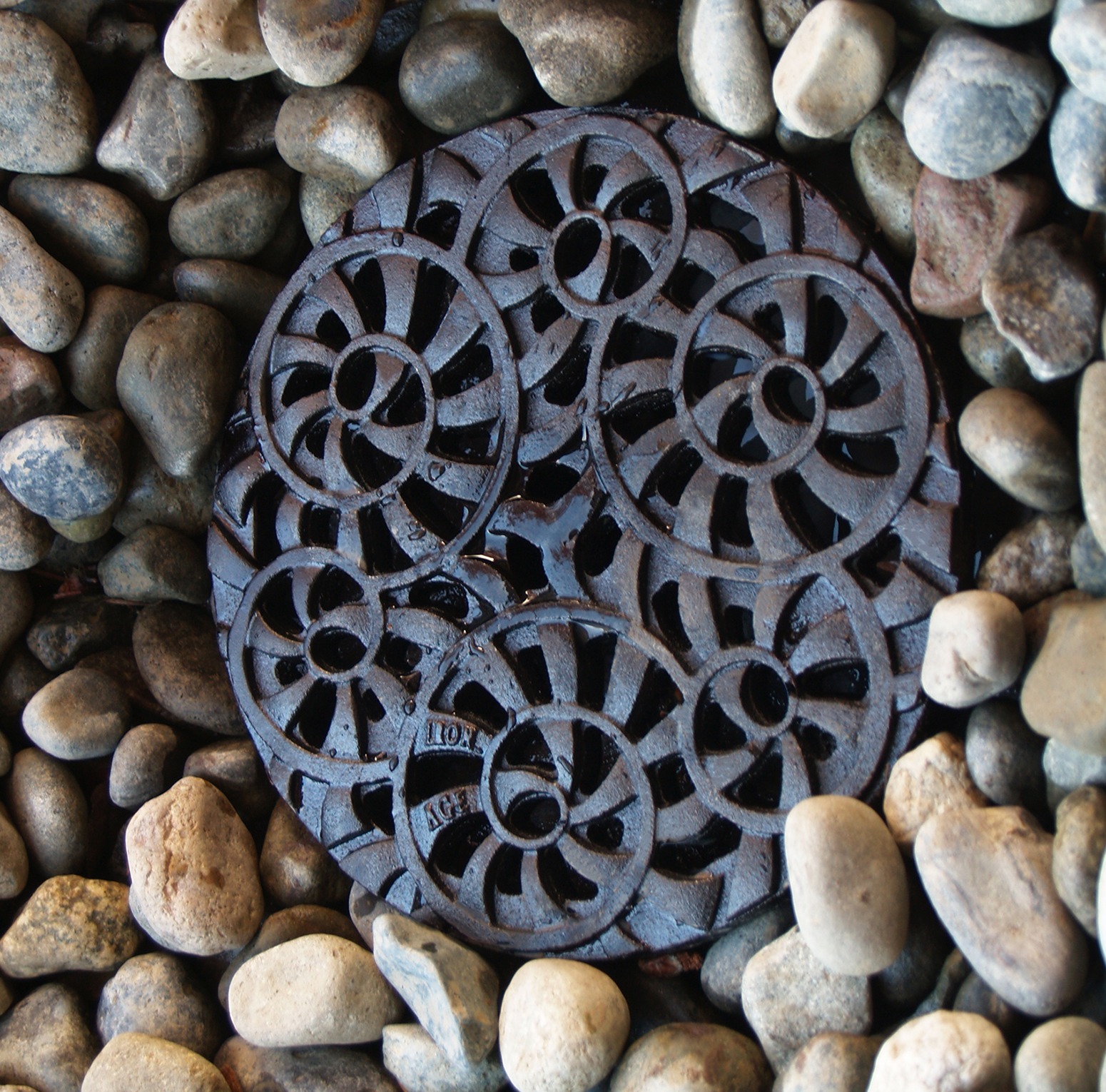

Miso 8″ Dia. catch basin, cast ductile iron with our baked on oil finish.

Download photo

OLYMPUS DIGITAL CAMERA

Miso 8″ Dia. catch basin, cast ductile iron with our baked on oil finish.

Download photo

Decorative raw cast aluminum catch basin grate in Miso pattern

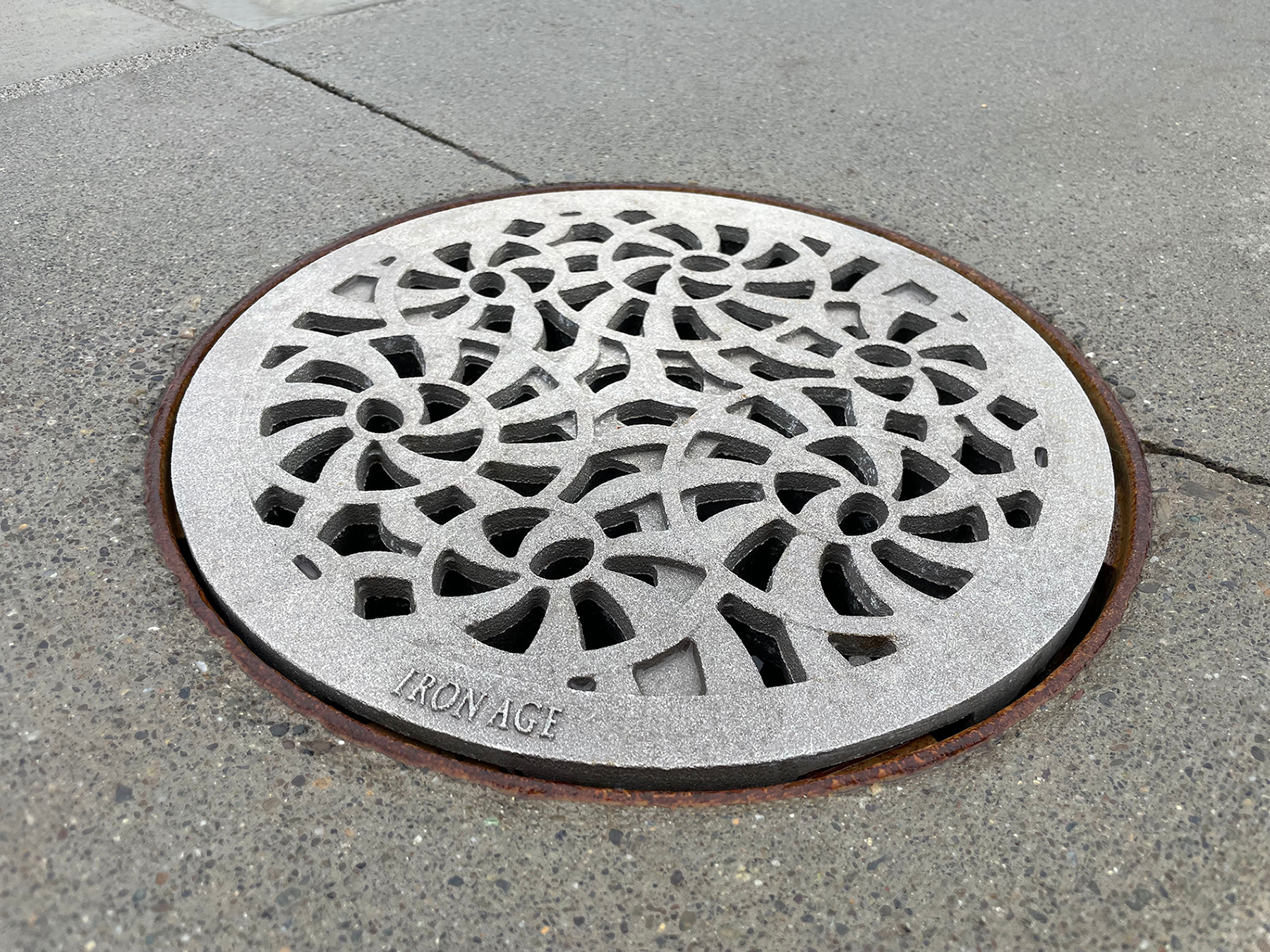

Miso 12″ dia. catch basin grate, raw cast aluminum. DESIGN: Swift Company. PROJECT: Climate Pledge Arena. LOCATION: Seattle, WA.

Download photo

Decorative raw cast iron catch basin grate in Miso pattern

Miso 25″ dia. catch basin grate, raw cast iron. DESIGN: Backen & Backen. PROJECT: Rudd Estate. LOCATION: Oakville, CA

Download photo

miso-25-dia-wo-e

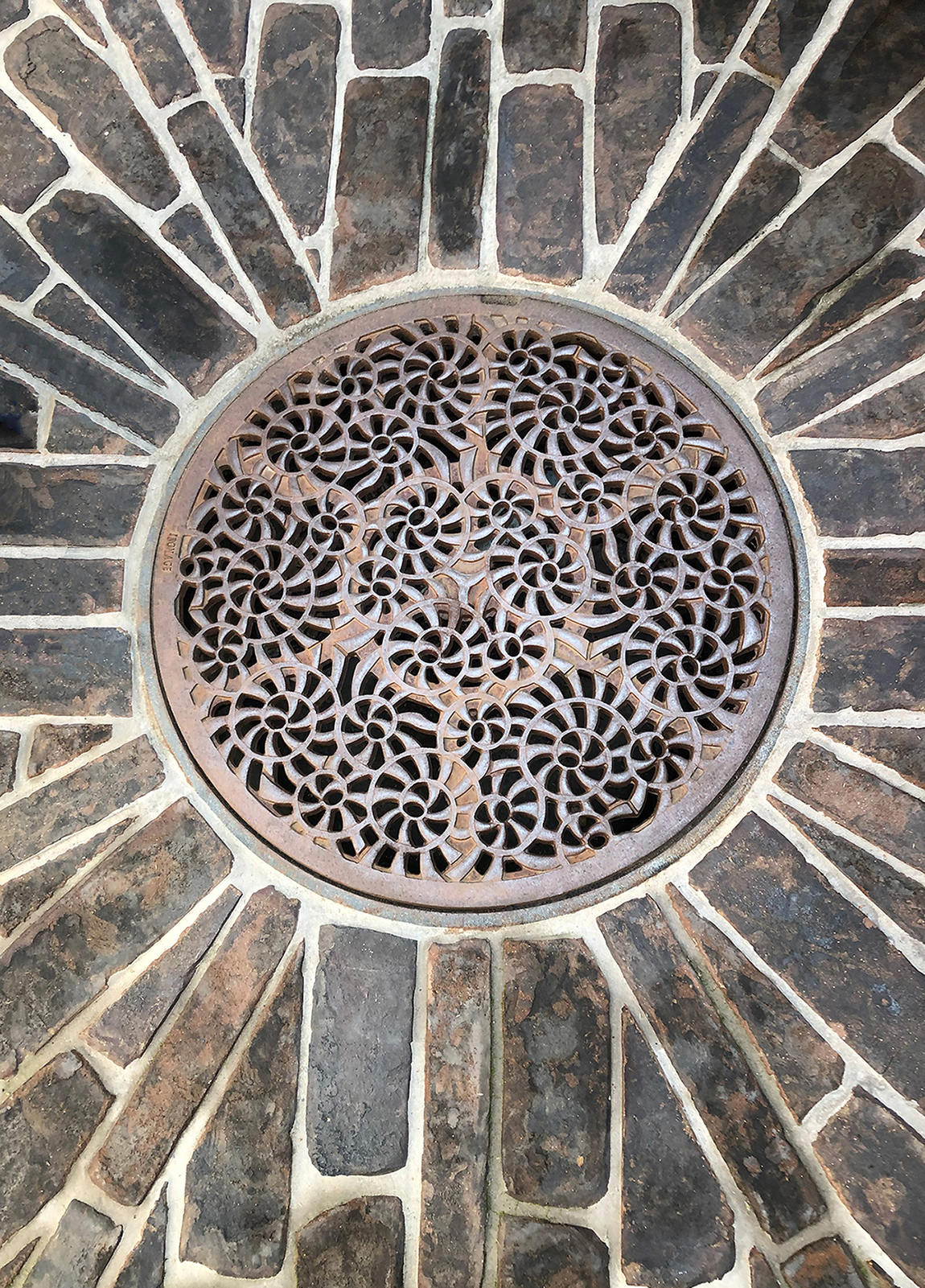

Miso 25″ Dia. catch basin grate, raw cast iron.

Download photo

miso-25-dia-wo-3

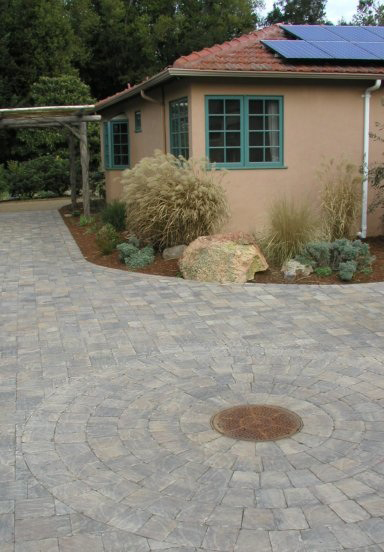

Miso 25″ Dia. catch basin grate, raw cast iron.

Download photo
