Locust

Description:

The popularity of our Locust pattern points to a natural affinity for organic design elements. Available in a wide range of shapes and sizes, these signature grates are designed to be combined into any number of unique applications.





Size Options:
Similar Products:

Detailed Specifications:

Name / Design Locust 4" Dia.
Product ID LX4DiaI99PG
Dimensions 4.50" Dia.
Fits 3" & 4" SDR/PVC Pipe
Material Cast Ductile Iron
Standard Finish Baked On Oil Finish
Optional Finish
Powder Coat
Weight lb(s) 1
Free Drain Area 21.5%
Gallons Per Minute (GPM) 4.47
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA-1-964-891
Name / Design Locust 6" Dia. Heel Proof
Product ID LN6DiaI06HP
Dimensions 6.75" Dia.
Drain Manufacturer
NDS®
Fits NDS® Spee-D® Basin
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 3
Free Drain Area 8.85%
Gallons Per Minute (GPM) 4.14
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 1-970-711

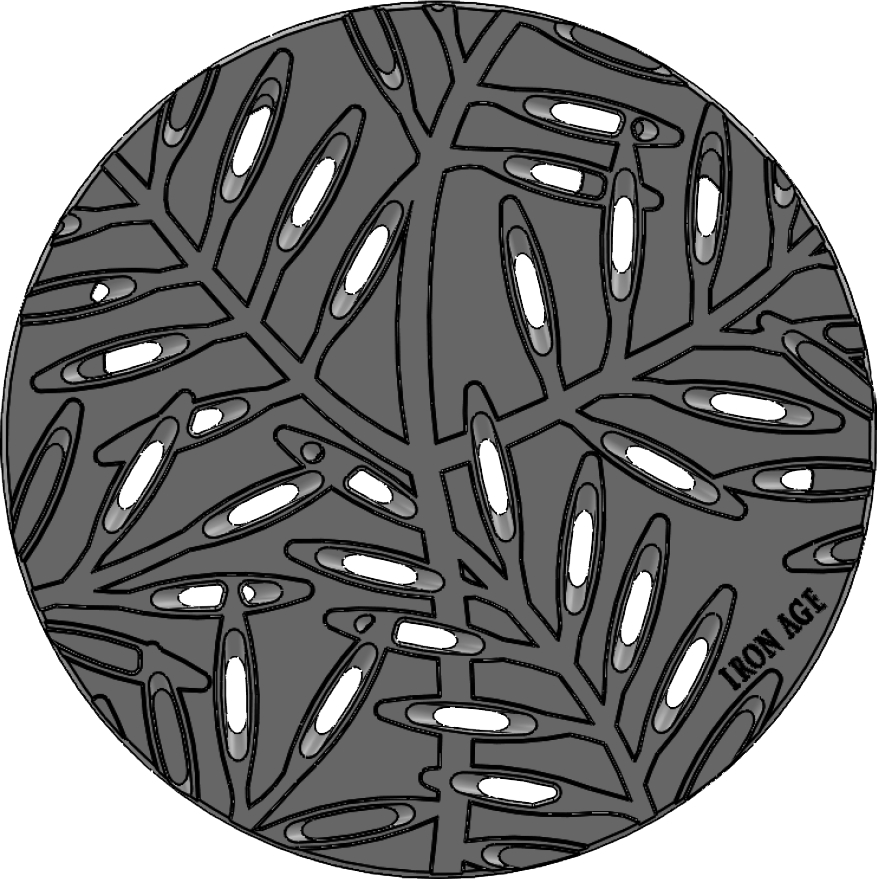

Name / Design Locust 8" Dia. Heel Proof
Product ID LS8diaI41HP
Dimensions 8" Dia.
Drain Manufacturer
Jay R. Smith Mfg. Co.®
Fits Jay R. Smith® 2110
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 8
Free Drain Area 16.8%
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Locust 12" Sq.
Product ID LN12-12I12
Dimensions 11.75" x 11.75" x 1.13"
Drain Manufacturer
NDS®
Fits NDS® 1200 Series
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 15.50
Free Drain Area 12.34%
Gallons Per Minute (GPM) 22.32
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-112-776
Name / Design Locust 12" Sq. Heel Proof
Product ID LN12-12I12HP
Dimensions 11.63" x 11.63" x 1.13"
Drain Manufacturer
NDS®
Fits NDS® 1200 Series
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 14.16
Free Drain Area 8.41%
Gallons Per Minute (GPM) 14.90
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-329-954
Name / Design Locust 14" Dia.
Product ID LA14diaI73
Dimensions 14.11" Dia x .38"
Fits ADS® Nyloplast® 12" Pipe Schedule 40
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 13.36
Free Drain Area 16.69%
Gallons Per Minute (GPM) 34.18
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-330-290
Name / Design Locust 24" Dia. Manhole Cover
Product ID LD24DiaD51MH
Dimensions 23.88" Dia. x 1"
Drain Manufacturer
Deeter Foundry™
Fits Deeter Foundry™ 1256
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 75.83
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Name / Design Locust 24" Sq.
Product ID LN24-24I14
Dimensions 23.80" x 23.80" x 2"
Drain Manufacturer
NDS®
Fits NDS® 2400 Series
Material Cast Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 95.32
Free Drain Area 12.05%
Gallons Per Minute (GPM) 89.45
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-159-748

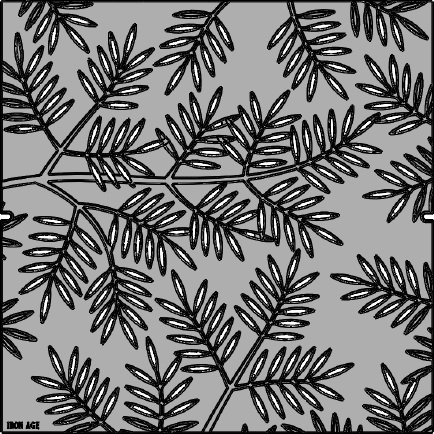

Name / Design Locust 28" Sq. Heel Proof
Product ID LX28-28I99HP
Dimensions 28.25" x 28.25" x 1.25"
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 108.4
Free Drain Area 63.8%
Gallons Per Minute (GPM) 66.70
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 2-330-119

Photo Gallery:

locust-4-dia-e

Locust 4″ Dia. pipe grate, cast ductile iron with baked on oil finish.


Download photo
locust-4-dia-wo-2-e

Locust 4″ Dia. pipe grate, cast ductile iron.


Download photo
locust-4-dia-wo-e

Locust 4″ Dia. pipe grate, raw cast bronze.


Download photo
Locust 4 Dia (2) E

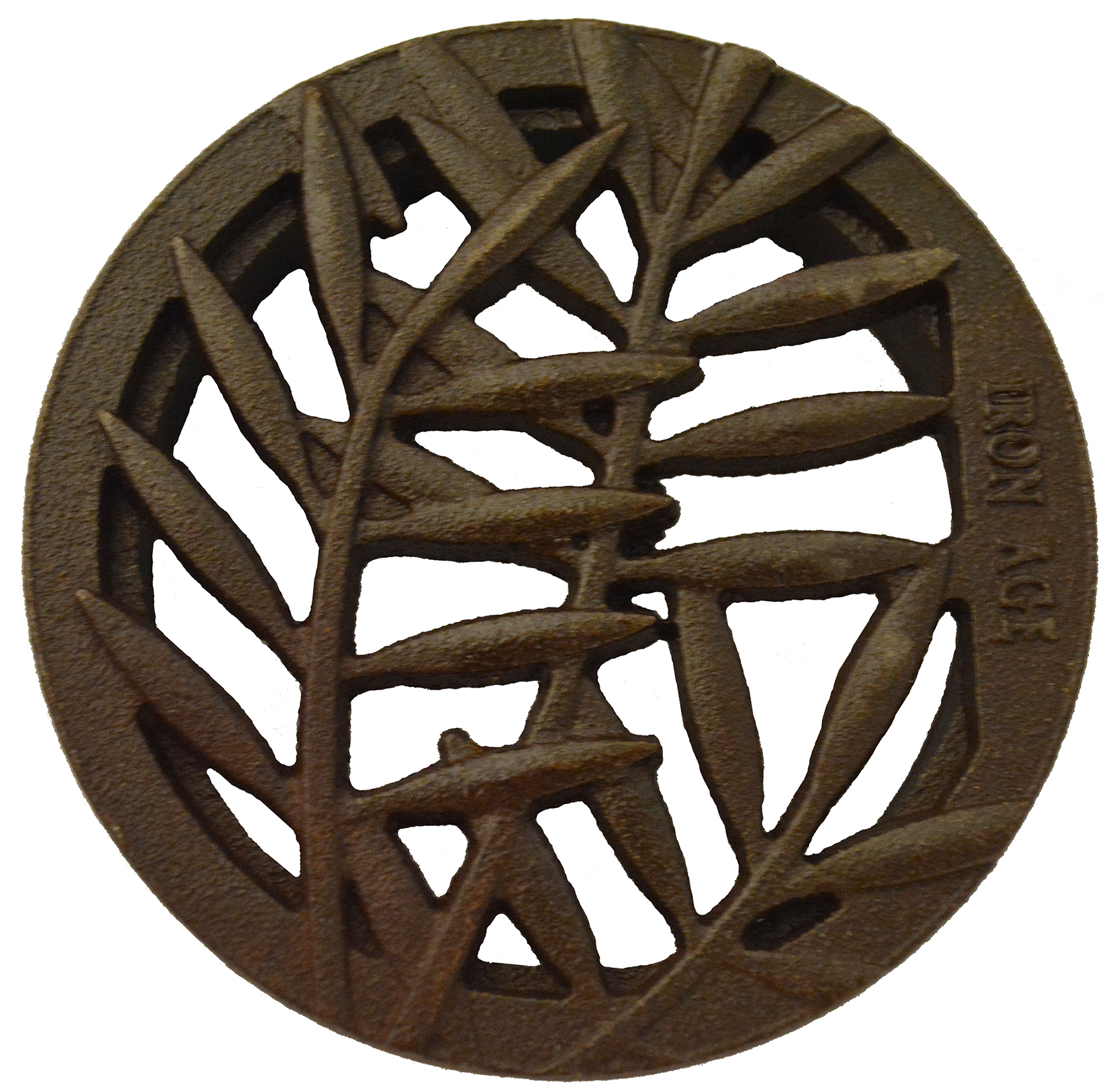

Locust 4″ Dia. pipe grate, cast ductile iron with baked on oil finish.


Download photo
locust-6-dia-hp-boof-2-e

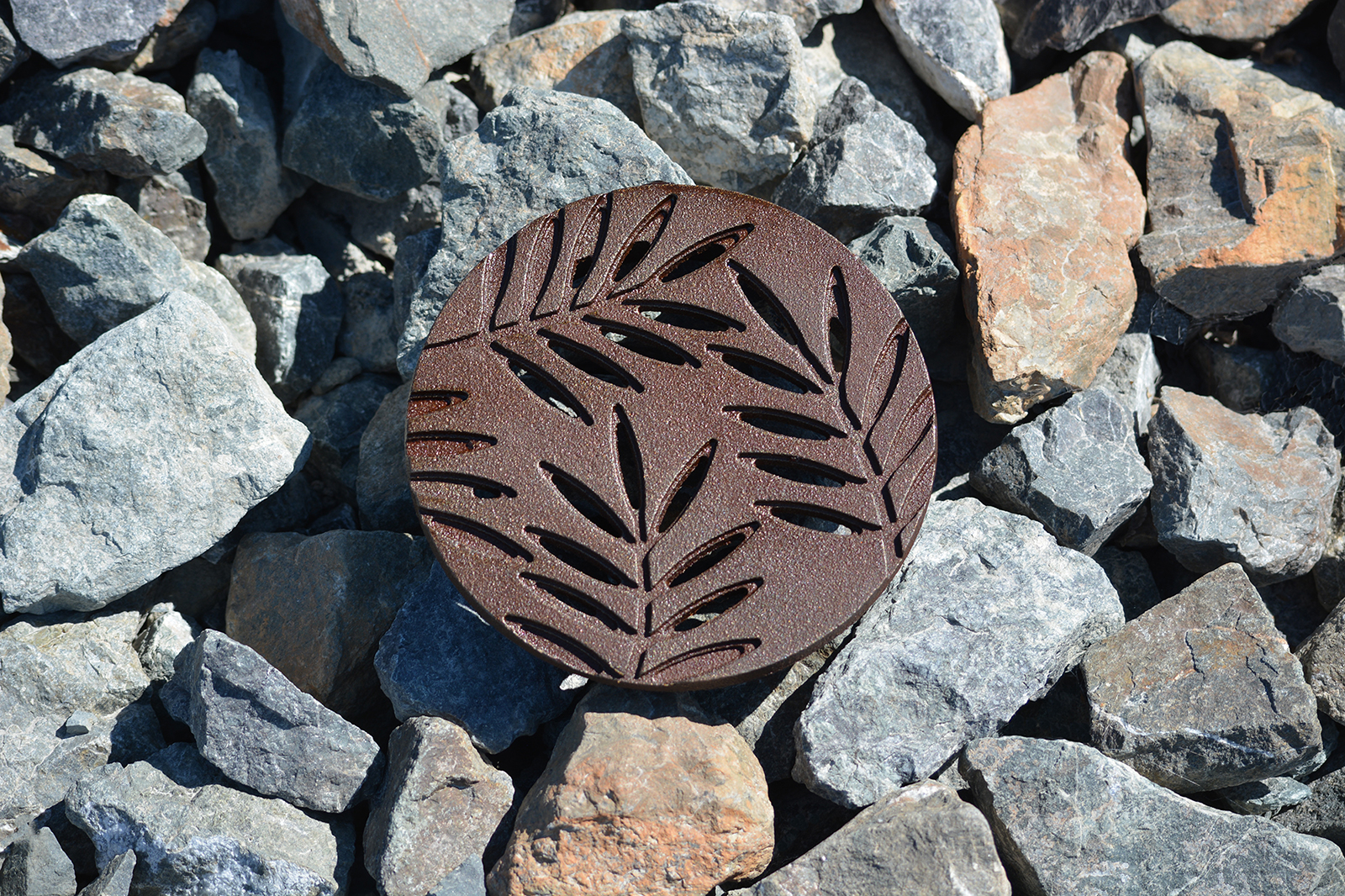

Locust 6″ Dia. Heel Proof catch basin grate, cast iron with our baked on oil finish.


Download photo
locust-6-dia-hp-boof-3-e

Locust 6″ Dia. Heel Proof catch basin grate, cast iron with our baked on oil finish.


Download photo
locust-6-dia-hp-boof-4-e

Locust 6″ Dia. Heel Proof catch basin grate, cast iron with our baked on oil finish.


Download photo
locust-6-dia-hp-boof-5-e

Locust 6″ Dia. Heel Proof catch basin grate, cast iron with our baked on oil finish.


Download photo
locust-6-dia-hp-boof-6-e

Locust 6″ Dia. Heel Proof catch basin grate, cast iron with our baked on oil finish.


Download photo
locust-6-dia-hp-boof-e

Locust 6″ Dia. Heel Proof catch basin grate, cast iron with our baked on oil finish.


Download photo
Locust 6 Dia HP BOOF (7) E

Locust 6″ Dia. Heel Proof catch basin grate, cast iron with our baked on oil finish.


Download photo
locust-8-dia-hp-bronze-3-e

Locust 8″ Dia. Heel Proof catch basin grate, raw cast bronze.


Download photo
locust-8-dia-hp-bronze-4-e

Locust 8″ Dia. Heel Proof catch basin grate, raw cast bronze.


Download photo
locust-8-dia-hp-bronze-2-e

Locust 8″ Dia. Heel Proof catch basin grates, raw cast bronze.


Download photo
locust-8-dia-hp-bronze-e

Locust 8″ Dia. Heel Proof catch basin grates, raw cast bronze.


Download photo
locust-12-x-12-2-e

Locust 12″ Sq. catch basin grates, raw cast ductile iron.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 12″ Sq. catch basin grates, raw cast ductile iron.


Download photo
OLYMPUS DIGITAL CAMERA

Locust 12″ Sq. catch basin grates (shown arrayed as trench grates), cast ductile iron with our baked on oil finish.


Download photo
locust-12-x-12-5-e

Locust 12″ Sq. catch basin grate, raw cast ductile iron.


Download photo
locust-12-x-12-bronze-wo-e

Locust 12″ Sq. catch basin grate, raw cast bronze. Royal Botanical Garden, Toronto, Canada.


Download photo
locust-12-x-12-e

Locust 12″ Sq. catch basin grates, cast ductile iron with powder coat finish.


Download photo
locust-12-x-12-6-e

Locust 12″ Sq. catch basin grates, raw ductile iron.


Download photo
Locust 12 x 12 (7) E

Locust 12″ Sq. catch basin grates, cast ductile iron with our baked on oil finish.


Download photo
locust-24-x-24-e

Locust 24″ Sq. catch basin grates, cast iron with baked on oil finish, arrayed to 4′ sq. planter beds.


Download photo
locust-24-x-24-2-e

Locust 24″ Sq. catch basin grates, cast iron with baked on oil finish, arrayed to 4′ sq. planter beds.


Download photo
