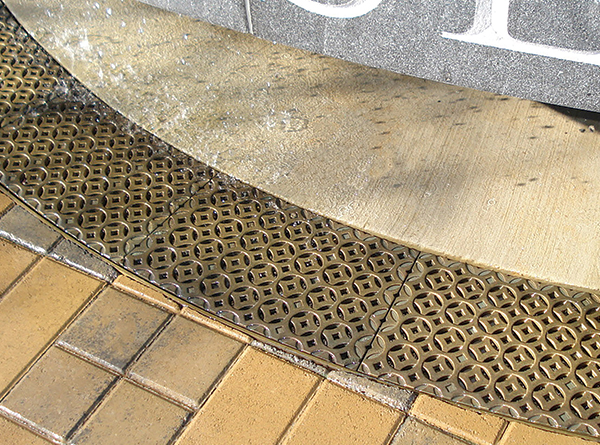

Interlaken

Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Interlaken 6" Dia. Heel Proof
Product ID	IN6diaI06HP
Dimensions	6.75" Dia. x .25"
Drain Manufacturer	NDS®
Fits	NDS® Spee-D® Basin
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	2.75
Free Drain Area	13.48%
Gallons Per Minute (GPM)	6.31
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S
Copyright Registration No.	VA 1-970-717

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

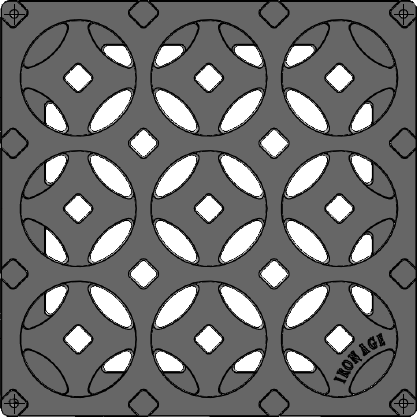

Name / Design	Interlaken 8" Sq.
Product ID	IZ8-8I33
Dimensions	7.74" x 7.74" x .19"
Drain Manufacturer	Zurn®
Fits	Zurn® Z415
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	2.74
Free Drain Area	14.58%
Gallons Per Minute (GPM)	11.44
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec

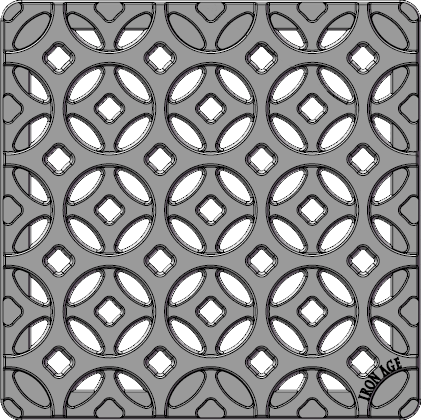

Name / Design	Interlaken 9" Sq.
Product ID	IN9-9I11
Dimensions	8.8" x 8.8" x 1.13"
Drain Manufacturer	NDS®
Fits	NDS® 900 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	10.50
Free Drain Area	9.76%
Gallons Per Minute (GPM)	9.90
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S
Copyright Registration No.	VA 2-007-113

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec
Name / Design	Interlaken 12" Sq.
Product ID	IN12-12I12
Dimensions	11.69" x 11.69" x 1.13"
Drain Manufacturer	NDS®
Fits	NDS® 1200 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	13.50
Free Drain Area	21.32%
Gallons Per Minute (GPM)	38.16
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S
Copyright Registration No.	VA 2-007-090

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Interlaken 12" Sq. Heel Proof
Product ID	IN12-12I12HP
Dimensions	11.69" x 11.69" x 1.13"
Drain Manufacturer	NDS®
Fits	NDS® 1200 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	11.29
Free Drain Area	14.58%
Gallons Per Minute (GPM)	26.10
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S
Copyright Registration No.	VA 2-329-953

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

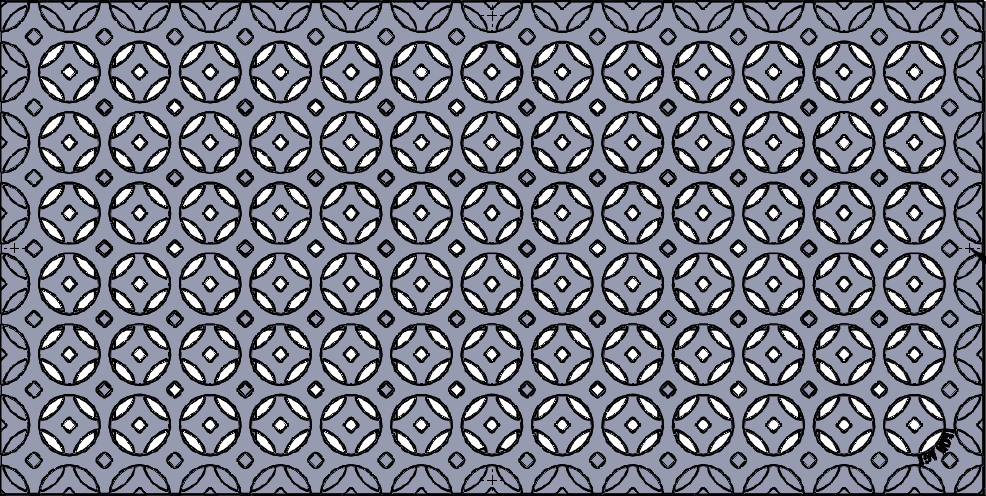

Name / Design	Interlaken 12" x 24" Heel Proof, PEDESTRIAN LOAD ONLY
Product ID	IX12-24I99HPFW
Dimensions	12" x 23.86" x 1.25"
Drain Manufacturer	Iron Age Designs®
Fits	Iron Age Custom Frame
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	28
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec
Name / Design	Interlaken 17" Sq.
Product ID	IN18-18I13
Dimensions	16.78" x 16.78" x 1"
Drain Manufacturer	NDS®
Fits	NDS® 1800 Series
Material	Cast Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	40.80
Free Drain Area	15.3%
Gallons Per Minute (GPM)	56.43
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S
Copyright Registration No.	VA 2-159-758

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Interlaken 17" Sq. Heel Proof
Product ID	IN18-18I13HP
Dimensions	16.81" x 16.81" x 1"
Drain Manufacturer	NDS®
Fits	NDS® 1800 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	28.92
Free Drain Area	9.33%
Gallons Per Minute (GPM)	34.55
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-287

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Interlaken 18" x 24"
Product ID	IX18-24I61
Dimensions	17.81" x 23.81" x 1.5"
Drain Manufacturer	Type 1 Catch Basin
Fits	Type 1 Catch Basin - EJ™ 7700 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	67
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S
Copyright Registration No.	VA 2-159-766

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Interlaken 24" Dia. Heavy Duty
Product ID	ID24DiaI51HD
Dimensions	23.81" Dia. x 1"
Fits	D+L Foundry™ A-1043 Deeter Foundry™ 1256
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	57.81
Free Drain Area	22.2%
Gallons Per Minute (GPM)	129.56
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S

	Spec Sheet

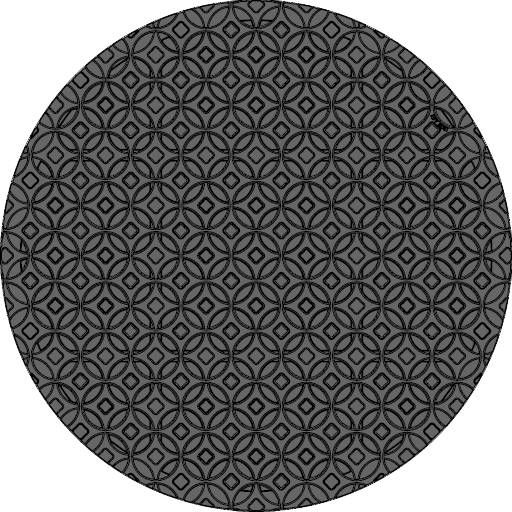

Name / Design	Interlaken 24" Dia. Heavy Duty Manhole Cover
Product ID	ID24DiaD51HDMH
Dimensions	23.81" Dia. x 1"
Fits	Deeter Foundry™ 1256
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	72.76
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Interlaken 24" Sq.
Product ID	IX24-24D99
Dimensions	23.26" x 23.26" x 1.75"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	68.90
Free Drain Area	17.33%
Gallons Per Minute (GPM)	122.80
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Interlaken 24" Sq., PEDESTRIAN LOAD ONLY
Product ID	IX24-24I99FW
Dimensions	23.88" x 23.88" x 1.00"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	64.67
Free Drain Area	11.78%
Gallons Per Minute (GPM)	87.97
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Patent No.	US D575,881 S

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Interlaken 30" Sq., PEDESTRIAN LOAD ONLY
Product ID	IX30-30I99FW
Dimensions	29.9" x 29.9" x 1.3"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	96.00
Free Drain Area	21.83%
Gallons Per Minute (GPM)	270.49
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

	Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Interlaken 36" Sq. Heavy Duty
Product ID	IX36-36I99HD
Dimensions	35.88" x 35.88" x 1.50"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	218.00
Free Drain Area	86%
Gallons Per Minute (GPM)	145.03
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 2-330-118

Photo Gallery:

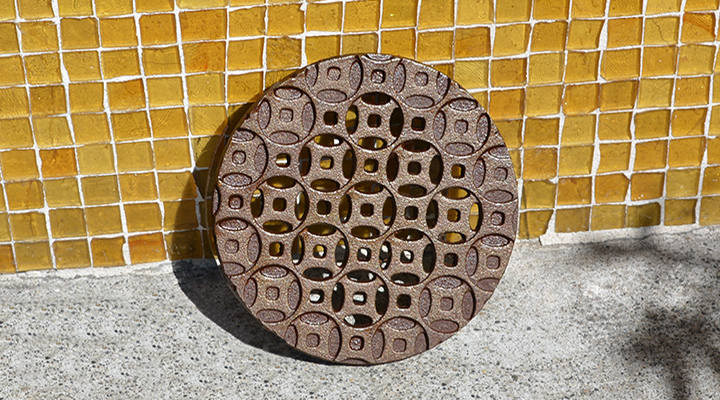

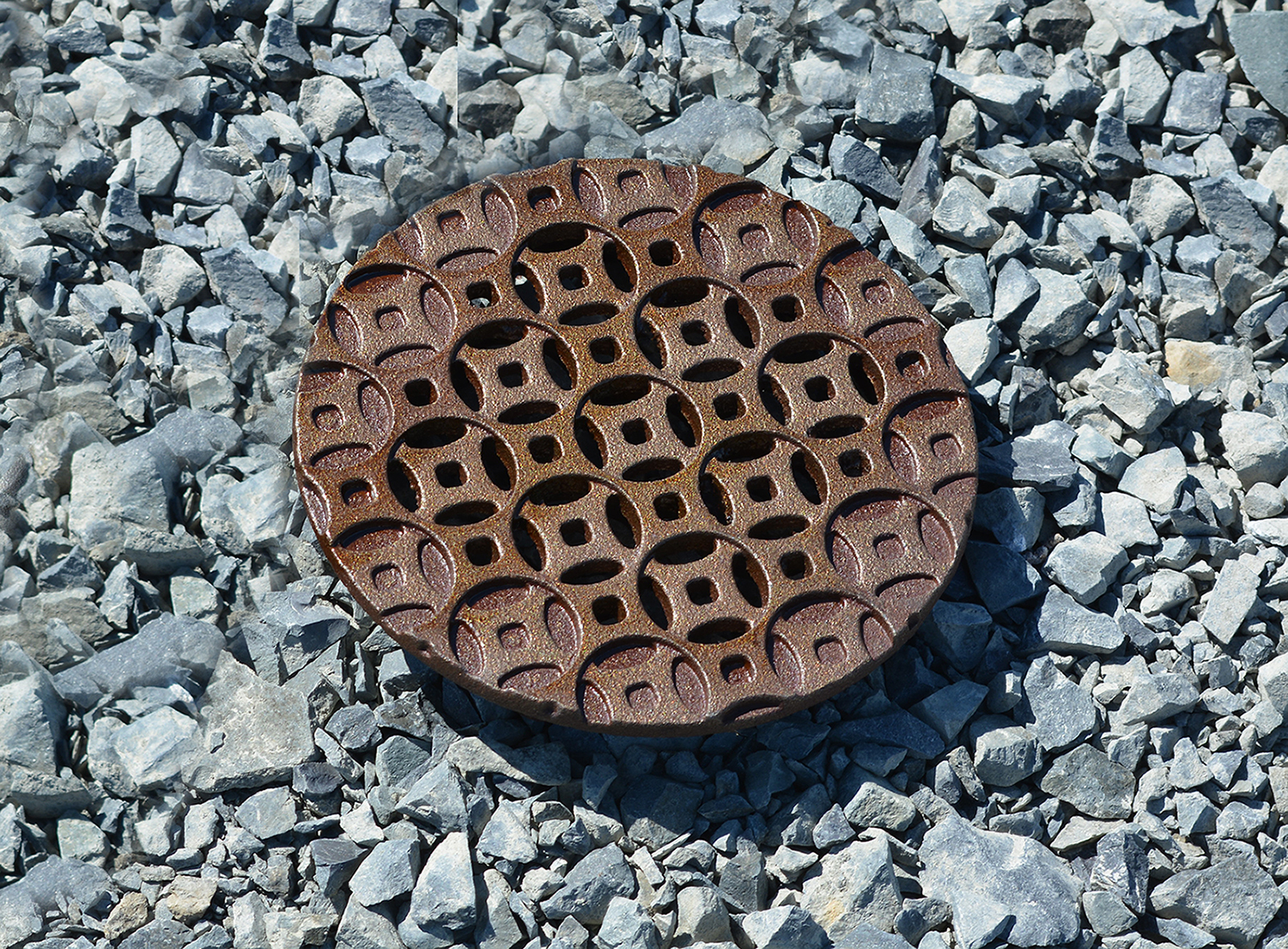

Interlaken 6″ Dia. heel-proof catch basin grate, cast ductile iron with baked-on-oil finish.

Download photo

Interlaken 6″ Dia. heel-proof catch basin grate, cast ductile iron with baked-on-oil finish.

Download photo

Interlaken 6″ Dia. heel-proof catch basin, cast ductile iron with baked-on-oil finish.

Download photo

Interlaken 6″ Dia. heel-proof catch basin grate, cast ductile iron with our baked-on-oil finish.

Download photo

Interlaken 6″ Dia. heel-proof catch basin grate, cast ductile iron with our baked-on-oil finish.

Download photo

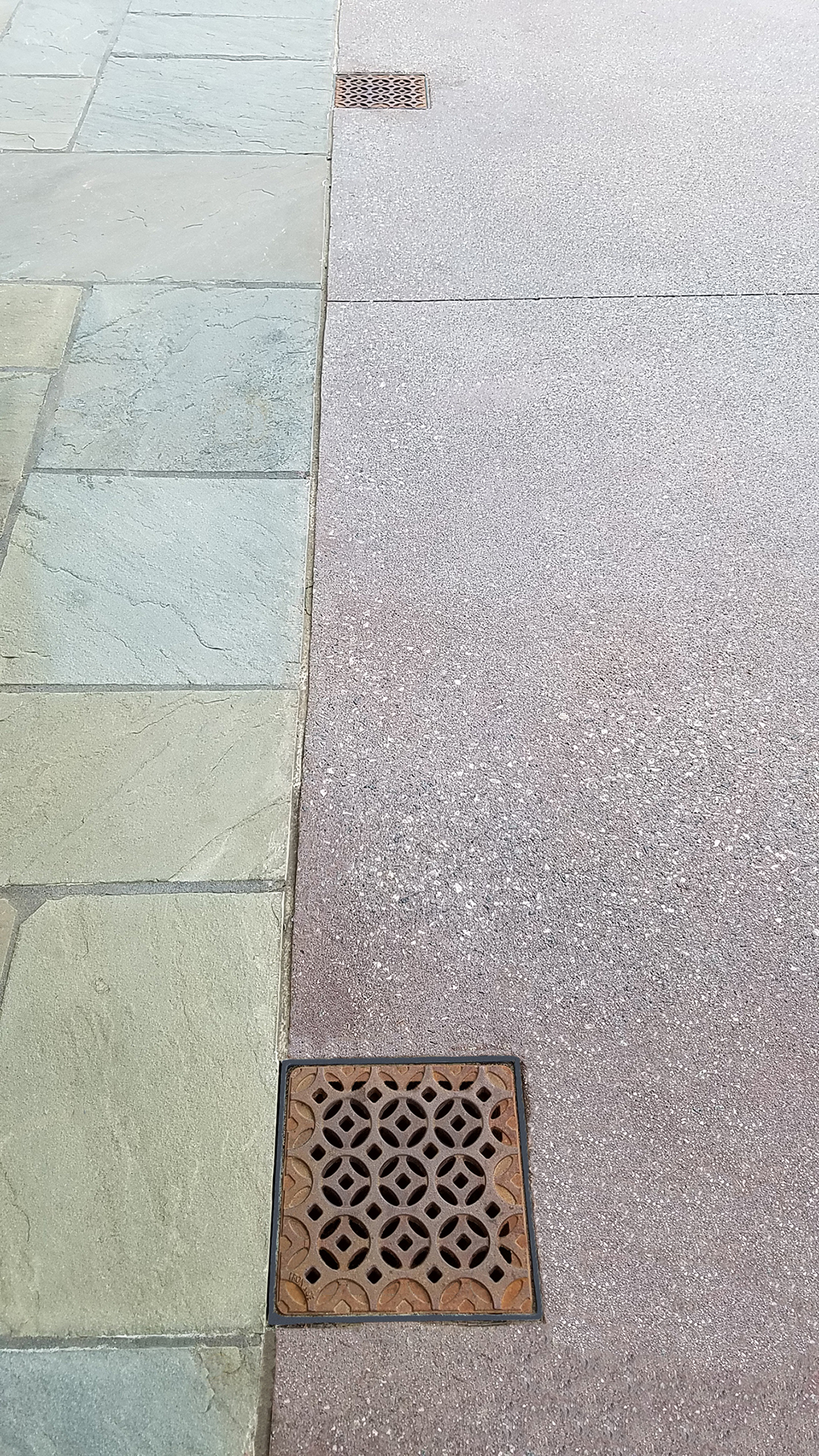

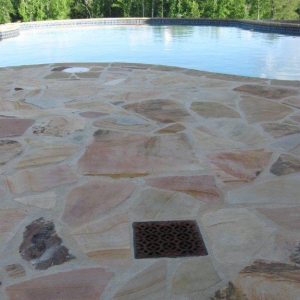

Interlaken 9″ x 9″ catch basin grate, cast ductile iron with baked-on-oil finish. DESIGN: GSM Landscape Architects, Inc. PROJECT: Meritage and Vino Bello Resort. LOCATION: Napa, CA.

Download photo

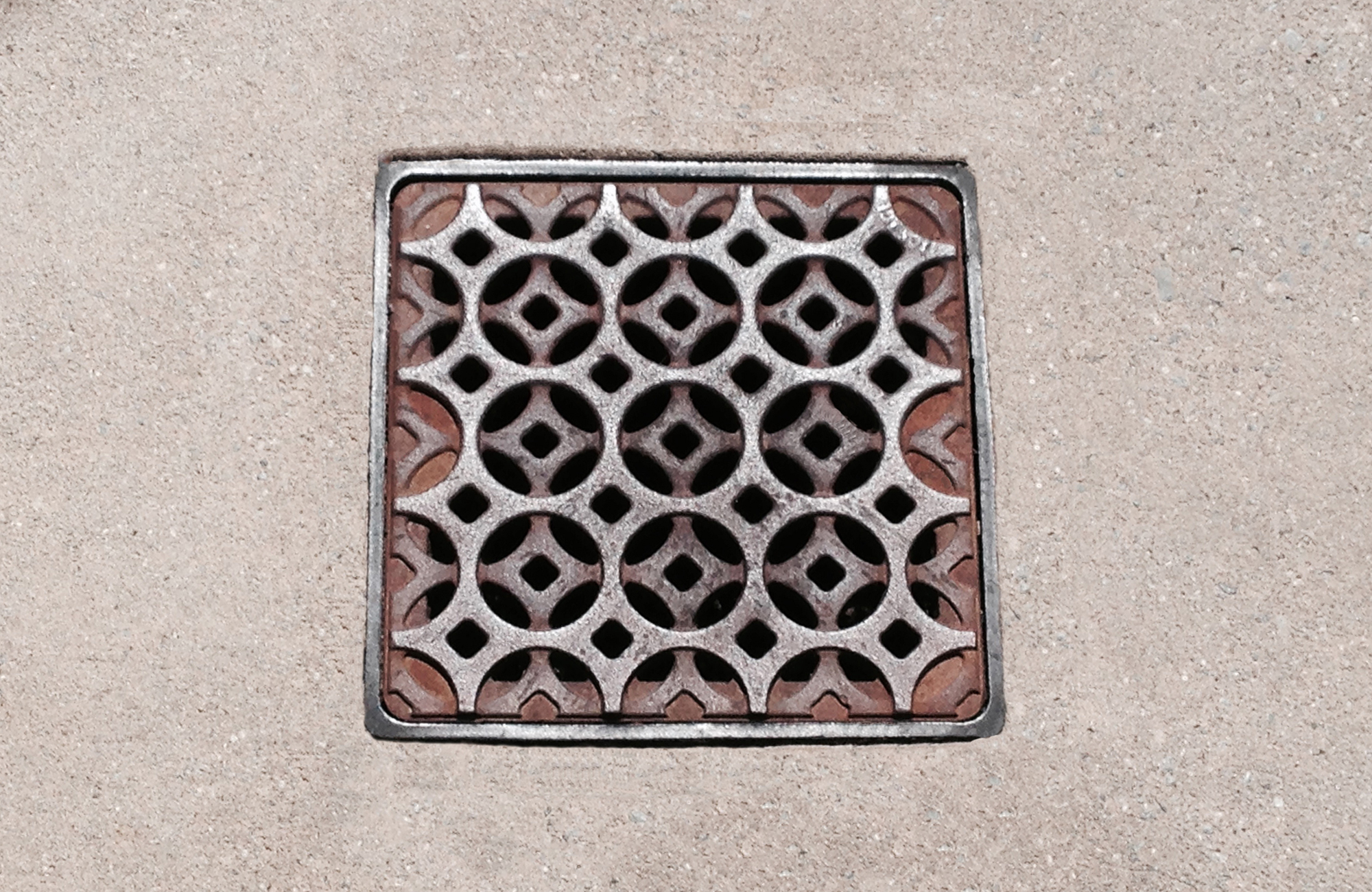

Interlaken 9″ x 9″ catch basin grate, raw cast ductile iron.

Download photo

Interlaken 9″ x 9″ catch basin grate, raw cast ductile iron.

Download photo

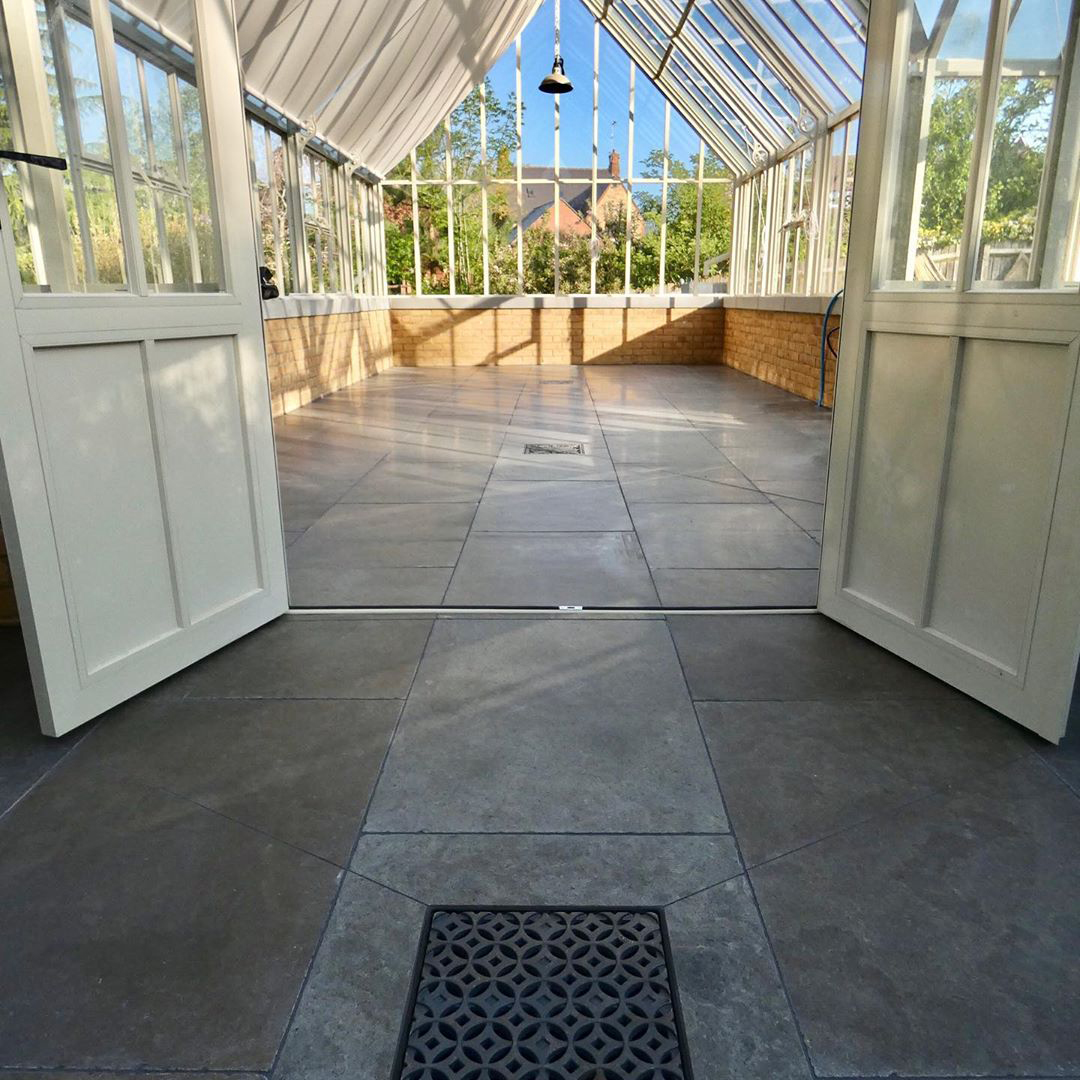

Interlaken 12″ x 12″ catch basin grate, raw cast aluminum 356, heat-treated to T6. Installed in stainless steel frames. DESIGN: Sussan Lari Architect. INSTALLER: RBJ Contracting. PROJECT: Residence, Kings Point, NY.

Download photo

Download photo

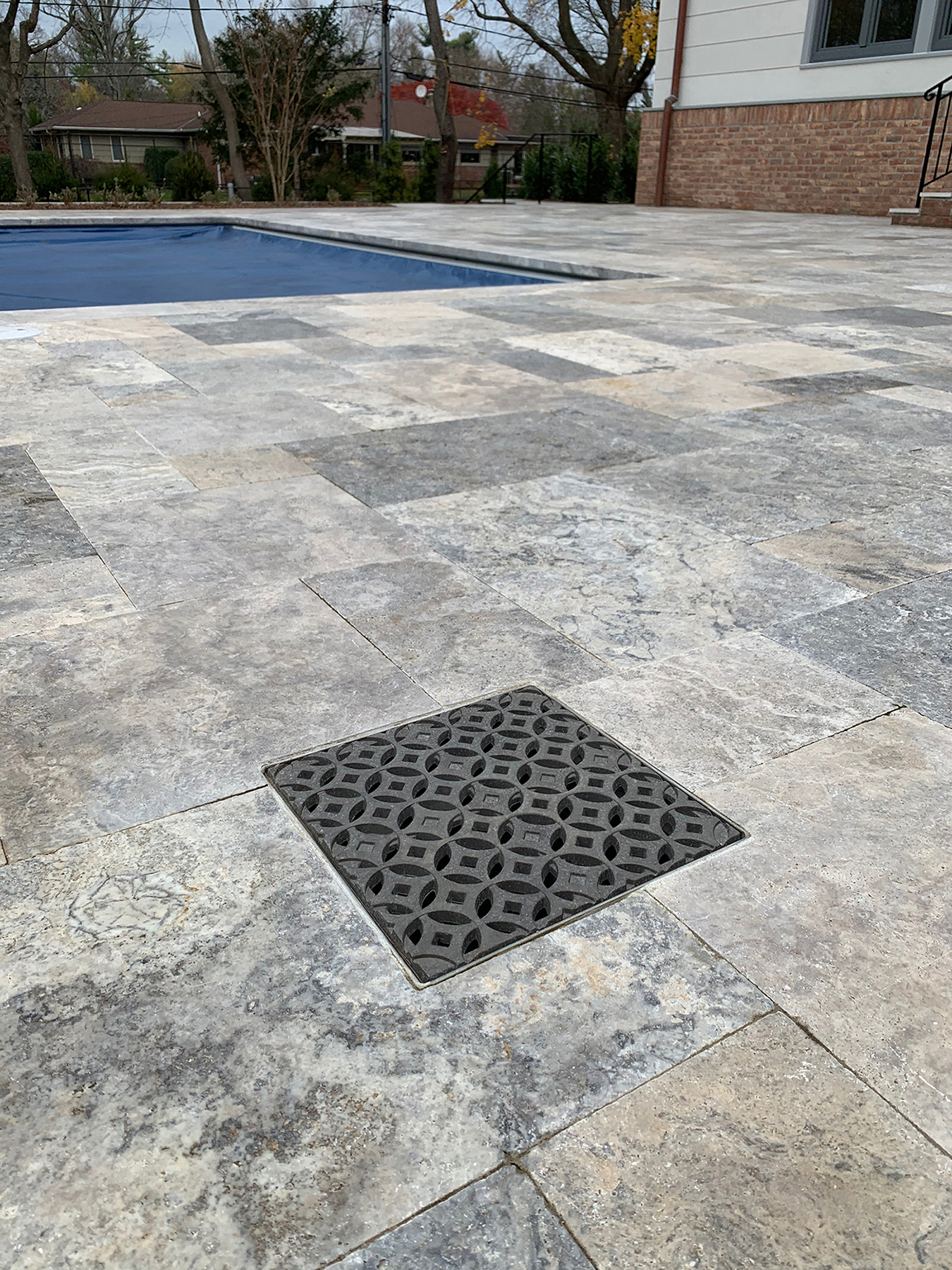

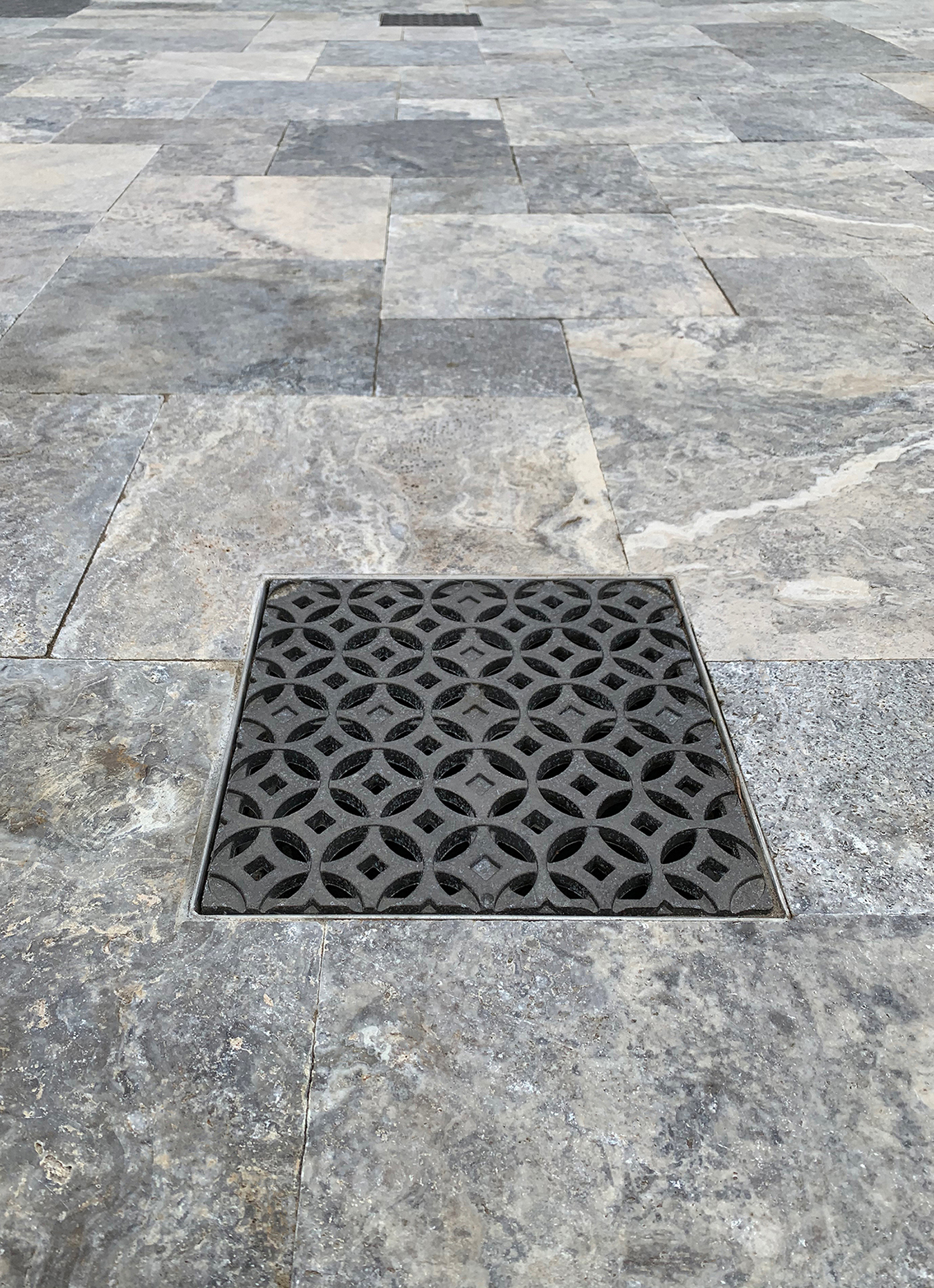

Interlaken 12″ x 12″ catch basin grate, cast ductile iron with baked-on-oil finish. DESIGN: GSM Landscape Architects, Inc. PROJECT: Meritage and Vino Bello Resort. LOCATION: Napa, CA.

Download photo

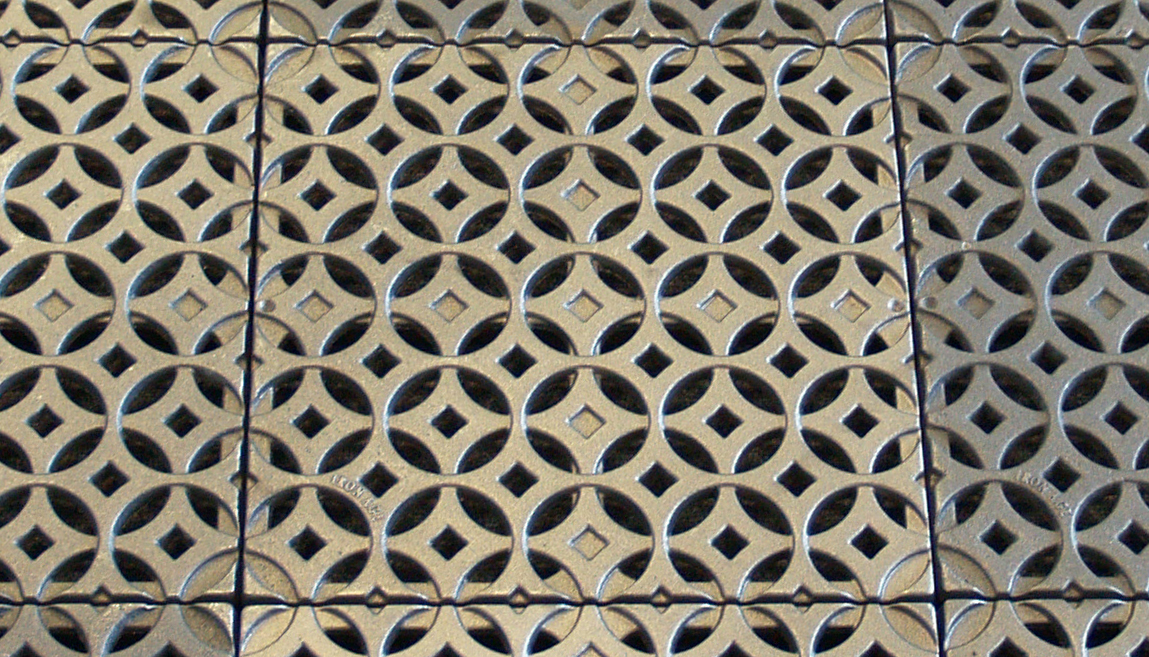

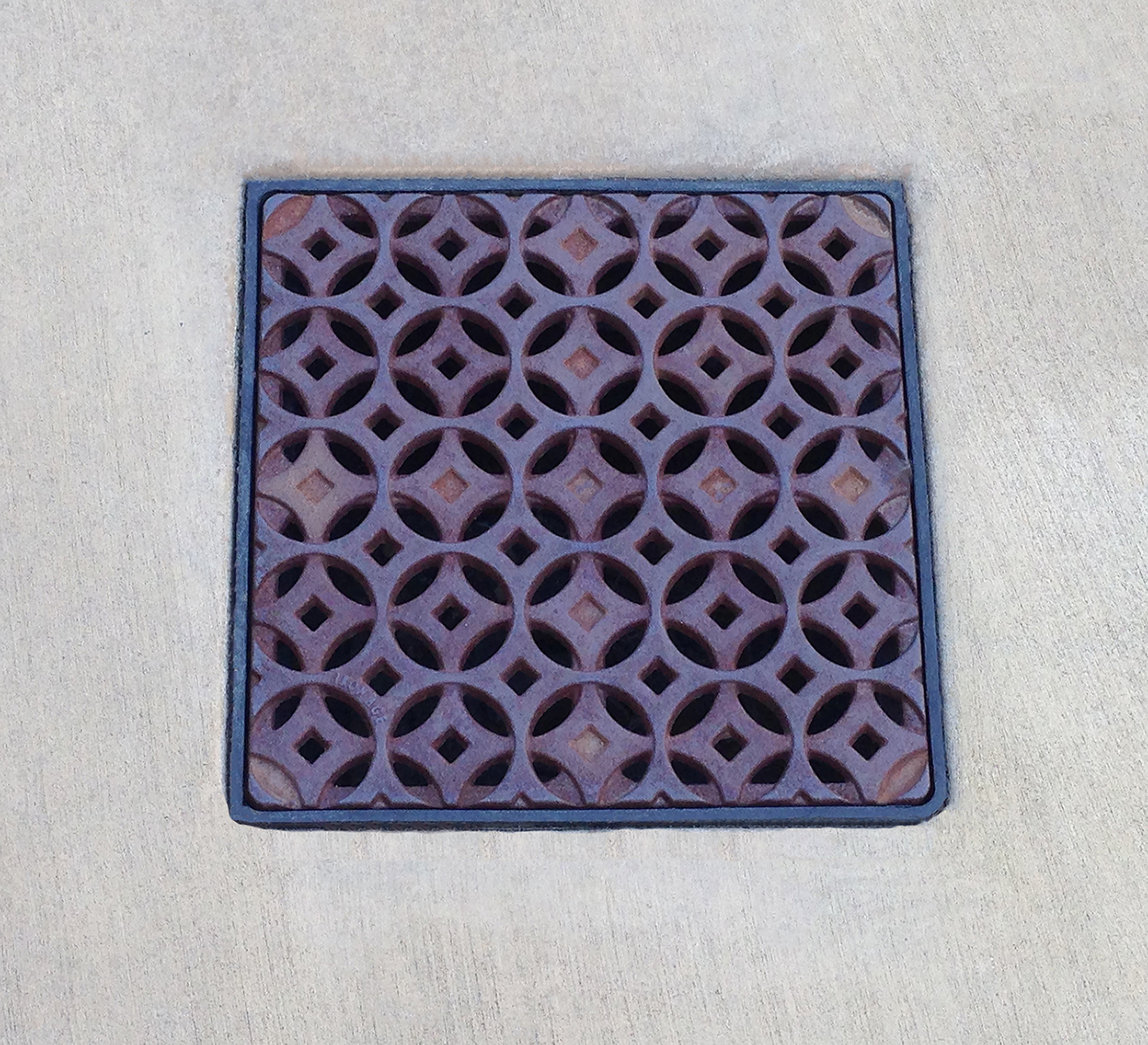

Interlaken 12″ x 12″ catch basin grate, raw cast ductile iron.

Download photo

Interlaken 12″ x 12″ catch basin grate, raw cast bronze.

Download photo

Interlaken 12″ x 12″ catch basin grate, raw cast ductile iron.

Download photo

Cast iron catch basin grate in decorative Interlaken pattern by Iron Age Designs.

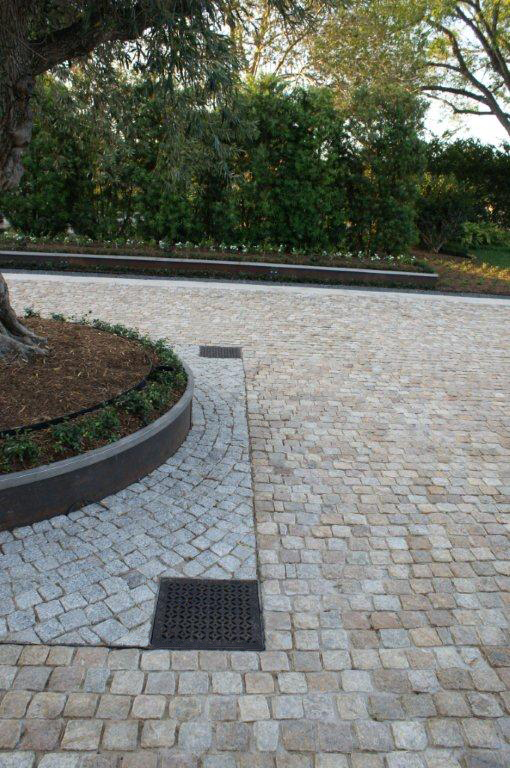

Interlaken 18″ x 18″ catch basin grate, raw cast ductile iron. PROJECT: Graceland Cemetery. LOCATION: Chicago, IL.

Download photo

Interlaken 18″ x 18″ catch basin grate, cast iron with baked-on-oil finish.

Download photo

Interlaken 18″ x 18″ catch basin grate, cast iron with baked-on-oil finish.

Download photo

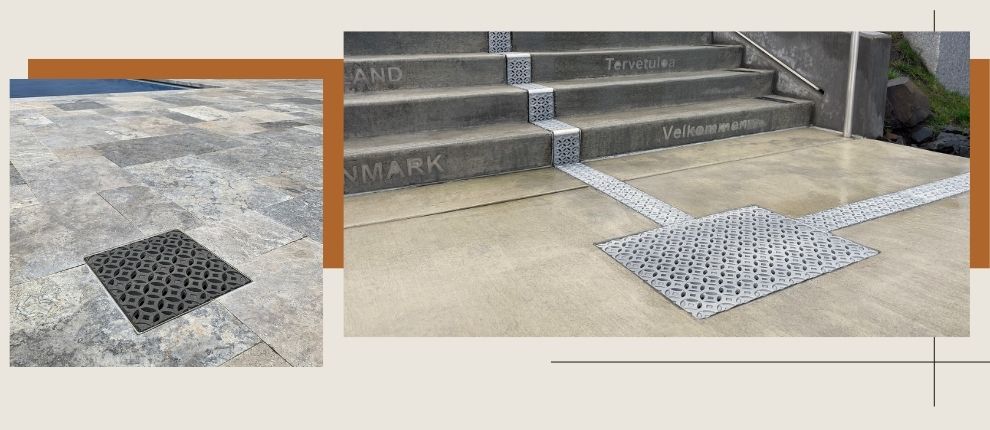

Iron Age Designs Cast Aluminum Decorative Trench Grates and Catch Basin Grate

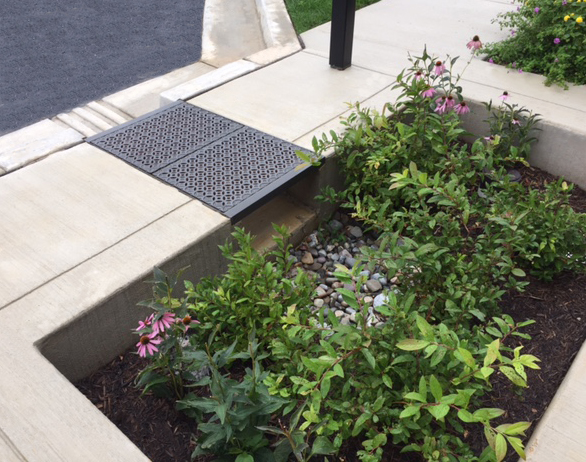

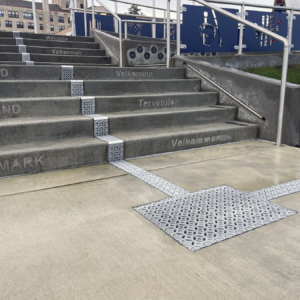

Interlaken 18″ x 24″ heel proof trench grate, raw cast aluminum. DESIGN: The West Studio. INSTALLATION: Rickenbach Construction, Inc. PROJECT: Astoria Nordic Heritage Park. LOCATION: Astoria, OR.

Download photo

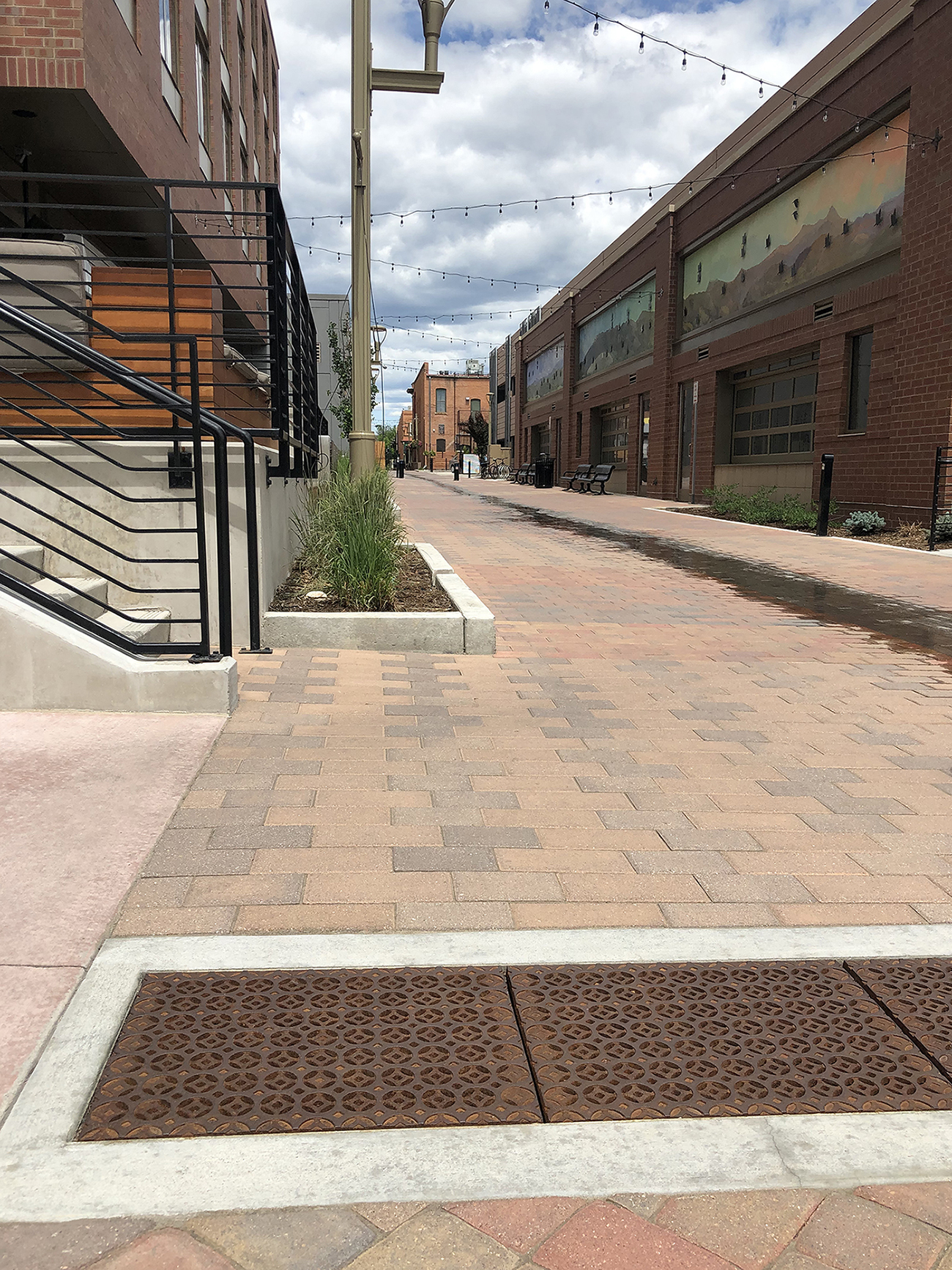

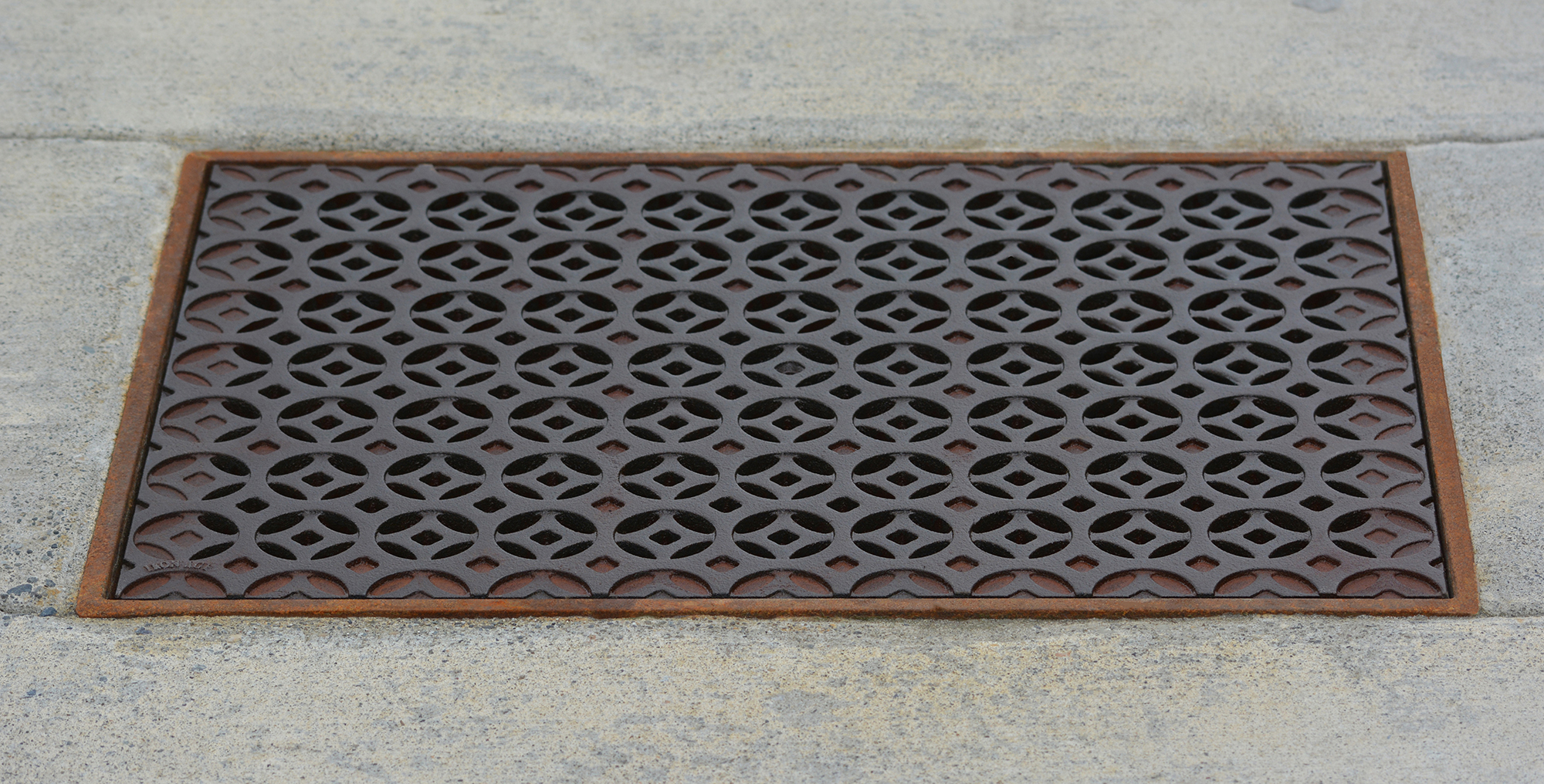

Interlaken 18″ x 24″ catch basin grates, raw cast iron. PROJECT: Elizabeth Hotel. LOCATION: Fort Collins, CO.

Download photo

Interlaken 18″ x 24″ (WSDOT “Type 1”) catch basin grate, cast iron with baked-on-oil finish.

Download photo

Interlaken 18″ x 24″ catch basin grate/curb inlet, cast iron with black powder coat finish. Project Location: Bethesda, MD.

Download photo

Interlaken 18″ x 24″ catch basin grate/curb inlet, cast iron with black powder coat finish. Project Location: Bethesda, MD

Download photo

24" Dia. catch basin grate in cast bronze with decorative Interlaken pattern

Interlaken 24″ dia. heavy-duty catch basin grate. Raw cast bronze. Residential installation, designed by LDW 2.0. LOCATION: Gull Lake, MI.

Download photo

Decorative cast iron catch basin grate surrounded by pavers

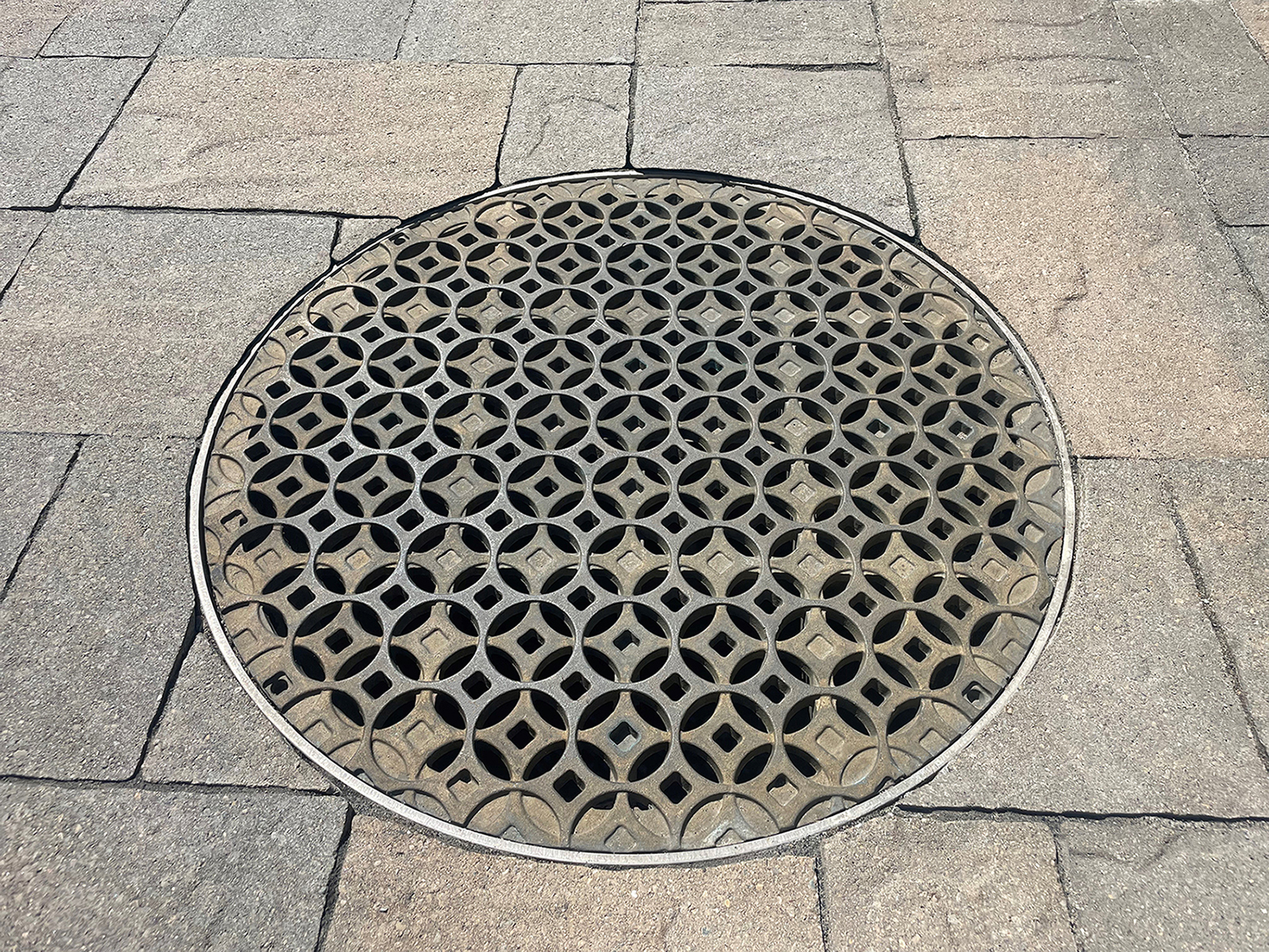

Interlaken 24″ dia. heavy-duty catch basin grate. Raw cast iron. Residential patio installation.

Download photo

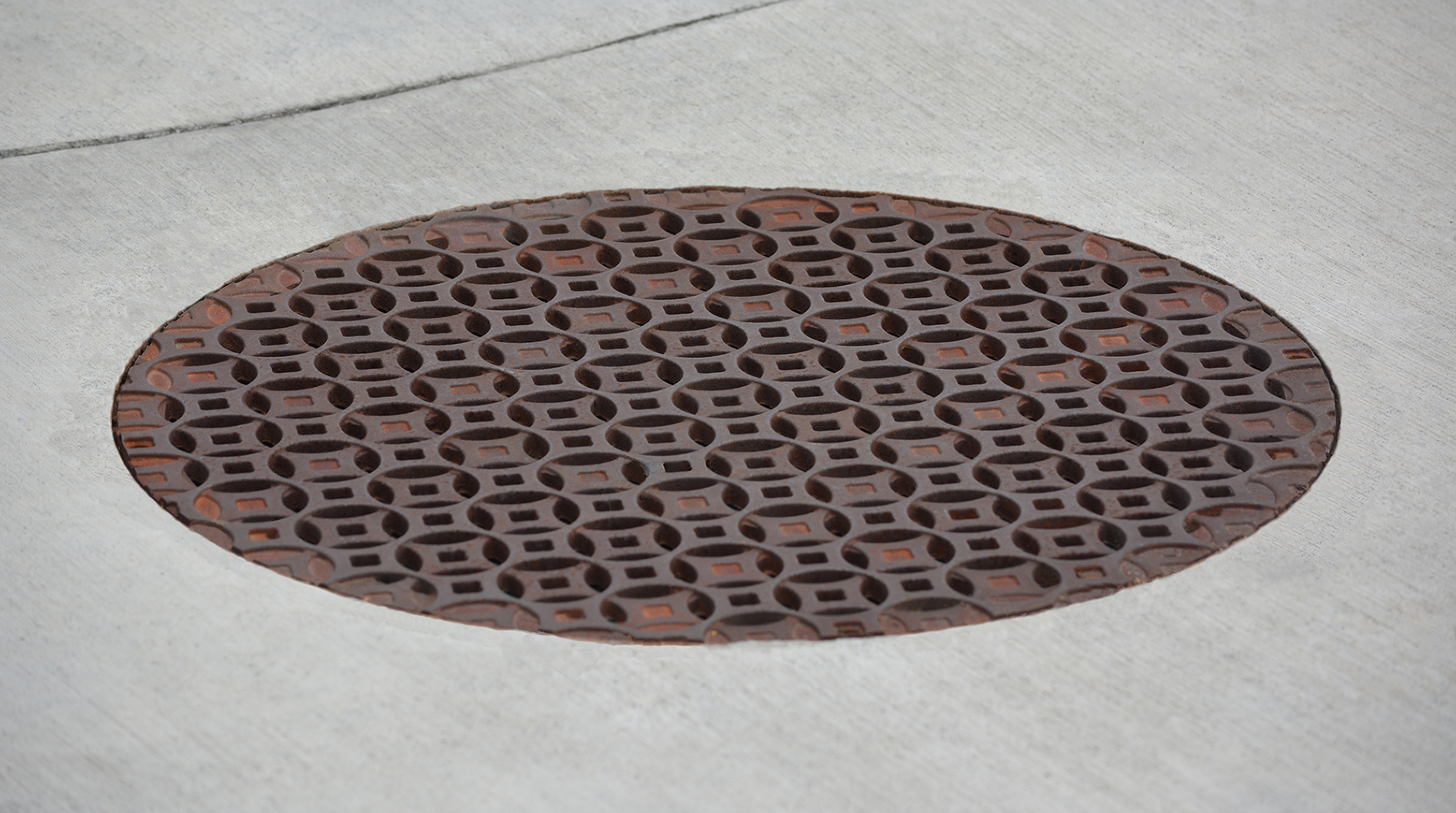

Interlaken 24″ Dia. catch basin grate, raw cast iron.

Download photo

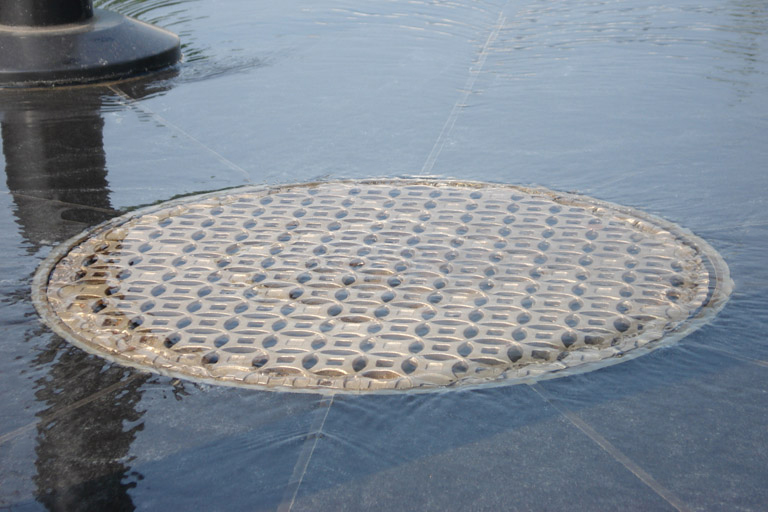

Interlaken 24″ Dia. catch basin grate, raw cast bronze. DESIGN: Lardner/Klein Landscape Architects. PROJECT: Vienna Town Green. LOCATION: Vienna, VA.

Download photo

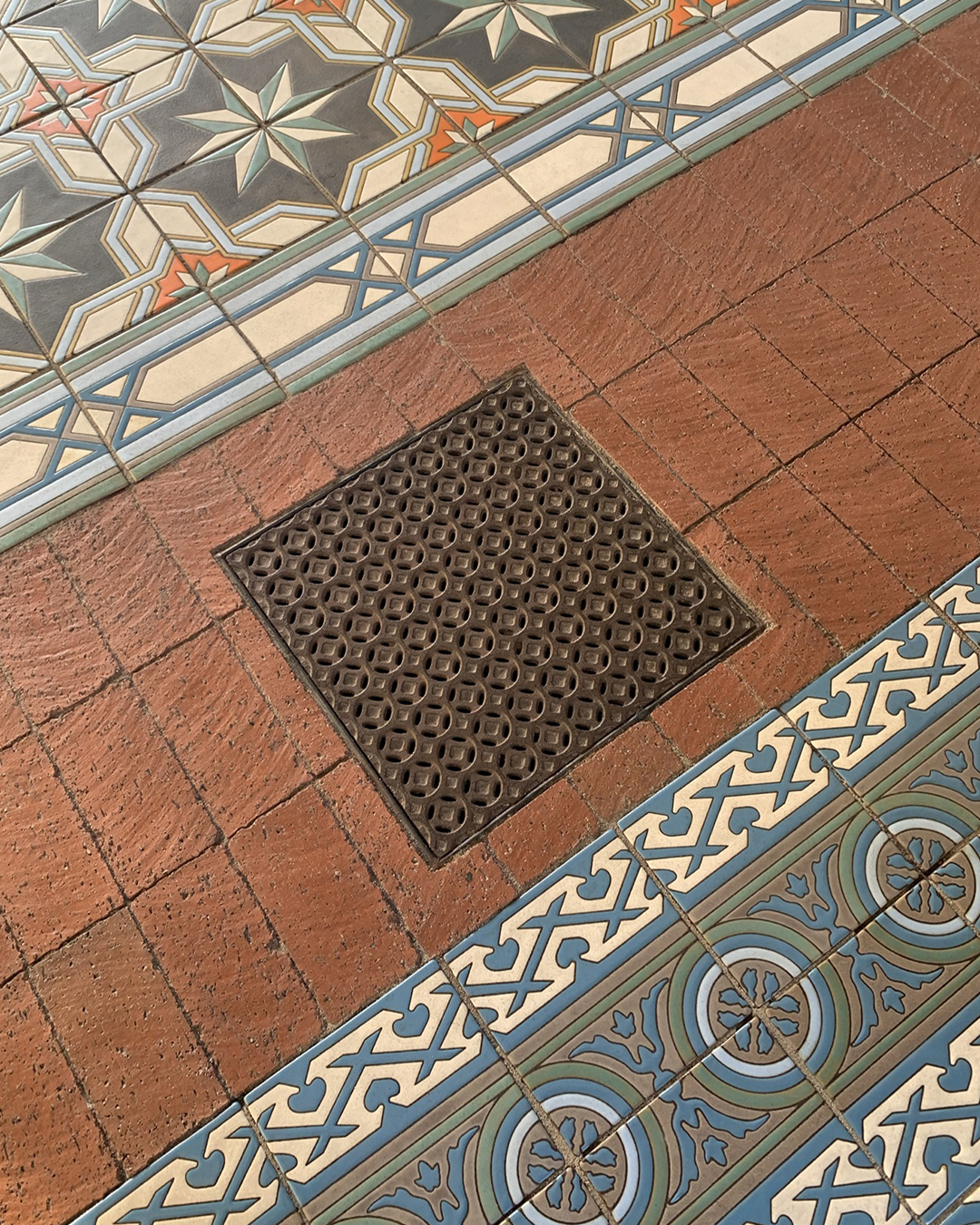

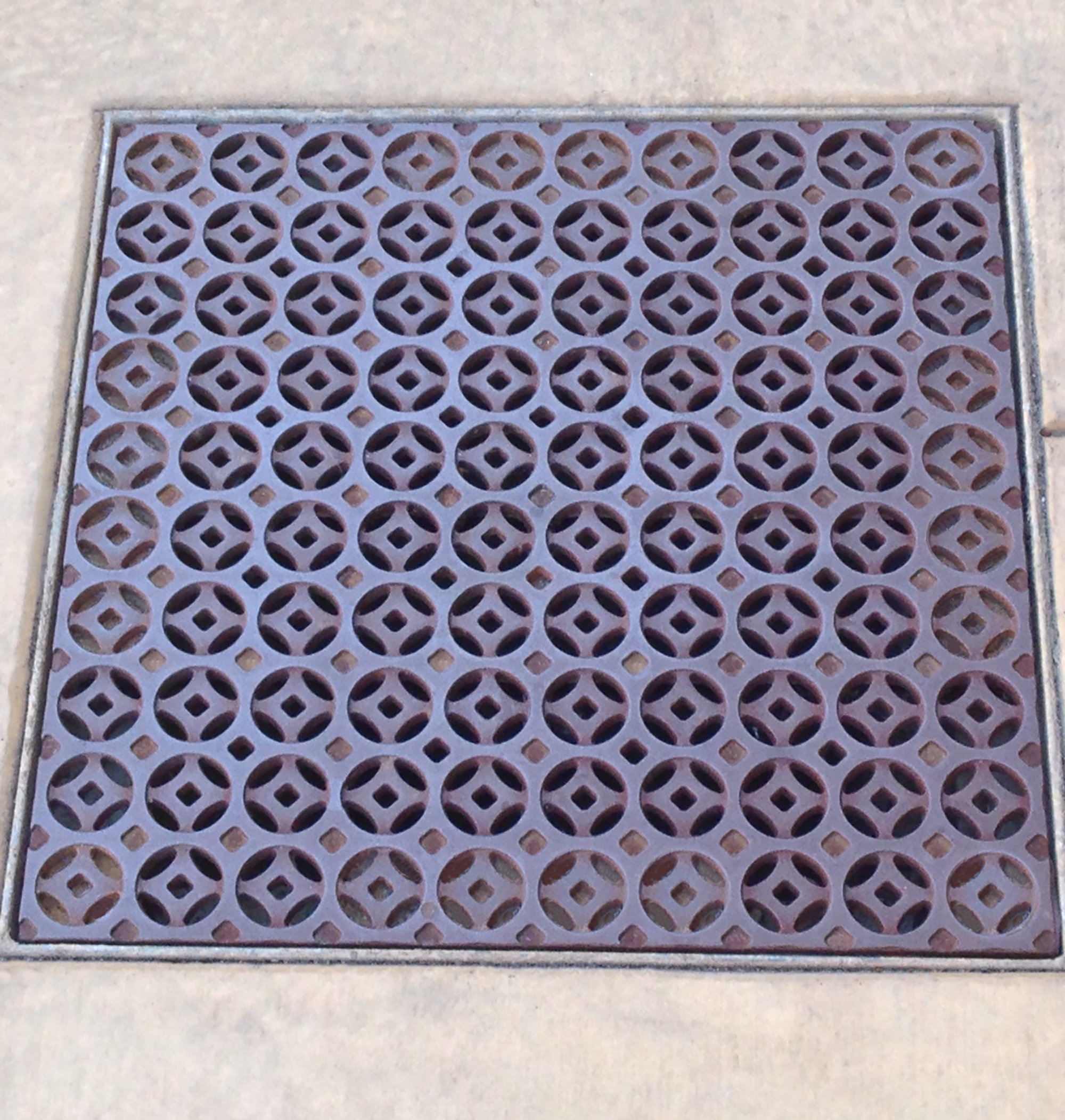

Interlaken 24″ x 24″ catch basin grate, cast iron with baked-on-oil finish. DESIGN: GSM Landscape Architects, Inc. PROJECT: Meritage and Vino Bello Resort. LOCATION: Napa, CA.

Download photo

Interlaken 24″ x 24″ catch basin grates, cast iron with black powder coat finish. INSTALLER: Brookstone Construction. PROJECT: St. Luke’s Methodist Church. LOCATION: Houston, TX.

Download photo

Interlaken 24″ x 24″ catch basin grate – pedestrian load only. Cast iron with baked-on-oil finish. DESIGN: Gensler / Los Angeles. PROJECT: Paseo Nuevo. LOCATION: Santa Barbara, CA.

Download photo

Interlaken 24″ x 24″ catch basin grate – pedestrian load only. Cast iron with baked-on-oil finish. DESIGN: Gensler / Los Angeles. PROJECT: Paseo Nuevo. LOCATION: Santa Barbara, CA.

Download photo
