Bullseye

Detailed Specifications:

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

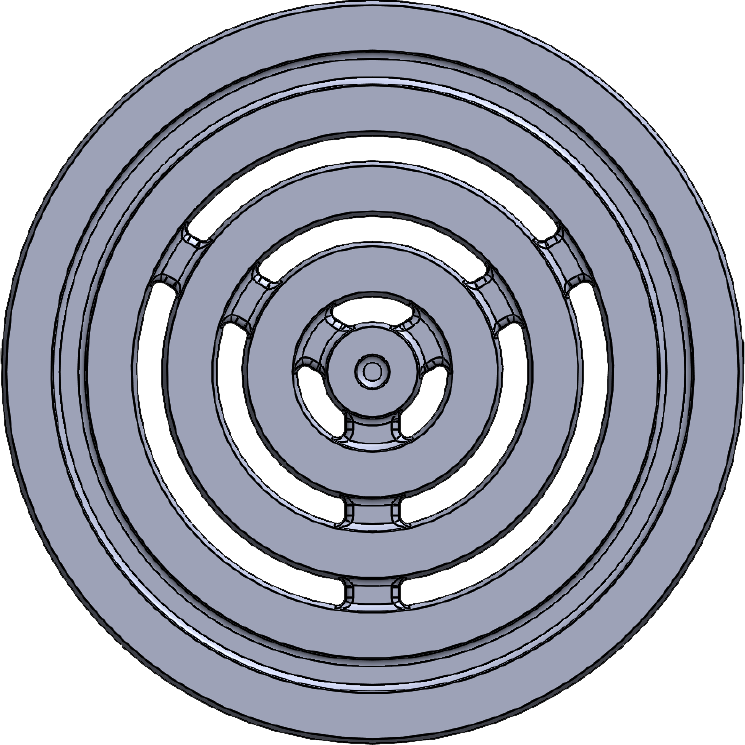

Name / Design	Bullseye 6" Dia. Heel Proof
Product ID	BEN6DiaI06HP
Dimensions	6.75" Dia.
Drain Manufacturer	NDS®
Fits	NDS® Spee-D® Basin
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	3
Free Drain Area	14.4%
Gallons Per Minute (GPM)	6.76
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 1-970-713

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec CAD Details Spec
Name / Design	Bullseye 12" Sq. Heel Proof
Product ID	VN12-12 I12HP
Dimensions	11.69" x 11.69" x 1.13"
Drain Manufacturer	NDS®
Fits	NDS® 1200 Series
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	14.19
Free Drain Area	17.13%
Gallons Per Minute (GPM)	30.66
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze
Copyright Registration No.	VA 1-970-721

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec

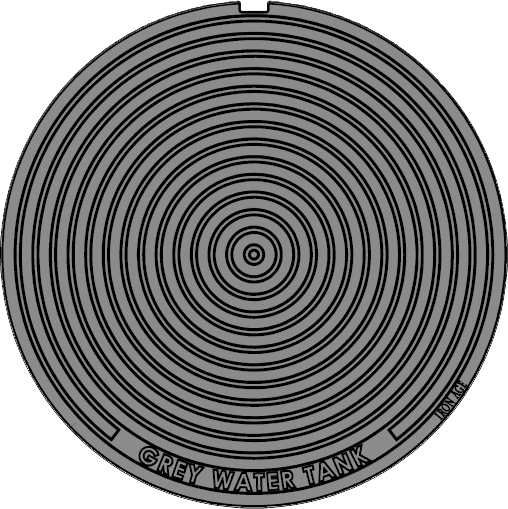

Name / Design	Bullseye 38" Dia. Manhole Cover for Grey Water
Product ID	BED38DiaI36MH
Dimensions	37.75" Dia x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Standard Finish	Raw
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	192.45
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

		Spec Sheet CSI 3-Part Spec CSI 3-Part Spec
Name / Design	Bullseye 38" Dia. Manhole Cover for Treated Water
Product ID	BED38DiaI36MH
Dimensions	37.75" Dia x 1.25"
Fits	Iron Age Custom Frame
Material	Cast Ductile Iron
Optional Finish	Baked On Oil Finish Powder Coat
Weight lb(s)	192.45
Recycled Content	80%
ADA Compliant	Yes
Optional Material Upgrades	Cast Aluminum Cast Bronze

Photo Gallery:

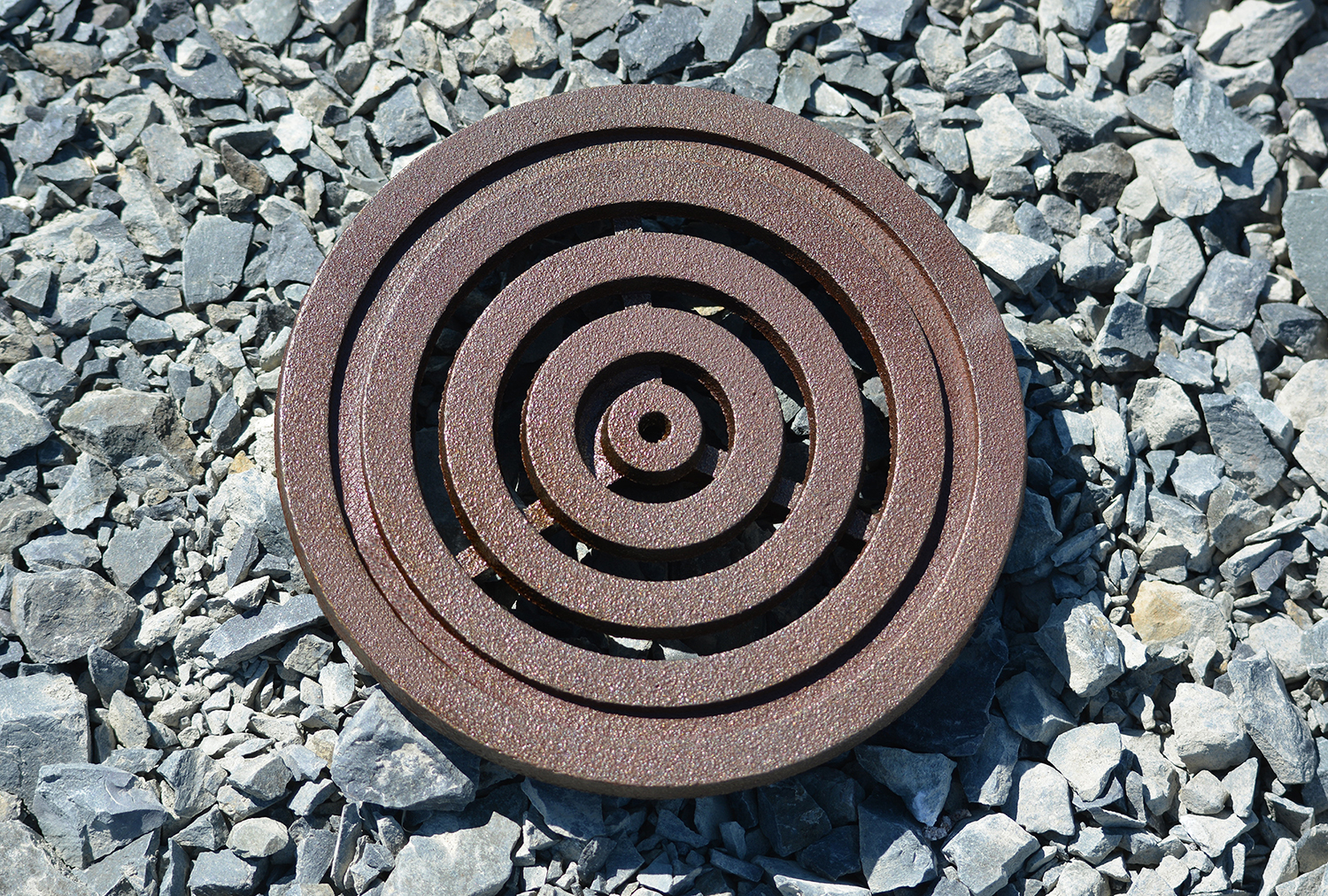

Bullseye 6″ Dia. catch basin grate, cast ductile iron with our baked on oil finish.

Download photo

Bullseye 6″ Dia. catch basin grate, cast ductile iron with our baked on oil finish.

Download photo

Bullseye 6″ Dia. catch basin grate, cast ductile iron with our baked on oil finish.

Download photo

Bullseye 6″ Dia. catch basin grate, cast ductile iron with our baked on oil finish.

Download photo

Bullseye 12″ Sq. catch basin grate, cast ductile iron with our baked on oil finish

Download photo

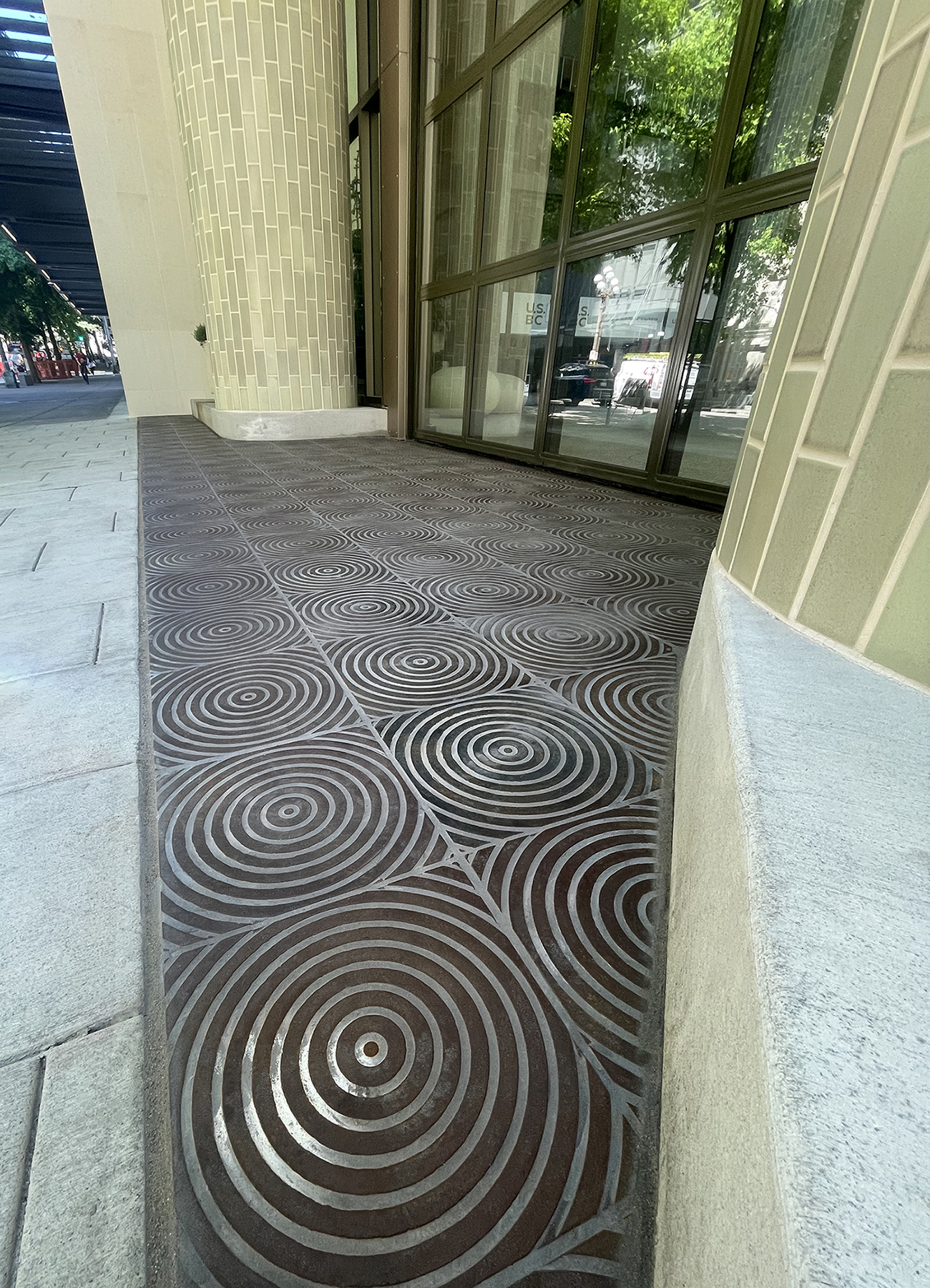

Bullseye 12″ x 12″ catch basin grates, cast ductile iron with baked-on-oil finish, arrayed as an entry walk-off mat. DESIGN: SkB Architects. PROJECT: US Bank Center. LOCATION: Seattle, WA.

Download photo

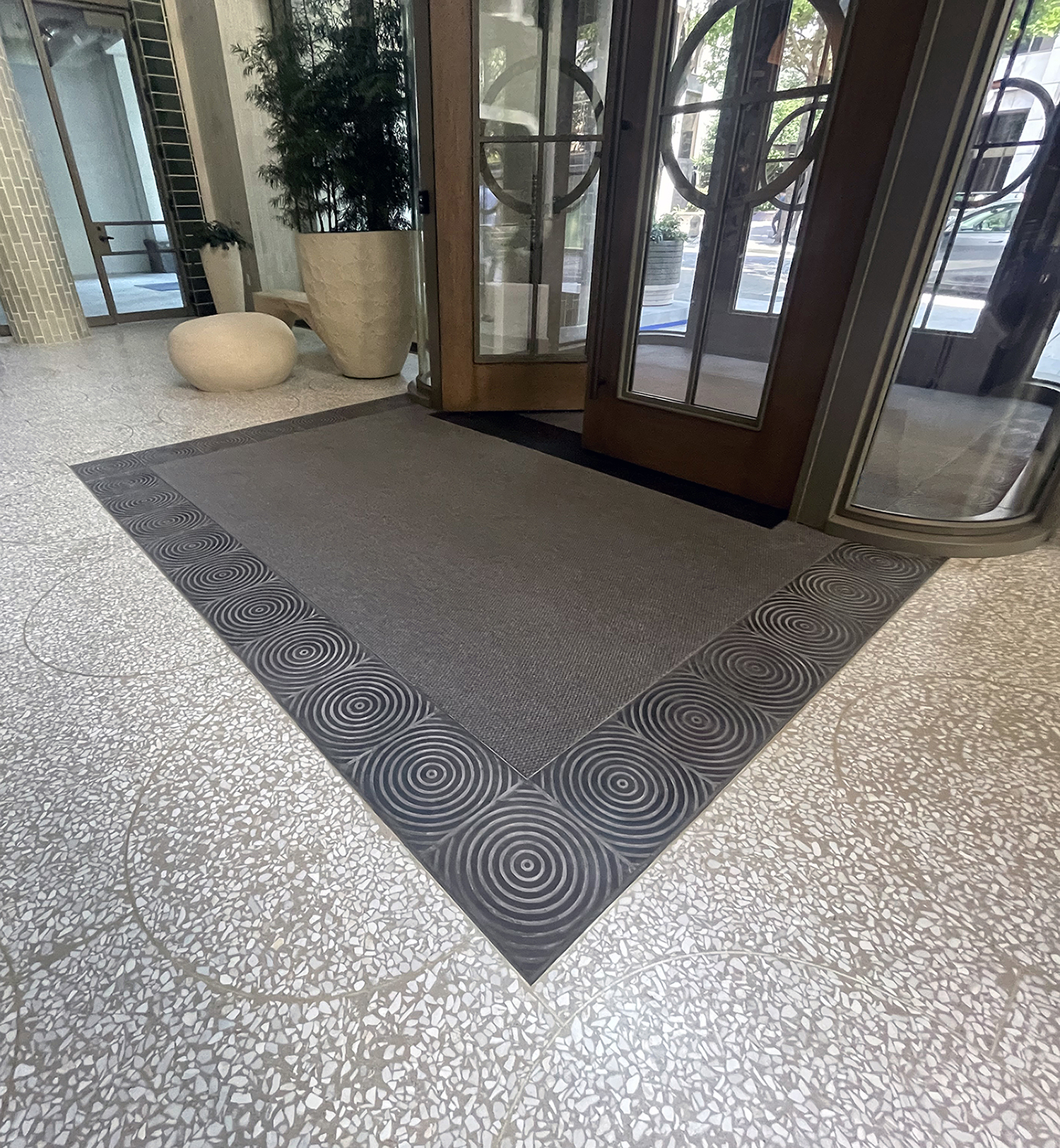

Bullseye 12″ x 12″ catch basin grates, cast ductile iron with baked-on-oil finish, arrayed as an entry walk-off mat. DESIGN: SkB Architects. PROJECT: US Bank Center. LOCATION: Seattle, WA.

Download photo

Bullseye 12″ x 12″ catch basin grates, cast ductile iron with baked-on-oil finish, arrayed as an entry walk-off mat. DESIGN: SkB Architects. PROJECT: US Bank Center. LOCATION: Seattle, WA.

Download photo
