Argo

Description:

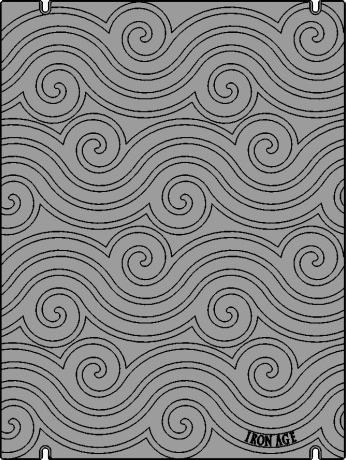

We designed a cast iron curb inlet to interface with our standard steel trench frames. The frames cut across the sidewalk, while our Argo grates cover the open runnel where water flows from the street into a bioswale on the other side. An optional receptacle end prevents litter from entering the retention pit. Click here for more information.

Detailed Specifications:

Name / Design Argo Heel Proof 12" Curb Inlet System
Dimensions 12" wide
Fits Iron Age Custom Frame
Material Cast Iron
Standard Finish Raw
Recycled Content 80%
ADA Compliant Yes
Name / Design Argo Solid 12" Curb Inlet System
Dimensions 12" wide
Fits Iron Age Custom Frame
Material Cast Ductile Iron
Recycled Content 80%
ADA Compliant Yes

Standard Finish

For details, see Materials and Finish Options under Resources.

Optional Finish

For details, see Materials and Finish Options under Resources.

Optional Material Upgrades

Call for pricing and lead time.
