Anise

Description:

Our Anise design was inspired not only by the lovely shape of the Star Anise spice, but also its ability to transform blandness into something infinitely more appealing.



Size Options:
Similar Products:

Detailed Specifications:

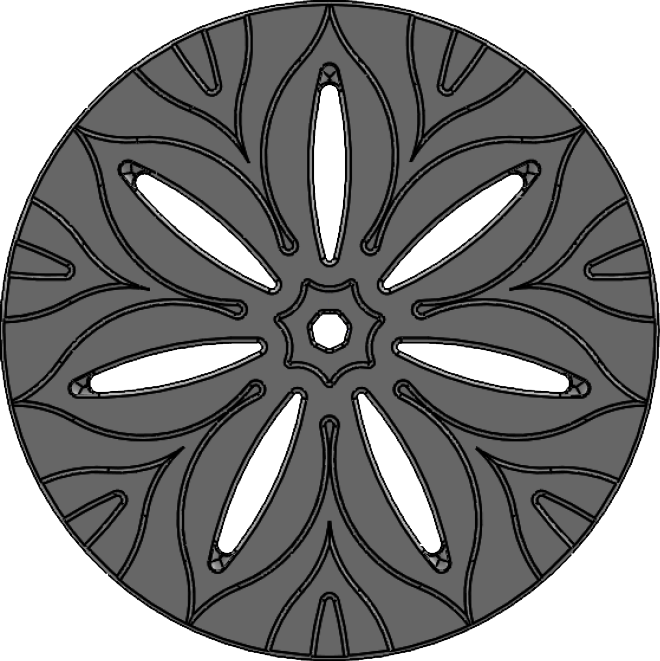

Name / Design Anise 4" Dia.
Product ID ANX4DiaI99PG
Dimensions 4.52" Dia.
Fits 3" & 4" SDR/PVC Pipe
Material Cast Ductile Iron
Standard Finish Baked On Oil Finish
Optional Finish
Powder Coat
Weight lb(s) 1
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. VA 1-964-889

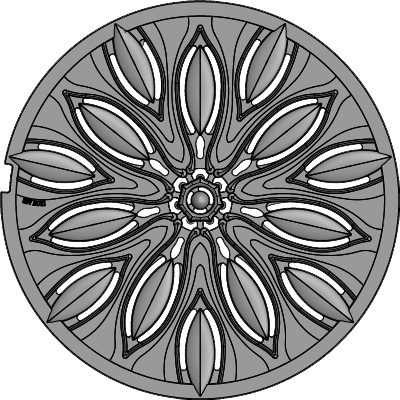

Name / Design Anise 24" Dia. PEDESTRIAN LOAD ONLY
Product ID AND24diaI51
Dimensions 23.88" Dia. x 1"
Fits D+L Foundry™ A-1043
Deeter Foundry™ 1256
Material Cast Ductile Iron
Standard Finish Raw
Optional Finish
Baked On Oil Finish
Powder Coat
Weight lb(s) 61.92
Free Drain Area 12.73%
Gallons Per Minute (GPM) 74.67
Recycled Content 80%
ADA Compliant Yes
Optional Material Upgrades
Cast Aluminum
Cast Bronze
Copyright Registration No. Pending

Photo Gallery:

Decorative cast bronze shower drain grate featuring Anise star pattern.

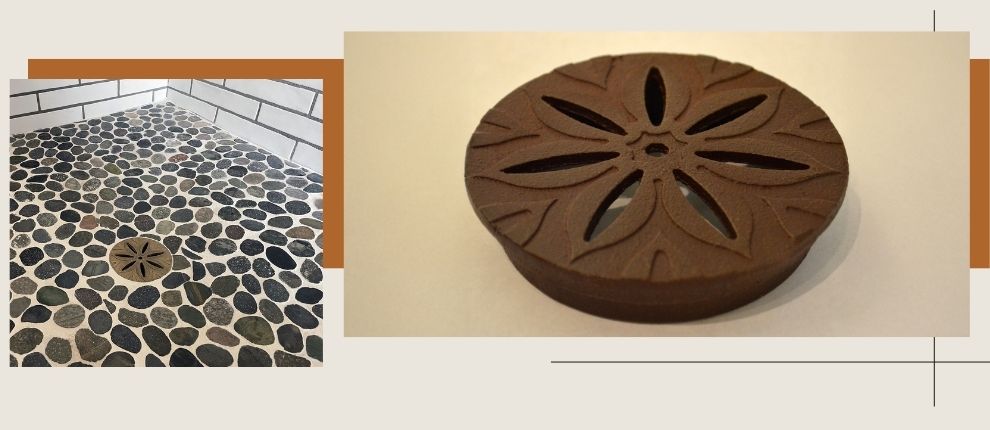

Anise 4″ Dia. pipe grate, raw cast bronze, shown installed as a residential shower drain. LOCATION: Roatan, Honduras.


Download photo
Decorative cast bronze shower drain grate featuring Anise star pattern.

Anise 4″ Dia. pipe grate, raw cast bronze, shown installed as a residential shower drain. LOCATION: Roatan, Honduras.


Download photo
anise-4-dia-hp-e

Anise 4″ Dia, pipe grate, raw ductile iron.


Download photo
anise-4-dia-hp-2-e

Anise 4″ Dia, pipe grate, raw ductile iron with our baked on oil finish.


Download photo
anise-4-dia-hp-3-e

Anise 4″ Dia, pipe grate, raw ductile iron with our baked on oil finish.


Download photo
anise-4-dia-hp-4-e

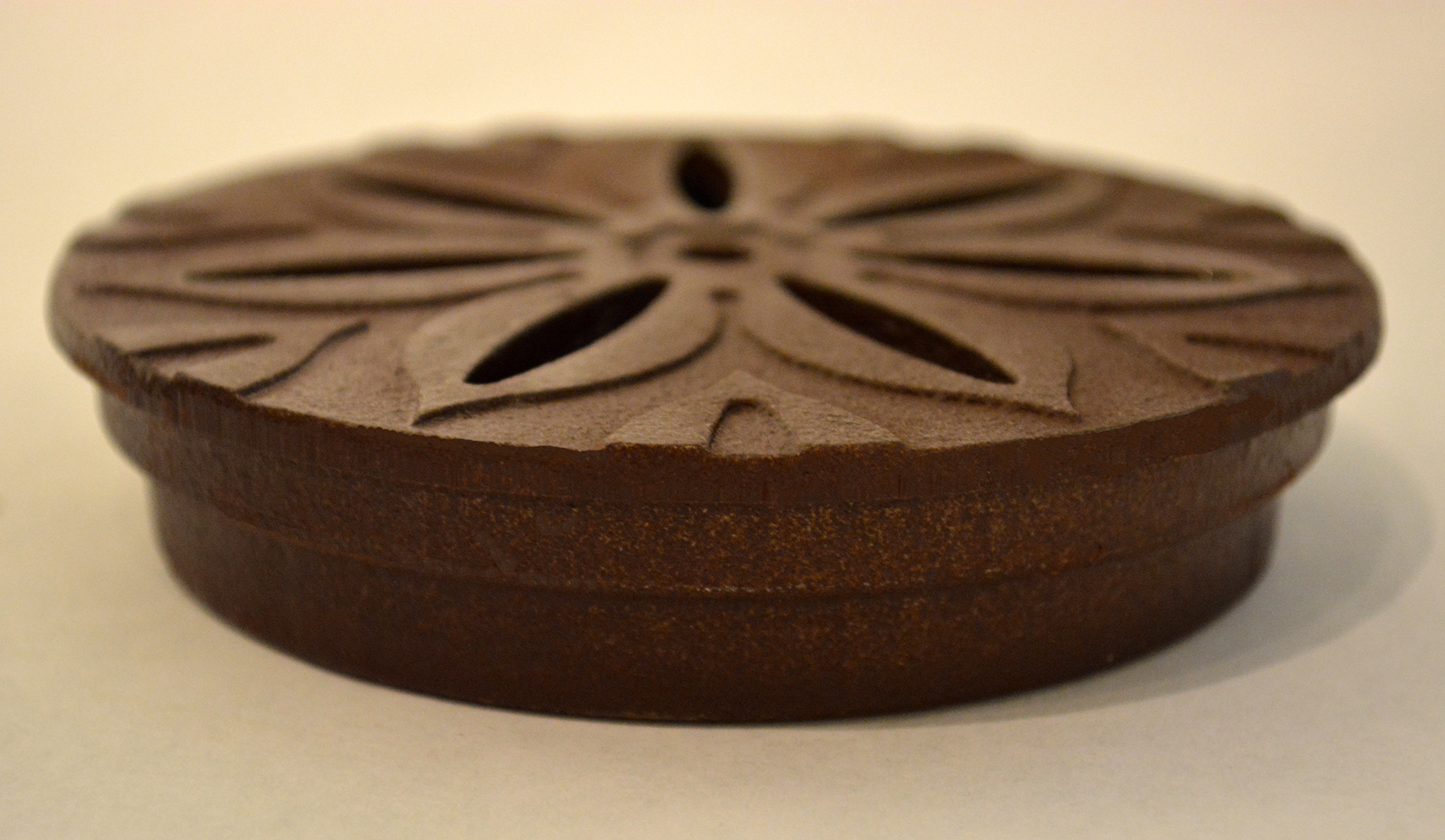

Anise 4″ Dia, pipe grate, raw ductile iron with our baked on oil finish.


Download photo
Anise 4 Dia HP (5) E

Anise 4″ Dia, pipe grate, raw ductile iron with our baked on oil finish.


Download photo
anise-24-dia-wo-e

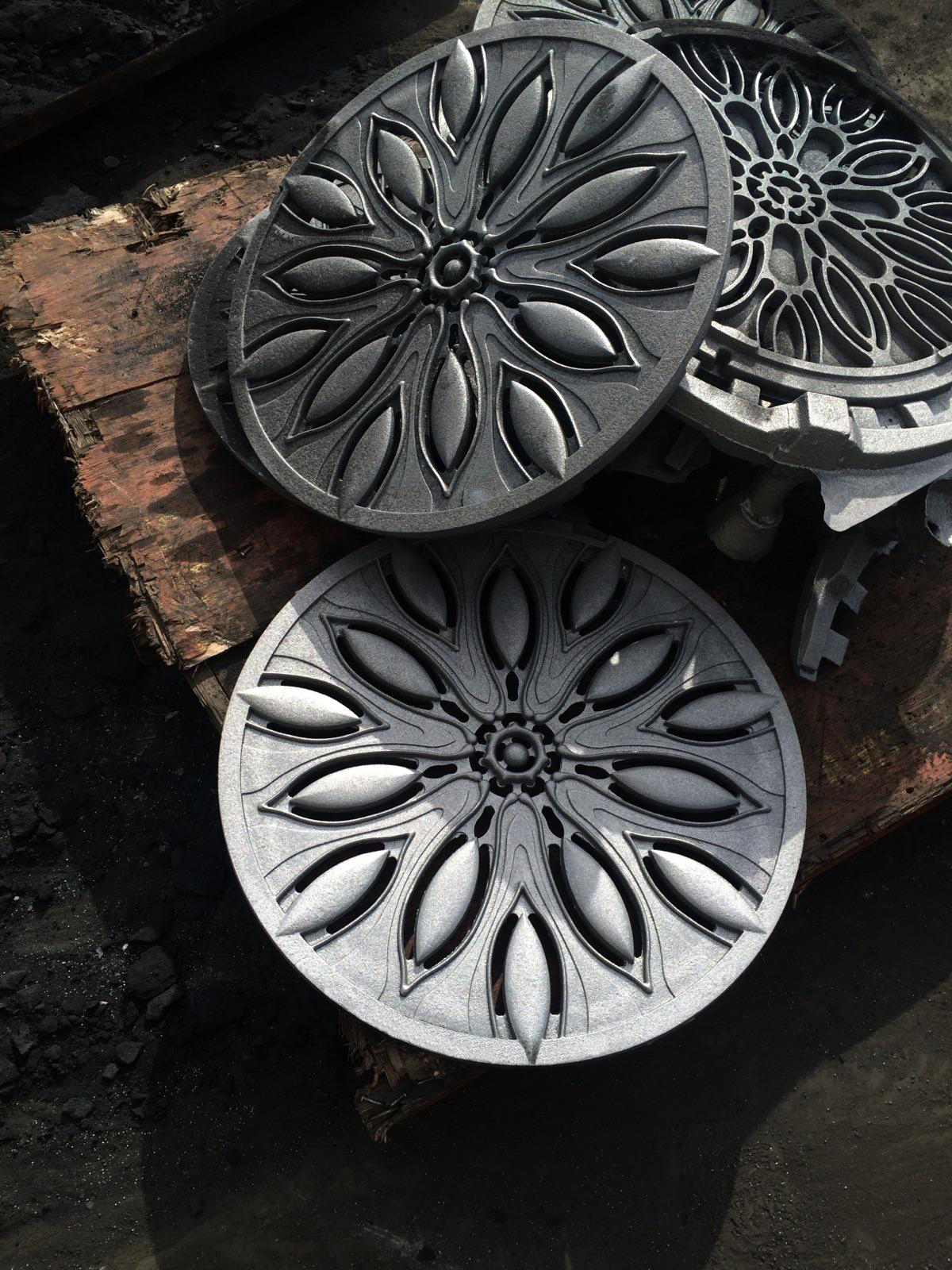

Anise 24″ Dia. catch basin, raw cast ductile iron.


Download photo
